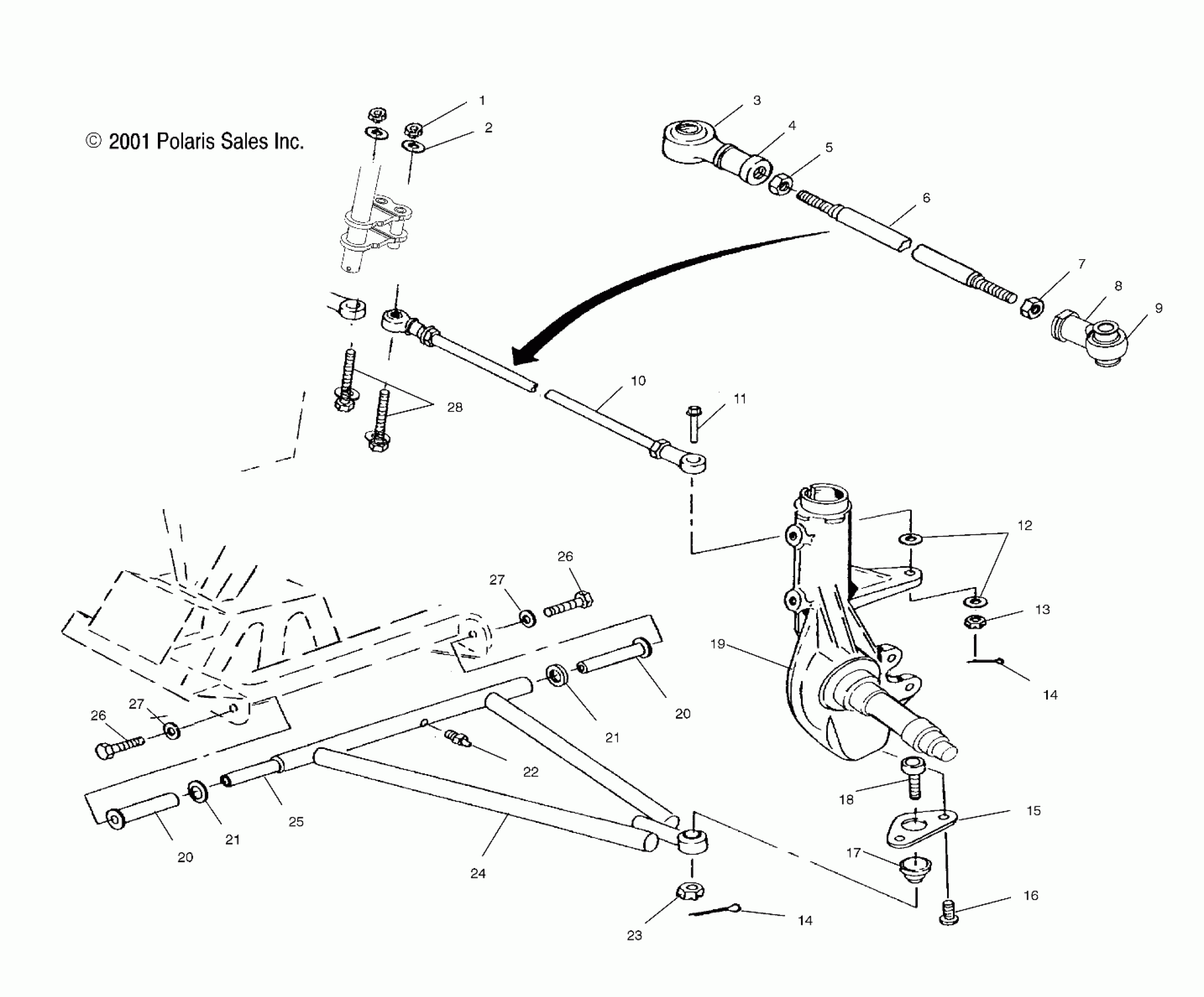

Polaris SCRAMBLER 400 2X4 - A02BA38CA A-ARM/STRUT MOUNTING - A02BA38CA (4969936993B03) Diagram

#

Description
Price

1

Nut, FLEXLOC

7542403

Unavailable

2

Washer

7558403

$4.76

3

Boot, Seal, Rod End

5411291

$11.32

4

Rod End, RH

7061034

$60.70

5

Nut

7542711

$2.38

6

Tie Rod

5020927

$44.51

7

Nut, Jam, LH

7547028

$2.38

8

Rod End, LH

7061054

$56.65

9

Boot, Seal, Rod End

5411920

$11.32

10

Asm., Tie Rod

1820806

$109.27

11

Screw

7517909

$5.56

12

Washer, Flat

7556099

$1.59

13

Nut, Lock

7547177

$0.79

14

Pin, Cotter

7661203

$1.19

14

Pin, Cotter

7661203

$1.19

15

Bracket, Joint, Ball

5240717

Unavailable

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

17

Boot, Rubber

5410548

$4.84

18

Joint, Ball

7080927

$28.32

19

SUPPORT, STRUT AND SPINDLE [SEE STRUT PG. A14, REF. 17]

----

Unavailable

20

Bushing, A-Arm, Long

5434551

$5.56

20

Bushing, A-Arm, Long

5434551

$5.56

21

Bushing

5020677

$10.32

21

Bushing

5020677

$10.32

22

Fitting, Lubrication

7080433

$1.19

23

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

24

Kit, A-Frame, LH

2201601

$149.99

24

Kit, A-Frame, RH

2201602

$149.99

25

Shaft, A-Arm

5020681

$33.24

26

Screw

7512492

$1.19

26

Screw

7512492

$1.19

27

Washer, Spring Lock

7552603

$0.79

27

Washer, Spring Lock

7552603

$0.79

28

Bolt

7518033

Unavailable
