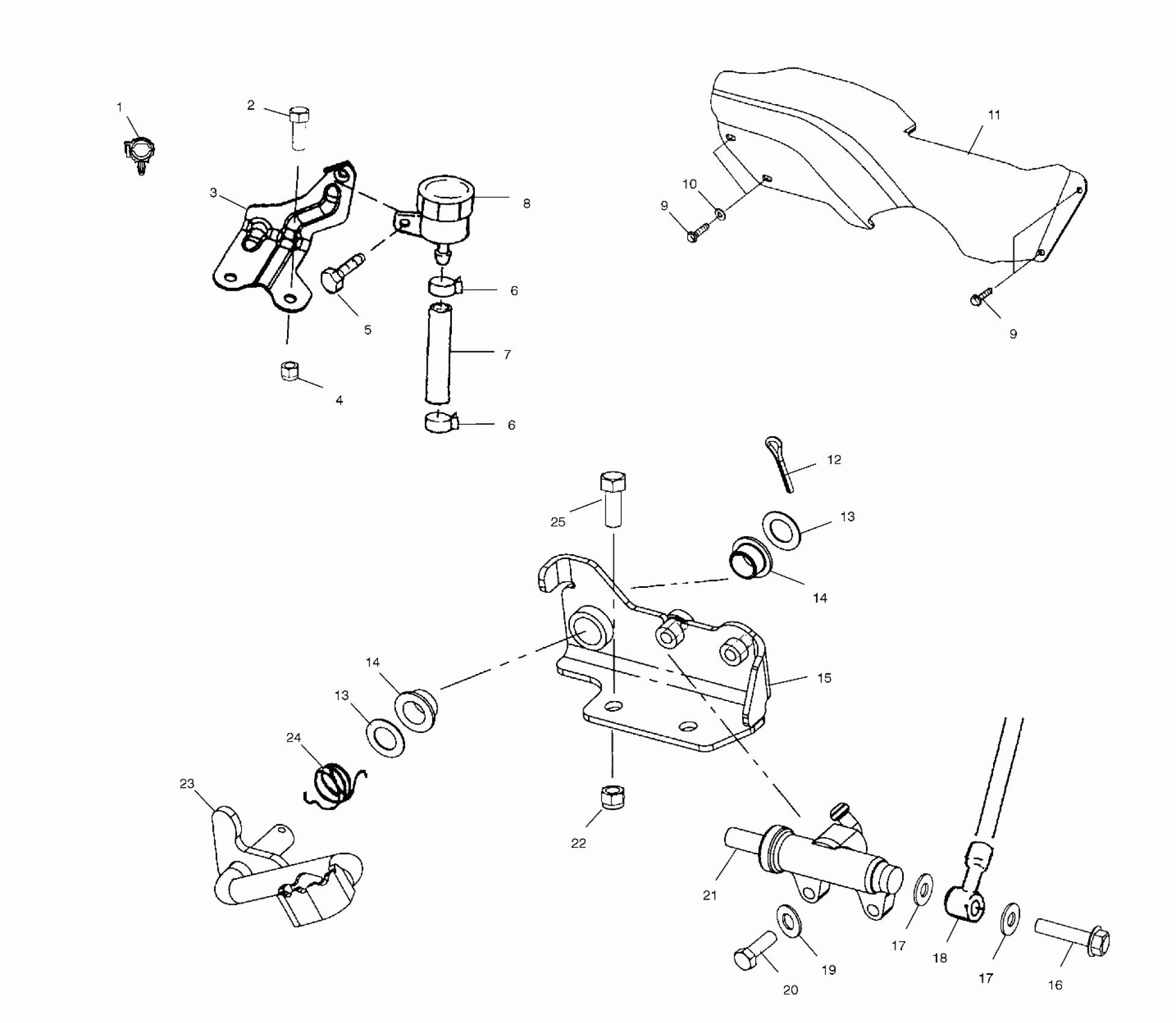

Polaris SCRAMBLER 400 2X4 - A01BA38CA REAR BRAKE MASTER CYLINDER - A01BA38CA (4968366836B011) Diagram

#

Description
Price

1

CLIP,SILENCER,(10)

7670102

$2.39

2

SCREW(10)

7512113

$3.99

3

BRKT,RESERVOIR MNT,BLK

5244091-067

$5.75

4

NUT-LOCK(10)

7542122

$1.49

5

SCREW(10)

7512208

$3.99

6

HOSE CLAMP, RED

7080003

$1.49

6

HOSE CLAMP, RED

7080003

$1.49

7

HOSE,RESERVOIR,1/4ID,4.75 IN

1910404

Unavailable

8

RESERVOIR ASM,R.BRAKE

1930854

$35.99

9

SCR-1/4-20X3/4-TR/TX/TAP-M(10) (If built after 12/04/00)

7517916

$6.39

9

BOLT(10) (If built before 12/04/00)

7512232

$1.49

9

SCR-1/4-20X3/4-TR/TX/TAP-M(10) (If built after 12/04/00)

7517916

$6.39

9

BOLT(10) (If built before 12/04/00)

7512232

$1.49

10

WASHER(10) (If built before 12/04/00)

7558301

$1.49

11

GUARD,PROP SHAFT,SIDE

5433457

$95.19

12

COTTER PIN(10)

7661401

$1.49

13

WASHER(10)

7555919

$4.99

13

WASHER(10)

7555919

$4.99

14

BUSHING-PEDAL PIVOT

5431107

$8.79

14

BUSHING-PEDAL PIVOT

5431107

$8.79

15

MOUNT,BRAKE,CDS,BLK

1910375-067

Unavailable

16

BOLT,BANJO,BRAKE

1930674

Unavailable

17

Seal

5410988

$4.84

17

Seal

5410988

$4.84

18

Line, Foot Brake, Rear (See Rear Caliper Mounting Pg. B10, Ref. 6)

-------

Unavailable

19

LOCK WASHER(10)

7552801

$1.59

20

SCREW(10)

7515179

$2.39

21

BRAKE MSTR CYL,FOOT,BANJO

1910311

$166.01

22

NUT-5/16-18 NYLOK-Y

7542324

$1.49

23

BRAKE ROD,CDS,GEN 3,BLK

1910377-067

Unavailable

24

SPRING-TORSION,BRAKE

7041750

$8.79

25

BOLT(10)

7515321

$1.49
