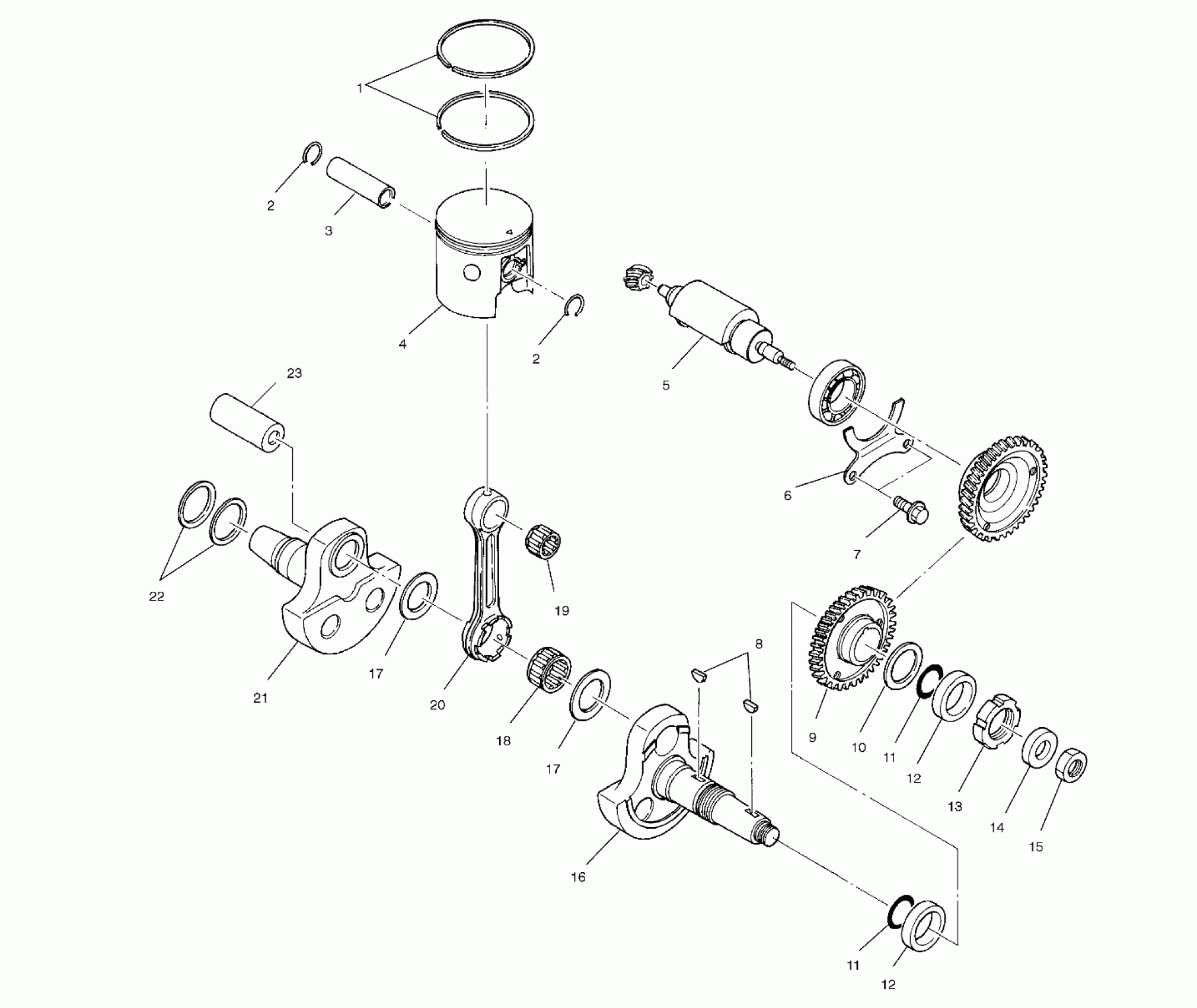

Polaris SCRAMBLER 400 2X4 - A01BA38CA PISTON and CRANKSHAFT - A01BA38CA (4968366836C010) Diagram

#

Description
Price

1

RING,PISTON,(.50MM O/S) (0.50mm/.020 O/S)

3084739

$23.99

1

RING,PISTON,(.25MM O/S) * (0.25mm/.010 O/S)

3084738

$31.99

1

RING,PISTON,STD. (Std.)

3084737

$28.56

2

CLIP,(10)

3084167

$6.39

2

CLIP,(10)

3084167

$6.39

3

Pin, Piston

3083838

$27.99

4

PISTON SET (STD) (Std.)

3085886

Unavailable

4

PISTON SET (0.25 O/S) (0.25mm/.010 O/S)

3085887

$111.99

4

PISTON SET (0.50 O/S) (0.50mm/.020 O/S)

3085888

$107.99

5

BALANCER Substituted by 3087042

3084172

Unavailable

6

Plate

3086768

$25.59

7

BOLT,FLANGE [No Longer Available]

3086769

Unavailable

8

KEY Substituted by 3081543

3080130

Unavailable

9

GEAR, DRIVE *

3084156

$110.32

10

WASHER-GUIDE

3086764

Unavailable

11

O RING

3084160

Unavailable

11

O RING

3084160

Unavailable

12

Collar

3086763

Unavailable

12

Collar

3086763

Unavailable

13

NUT,SLIT

3086762

Unavailable

14

WASHER

3086767

Unavailable

15

LOCKNUT

3083905

Unavailable

16

CRANKSHAFT #1,MAG SIDE

3084149

$216.99

16

CRANKSHAFT ASM. * (Incl. 16,17,18,20,21,23)

3084776

Unavailable

17

Spacer, Crank Pin

3084155

Unavailable

17

Spacer, Crank Pin

3084155

Unavailable

18

Bearing, Large End

3084154

Unavailable

19

Bearing, Small End

3084168

$31.99

20

Rod, Connecting

3084153

Unavailable

21

CRANKSHAFT #2,PTO SIDE

3084777

$149.99

22

SPACER-1 (0.2mm)

3086765

Unavailable

22

SPACER-2 (0.3mm)

3086766

Unavailable

23

PIN, CRANK #1

3084152

$78.39
