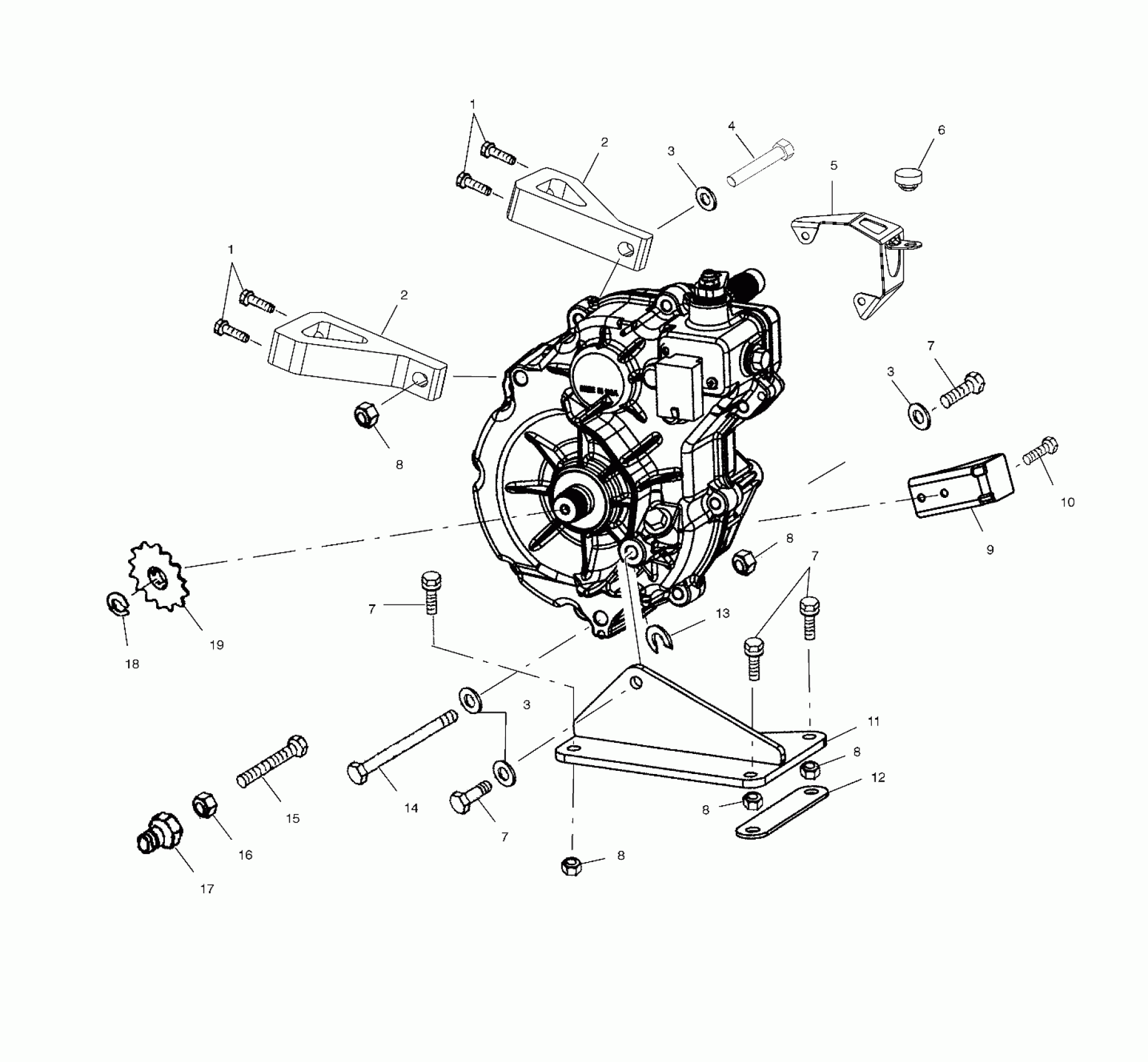

Polaris SCRAMBLER 400 2X4 - A01BA38CA GEARCASE MOUNTING - A01BA38CA (4968366836C009) Diagram

#

Description
Price

1

SCREW

7517632

$5.56

1

SCREW

7517632

$5.56

2

MOUNT-TRANSMISSION,REAR,MACH

5132046

$35.71

2

MOUNT-TRANSMISSION,REAR,MACH

5132046

$35.71

3

WASHER(10)

7555806

$0.79

3

WASHER(10)

7555806

$0.79

3

WASHER(10)

7555806

$0.79

4

Screw

7517642

$7.94

5

BRKT,CARB DAMPENER,SPORT,BLK

5243943-067

Unavailable

6

Bumper, Rubber

5410414

$3.17

7

SCREW(10)

7512492

$1.19

7

SCREW(10)

7512492

$1.19

7

SCREW(10)

7512492

$1.19

7

SCREW(10)

7512492

$1.19

8

NUT-3/8-16 FLG LOCK-Y

7547089

$4.76

8

NUT-3/8-16 FLG LOCK-Y

7547089

$4.76

8

NUT-3/8-16 FLG LOCK-Y

7547089

$4.76

8

NUT-3/8-16 FLG LOCK-Y

7547089

$4.76

8

NUT-3/8-16 FLG LOCK-Y

7547089

$4.76

9

BRKT,TORQUE STOP,BLK

1012785-067

$12.30

10

BOLT(10)

7512325

$2.38

11

MOUNT,TRANSMISSION,2X4,BLK

1012886-067

$31.75

12

SPACER-TRANSMISSION MNT,BLK

5243296-067

$4.06

13

SPACER,(10) (.020)

5210764

Unavailable

13

SHIM,.010,GEARCASE (.010)

5211065

Unavailable

13

SHIM,(.030) (.030)

5211517

Unavailable

14

SCREW

7517646

$7.14

15

Screw

7517631

$5.56

16

NUT(10)

7542440

$1.59

17

Plug, Drain (See Gearcase Pg. C8, Ref. 36)

----

Unavailable

18

RING,SNAP(10)

7710434

$3.97

19

SPKT,13T,SPLINED

3221041

$44.51
