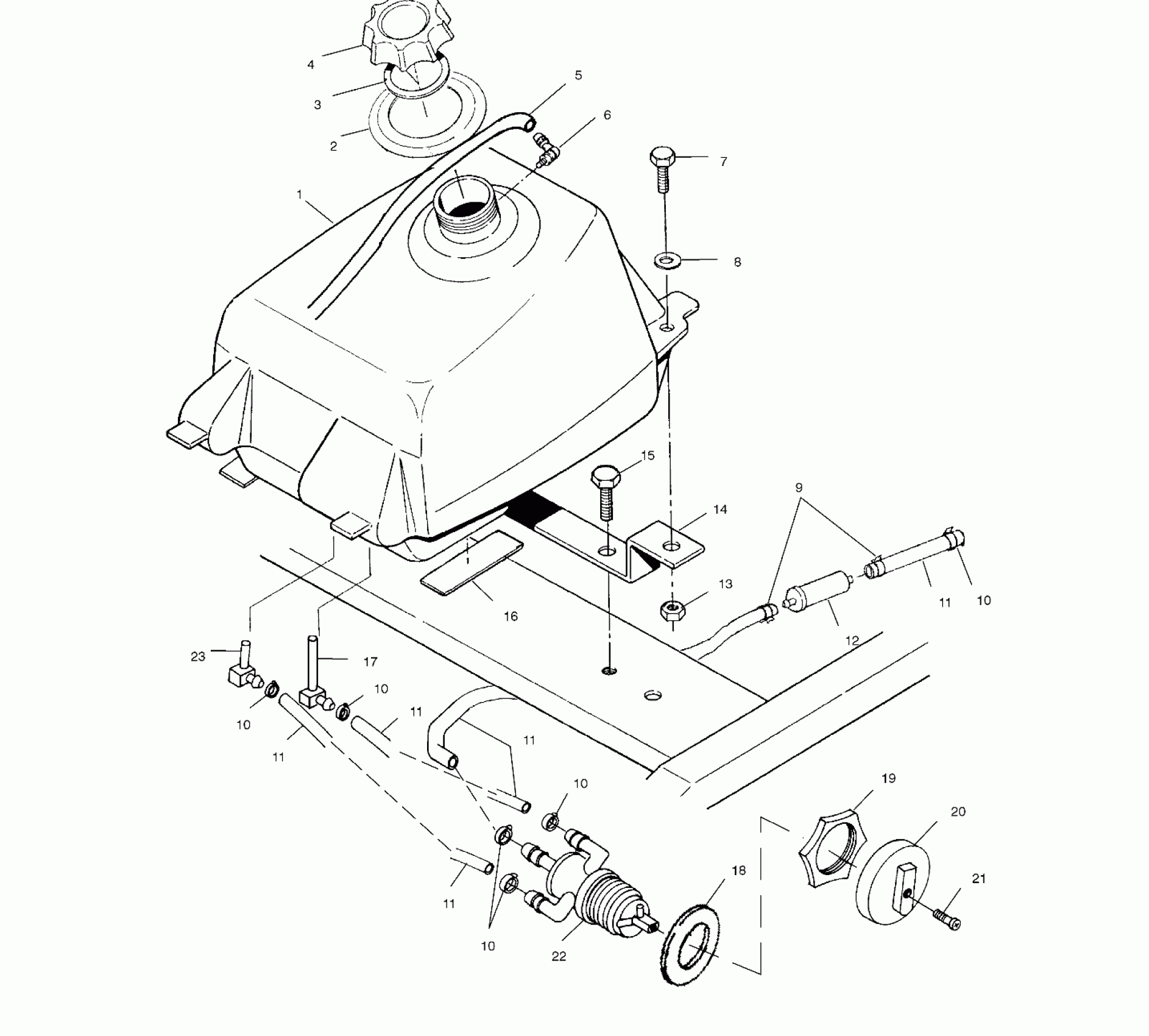

Polaris SCRAMBLER 400 2X4 - A01BA38CA FUEL TANK - A01BA38CA (4968366836A012) Diagram

#

Description
Price

1

FUELTANK,90-,PERPENDICULR (Incl. 6,17,23)

1240082

Unavailable

2

GROMMET,FUELTANK

5410842

Unavailable

3

GASKET-GAS CAP

5810144

$5.59

4

CAP,GAS TANK

5433687

$20.22

5

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

6

Vent, Tank

5431053

$19.99

7

SCREW(10)

7512310

$2.39

8

WASHER(10)

7555734

$1.49

9

CLAMP,SPRING,(10)

7080534

$1.59

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

11

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

12

FILTER FUEL,(10)

2530008

$4.84

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

15

SCREW(10)

7512208

$3.99

16

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

17

ELBOW, MAIN

7052147

Unavailable

18

SPACER,FUEL VALVE

5242977

Unavailable

19

NUT,FUELVALVE,ATV

5432733

Unavailable

20

KNOB,FUEL VALVE

5432559

$10.39

21

SCREW(10)

7517505

$1.59

22

VALVE,3-WAY,HORIZ PORTS

7052154

$39.99

23

FITTING,FUEL OUT,90DEG,RES,Z

7052148

Unavailable
