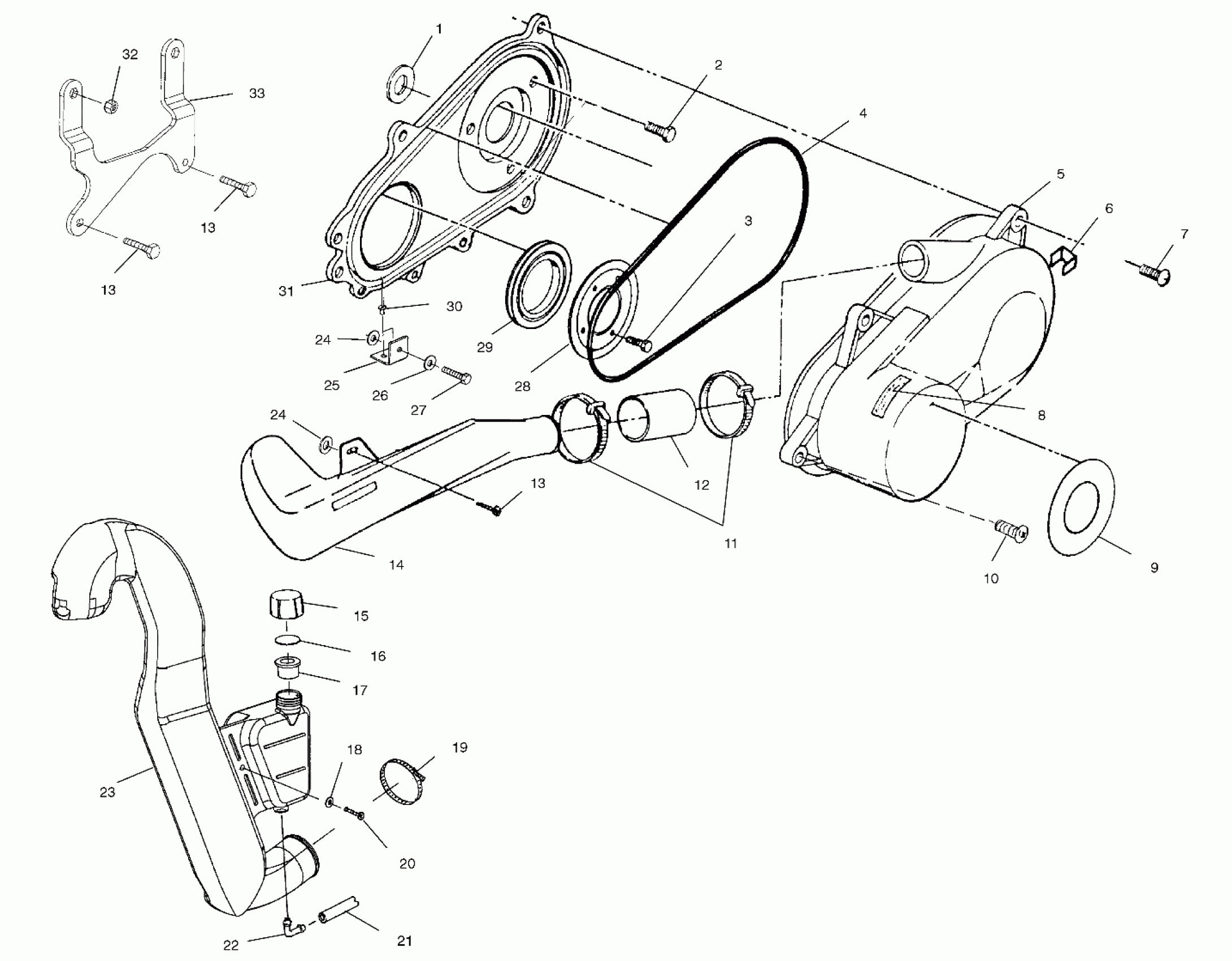

Polaris SCRAMBLER 400 2X4 - A01BA38CA CLUTCH COVER - A01BA38CA (4968366836C001) Diagram

#

Description
Price

1

SEAL,CVR,CASE 1/2

5411180

$24.27

2

BOLT/RBR WASHER 1/4-20X1,ASM.(10)

7517860

Unavailable

3

Screw and Washer (See Crankcase and Cylinder Pg. C12, Ref. 48)

-------

Unavailable

4

SEAL,CLUTCHCOVER

5521301

$30.88

5

COVER-CLUTCH,FRONT,ST-801HS

5433542

$179.99

6

CLIP,CLUTCH COVER(10)

7670051

$2.99

7

SCREW(10)

7512093

$1.49

8

DECAL,WARNING,CLUTCH CVR

7078689

Unavailable

9

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

10

SCREW(10)

7512094

$1.59

11

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

12

BOOT,CLUTCH INTAKE

5410421

$11.19

13

BOLT(10)

7512232

$1.49

13

BOLT(10)

7512232

$1.49

13

BOLT(10)

7512232

$1.49

14

DUCT,AIR OUT,CLUTCH

5432615

Unavailable

15

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

16

GASKET-OVERFLOW CAP

5810279

$2.41

17

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

18

WASHER(10)

7555783

$3.99

19

CLAMP, NARROW BAND(10)

7080511

$4.79

20

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

21

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

22

FITTING,90 DEGREE

7052065

$7.19

23

DUCT,CLUTCH INLET,HYBRID

5433342

Unavailable

24

WASHER,NYLON

7555932

$2.39

24

WASHER,NYLON

7555932

$2.39

25

BRKT,CLUTCH COVER,BLK

5242693-067

Unavailable

26

WASHER(10)

7555935

$2.39

27

Screw

7512098

$1.59

28

BRKT,RETAINER,SEAL

5222446-067

Unavailable

29

Seal, Cover Case

5410575

Unavailable

30

RIVET-3/16-.090-.290

7661637

$1.49

31

COVER,CLUTCH INNER 400 (Incl. 7,10)

2201159

$141.65

32

NUTSERT,HEX

7547067

$6.23

33

BRKT,CLUTCH,LOW,BLK

5242208-067

Unavailable
