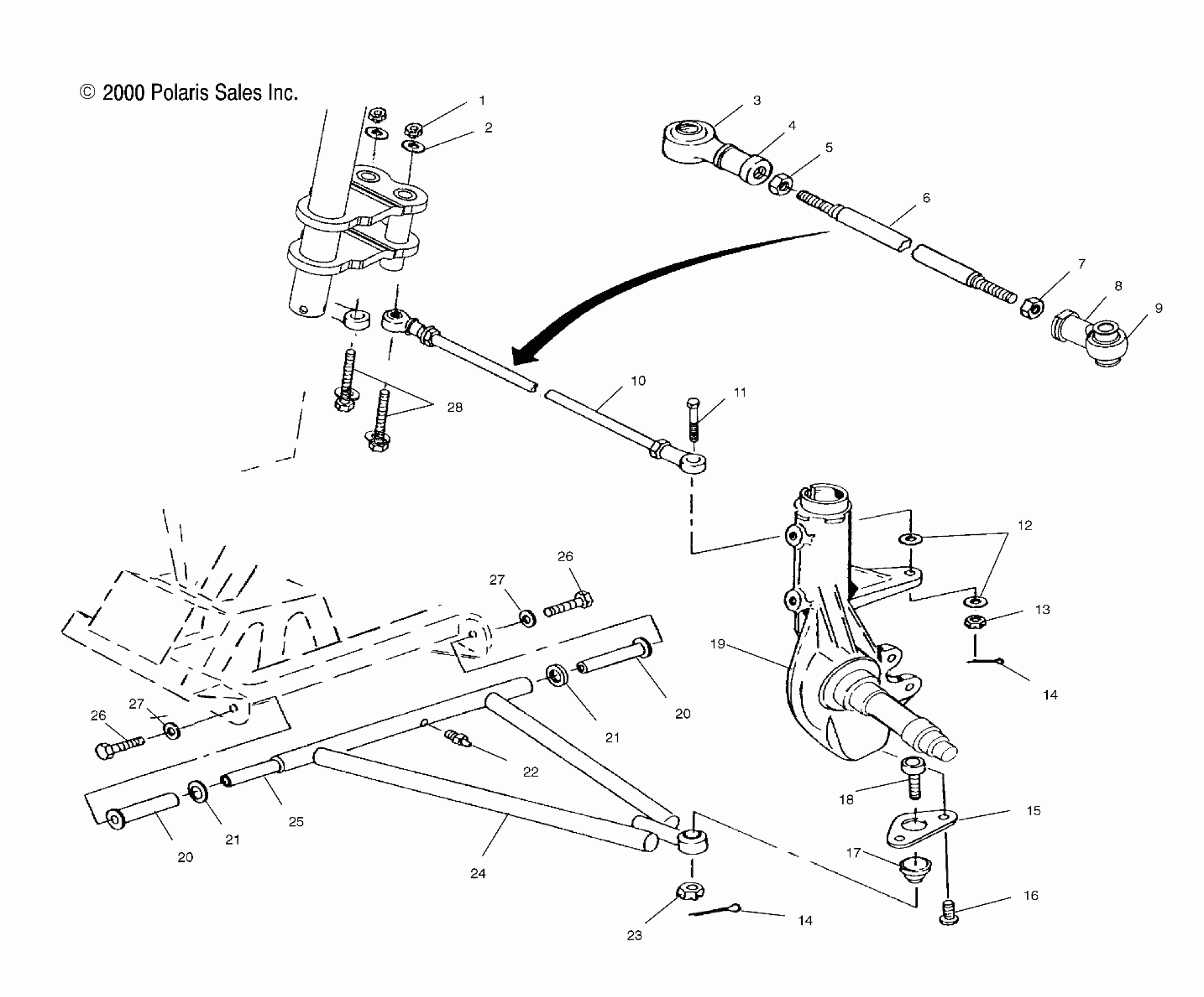

Polaris SCRAMBLER 400 2X4 - A01BA38CA A-ARM/STRUT MOUNTING - A01BA38CA (4968366836B003) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

$3.99

2

WASHER WROUGHT(10)

7558403

$4.79

3

SEAL,BOOT,ROD END,1/2 IN

5411291

Unavailable

4

ROD END,RH

7061034

$54.04

5

NUT-JAM(10)

7542711

$2.39

6

ROD,TIE

5020927

$39.99

7

NUT,LH,JAM(10)

7547028

$2.39

8

ROD,END,10MM,1/2-20LH,42 DEG

7061054

Unavailable

9

BOOT,SEAL,ROD END,10MM

5411920

Unavailable

10

TIE,ROD,1/2-20X14.0,ASM.

1820806

Unavailable

11

BOLT-M10X1.25X57 HX WASH HD Substituted by 7517909

7517674

Unavailable

12

Washer

7556099

$1.59

13

NUT, CASTLE(10)

7546904

$4.79

14

PIN COTTER(10)

7661203

$1.49

14

PIN COTTER(10)

7661203

$1.49

15

BRACKET,BALLJOINT

5240717

Unavailable

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

17

Boot, Rubber

5410548

Unavailable

18

BALL-JOINT,52 DEG,ATV

7080927

$76.89

19

Support, Strut and Spindle (See Strut Pg. A14, Ref. 16)

-------

Unavailable

20

BUSHING,A ARM,LONG

5433066

$5.01

20

BUSHING,A ARM,LONG

5433066

$5.01

21

BUSHING,A-ARM SPACER(10)

5020677

$10.39

21

BUSHING,A-ARM SPACER(10)

5020677

$10.39

22

ZERK,FITTING,THREADED(10)

7080433

$1.49

23

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

24

A-FRAME,KIT,LH (1541454)

2201601

Unavailable

24

A-FRAME,KIT,RH (1541455)

2201602

Unavailable

25

Shaft, A-Arm

5020681

Unavailable

26

SCREW(10)

7512492

$1.49

26

SCREW(10)

7512492

$1.49

27

WASHER(10)

7552603

$1.49

27

WASHER(10)

7552603

$1.49

28

BOLT-3/8-24X4,HX SEM/Y .86D

7517930

Unavailable
