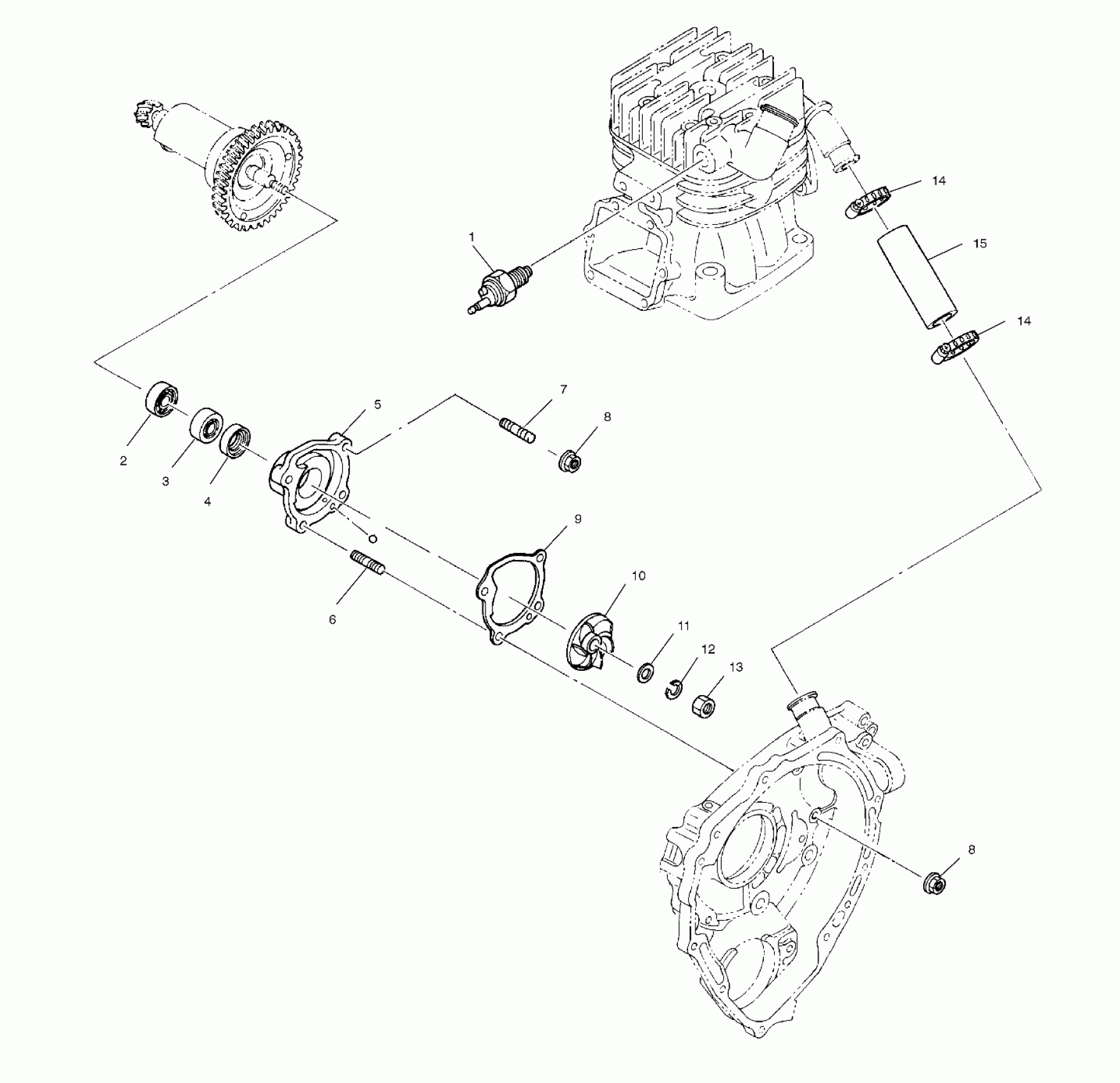

Polaris SCRAMBLER 2X4 - A00BA38CA WATER PUMP - A00BA38CA (4954835483D006) Diagram

#

Description
Price

1

SWITCH,THERMAL,IOS

3084284

Unavailable

2

Bearing, Ball

3084183

Unavailable

3

Seal, Oil

3084184

Unavailable

4

Seal, Oil

3084185

Unavailable

5

CASING-WATER PUMP (Incl. 2-7)

3086770

Unavailable

5

CASING-WATER PUMP Substituted by 3085085 (Incl. 5,6,7)

3086771

Unavailable

6

Stud

3086772

$3.83

7

STUD Substituted by 3087087

3086775

Unavailable

8

NUT, FLANGE(10)

3083856

$2.39

8

NUT, FLANGE(10)

3083856

$2.39

9

Gasket

3084187

$12.39

10

Impeller

3084186

Unavailable

11

Washer

3082206

$1.49

12

WASHER SPRING(10)

3080077

$2.39

13

Nut

3083073

$2.39

14

CLAMP-HOSE

3086774

Unavailable

14

CLAMP-HOSE

3086774

Unavailable

15

HOSE,MAIN

3086773

Unavailable
