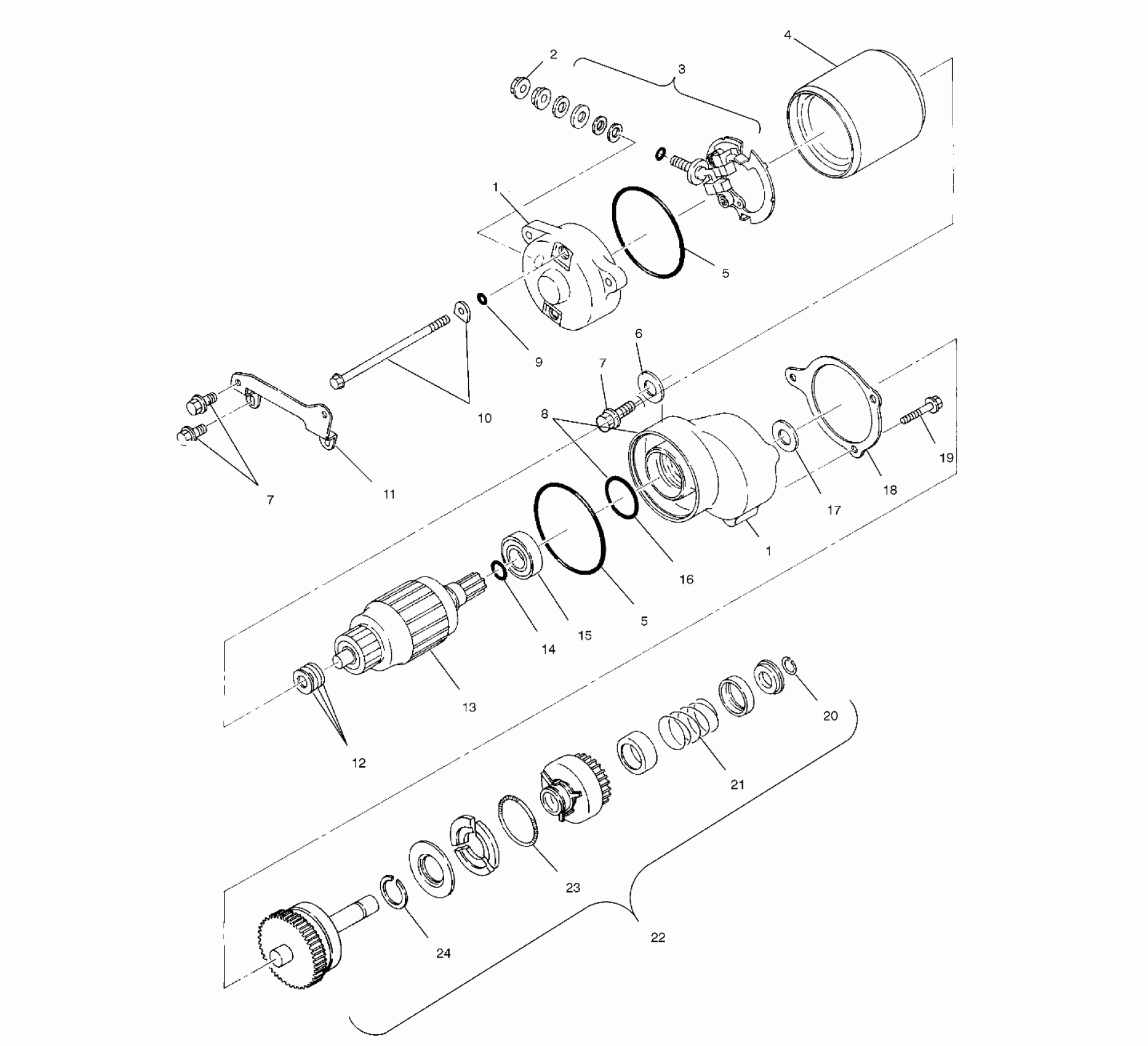

Polaris SCRAMBLER 2X4 - A00BA38CA STARTING MOTOR - A00BA38CA (4954835483D004) Diagram

#

Description
Price

1

COVER,REAR,STARTER(300-400)

3085032

$82.39

1

COVER,REAR,STARTER(300-400)

3085032

$82.39

2

NUT, FLANGE(10)

3083649

$3.99

3

BRUSH,COMPL.2-POLE *

3084406

Unavailable

4

MOTOR ASM,STARTER Substituted by 3087043 (Incl. 1-5,8-10,12-17,20-24)

3085392

Unavailable

4

STARTER MOTOR ASM. * (Incl. 1-5,8-10,12-16)

3085393

Unavailable

5

RING, RUBBER

3084405

Unavailable

5

RING, RUBBER

3084405

Unavailable

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

BOLT,FLANGE Substituted by 3083568

3086782

Unavailable

7

BOLT,FLANGE Substituted by 3083568

3086782

Unavailable

8

COVER, FRONT (Incl. 16)

3085305

$123.02

9

O-RING

3084408

Unavailable

10

Bolt, Through

3084407

Unavailable

11

Bracket

3086780

Unavailable

12

Washer Set

3083754

$2.39

13

ARMATURE ASM. * (Incl. 14,15)

3084404

$207.99

14

O RING

3083934

Unavailable

15

BALL BEARING

3083777

$31.99

16

O RING

3083741

$9.37

17

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

18

GASKET,STARTER(NON-ASBESTOS)

3085283

Unavailable

19

BOLT,FLANGE

3086781

$4.79

20

CLIP

3084409

$7.19

21

SPRING, RETURN

3084410

$2.47

22

SHAFT ASM,GEAR Substituted by 3087030 (Incl. 17,20-24)

3085394

Unavailable

23

SPRING, WEIGHT

3084411

$15.67

24

CLIP

3084412

$9.59
