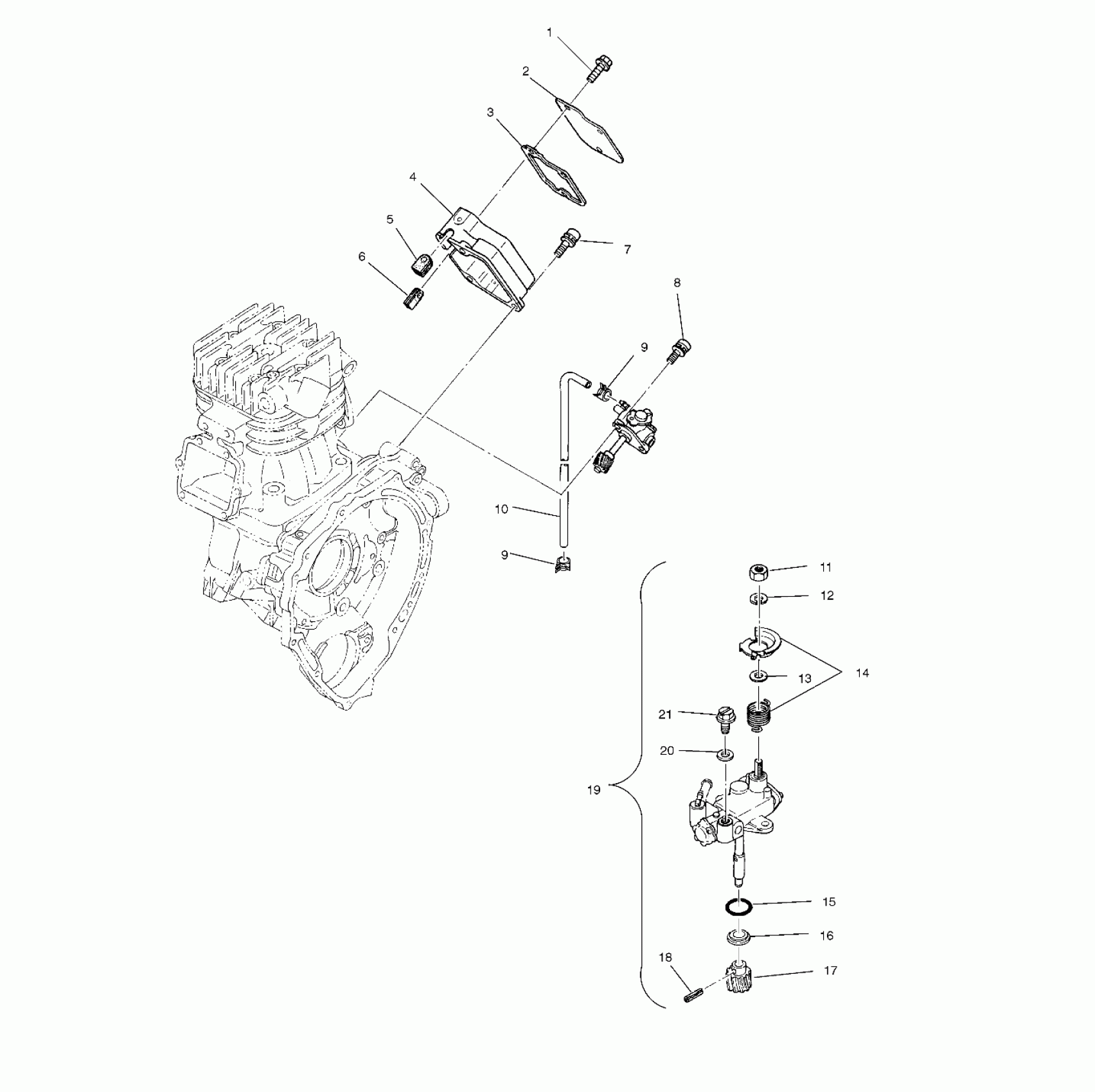

Polaris SCRAMBLER 2X4 - A00BA38CA OIL PUMP - A00BA38CA (4954835483D001) Diagram

#

Description
Price

1

BOLT&WASHER ASM.(10)

3084757

$2.39

2

COVER, OILPUMP CASE

3085281

Unavailable

3

GASKET,OILPUMP CASE

3085280

Unavailable

4

CASE, OILPUMP

3085520

$23.83

5

Grommet

3086777

Unavailable

6

Grommet

3086779

Unavailable

7

SCREW AND WASHER Substituted by 3083783

3086778

Unavailable

8

SCREW&WASHER,(10)

3083783

$2.39

9

CLAMP-HOSE,(10)

3083141

$1.49

9

CLAMP-HOSE,(10)

3083141

$1.49

10

PIPE,VINYL

3086776

Unavailable

11

NUT(10)

3083120

$3.19

12

WASHER-SPRING(10)

3083121

$299.99

13

COLLAR, CAMSHAFT(10)

3083445

$2.39

14

SPRING&LEVER SET(FOR 3085285)

3085571

Unavailable

15

O RING

3083127

Unavailable

16

Spacer

3084195

Unavailable

17

Wheel

3084196

Unavailable

18

Pin, Spring

3084197

Unavailable

19

PUMP, OIL (Incl. 11-21)

3085285

Unavailable

20

Washer

3084194

$6.23

21

SCREW-AIR VENT

3083125

Unavailable
