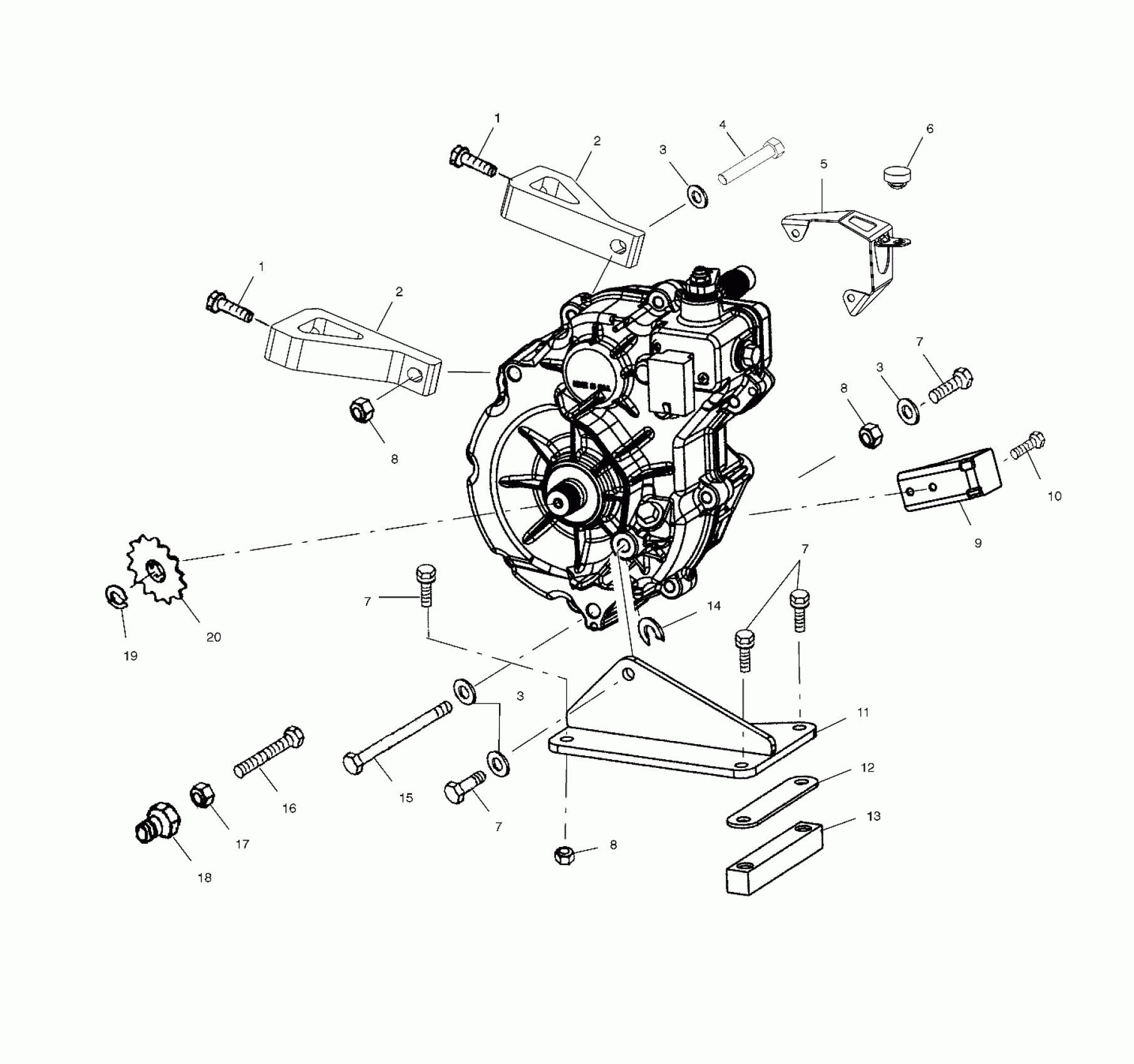

Polaris SCRAMBLER 2X4 - A00BA38CA GEARCASE MOUNTING - A00BA38CA (4954835483C011) Diagram

#

Description
Price

1

SCREW

7517632

$5.59

1

SCREW

7517632

$5.59

2

MOUNT-TRANSMISSION,REAR,MACH

5132046

$35.99

2

MOUNT-TRANSMISSION,REAR,MACH

5132046

$35.99

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

4

Screw

7517642

$7.99

5

BRKT,CARB DAMPENER,SPORT,BLK

5243943-067

Unavailable

6

Bumper, Rubber

5410414

$3.19

7

SCREW(10)

7512492

$1.49

7

SCREW(10)

7512492

$1.49

7

SCREW(10)

7512492

$1.49

7

SCREW(10)

7512492

$1.49

8

NUT(10)

7542423

$3.99

8

NUT(10)

7542423

$3.99

8

NUT(10)

7542423

$3.99

9

BRKT,TORQUE STOP,BLK

1012785-067

$12.39

10

BOLT(10)

7512325

$2.39

11

MOUNT,TRANSMISSION,2X4,BLK

1012886-067

Unavailable

12

SPACER-TRANSMISSION MNT,BLK

5243296-067

$5.91

13

MOUNT-TRANSMISSION,2X4

5243306

$12.39

14

SPACER,(10) (.020)

5210764

Unavailable

14

SHIM,.010,GEARCASE (.010)

5211065

Unavailable

14

SHIM,(.030) (.030)

5211517

Unavailable

15

SCREW

7517646

$7.19

16

Screw

7517631

$5.59

17

NUT(10)

7542440

Unavailable

18

Plug, Drain (See Gearcase Pg. C10, Ref. 36)

-------

Unavailable

19

RING,SNAP(10)

7710434

$3.99

20

SPKT,13T,SPLINED

3221041

$43.99
