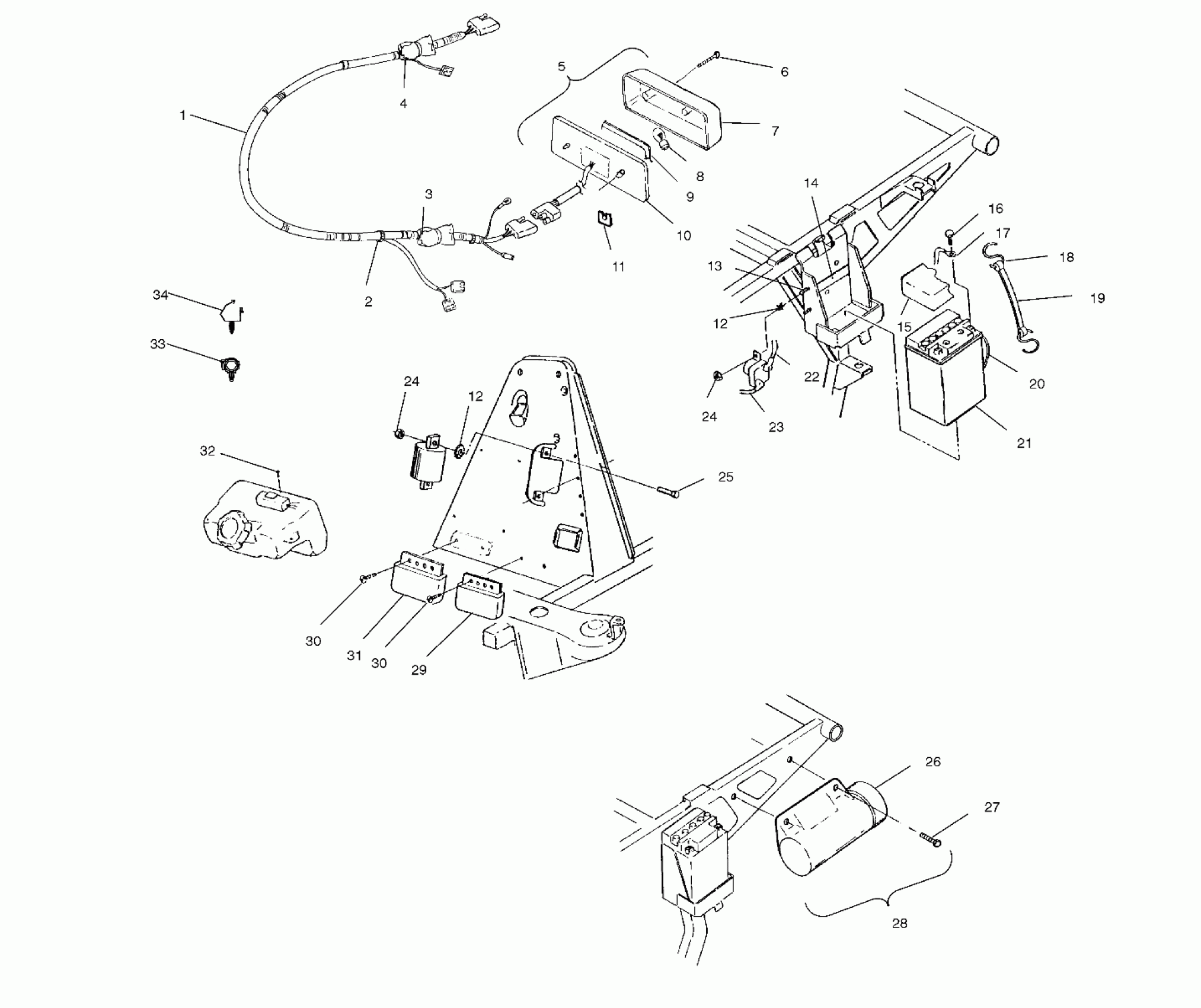

Polaris SCRAMBLER 2X4 - A00BA38CA ELECTRICAL/TAILLIGHT - A00BA38CA (4954835483C002) Diagram

#

Description
Price

1

HARNESS,MAIN,SPORT 400 2X4

2460789

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

KIT,CKT.BRKR,20 AMP

2200593

$63.99

4

KIT-CIRCUT BREAKER,FAN

2201795

$68.79

5

LIGHT,TAIL/BRAKE

2432038

$81.07

6

SCREW,TAIL LIGHT

7512088

$2.39

7

LENS,STOP&T/L.

4032085

$36.41

8

BULB,TAILLIGHT

4030043

$6.46

9

GASKET,T/L&STOP/L

4032086

Unavailable

10

BACKING,(STOP&TAIL)

4032087

Unavailable

11

CLIP, RETAINER(10)

7670093

$5.99

12

WASHER(10)

7571602

$4.79

12

WASHER(10)

7571602

$4.79

13

SCREW(10)

7512027

$1.49

14

PAD-BATTERY

5810290

$7.27

15

COVER,BATTERY

5431769

$14.39

16

BOLT,BATT,KIT(SHORT)

2200361

$3.99

17

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

18

HOOK-BATT.H/D(10)

7010032

$1.59

19

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

20

TUBE,BATTERY VENT

5432077

$8.08

21

Battery

4140006

$99.99

22

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

23

CABLE-RED,SOL/STRTR,DBLBOOT34"

4010218

$47.99

24

NUT(10)

7541925

$1.49

24

NUT(10)

7541925

$1.49

25

SCREW(10)

7512007

$3.99

26

LID COVER,TOOLBOX Substituted by 2620087

5431973

Unavailable

26

GASKET,TOOLBOX LID

5811079

Unavailable

27

BOLT(10)

7512232

$1.49

28

TOOLBOX ASM. Substituted by 2632221 (Incl. 26 and Gasket)

2620087

Unavailable

29

RECTIFIER/REGULATOR,LR39-1

4060208

Unavailable

30

SCREW,(10)

7512024

$4.79

30

SCREW,(10)

7512024

$4.79

31

LIMITER-RPM,94 HZ,LR491

4010186

$82.39

32

SCREW(10)

7512076

$1.49

33

CLIP,ROSEBUD

4020149

$6.39

34

CLIP-ROUTING

7670109

$2.39
