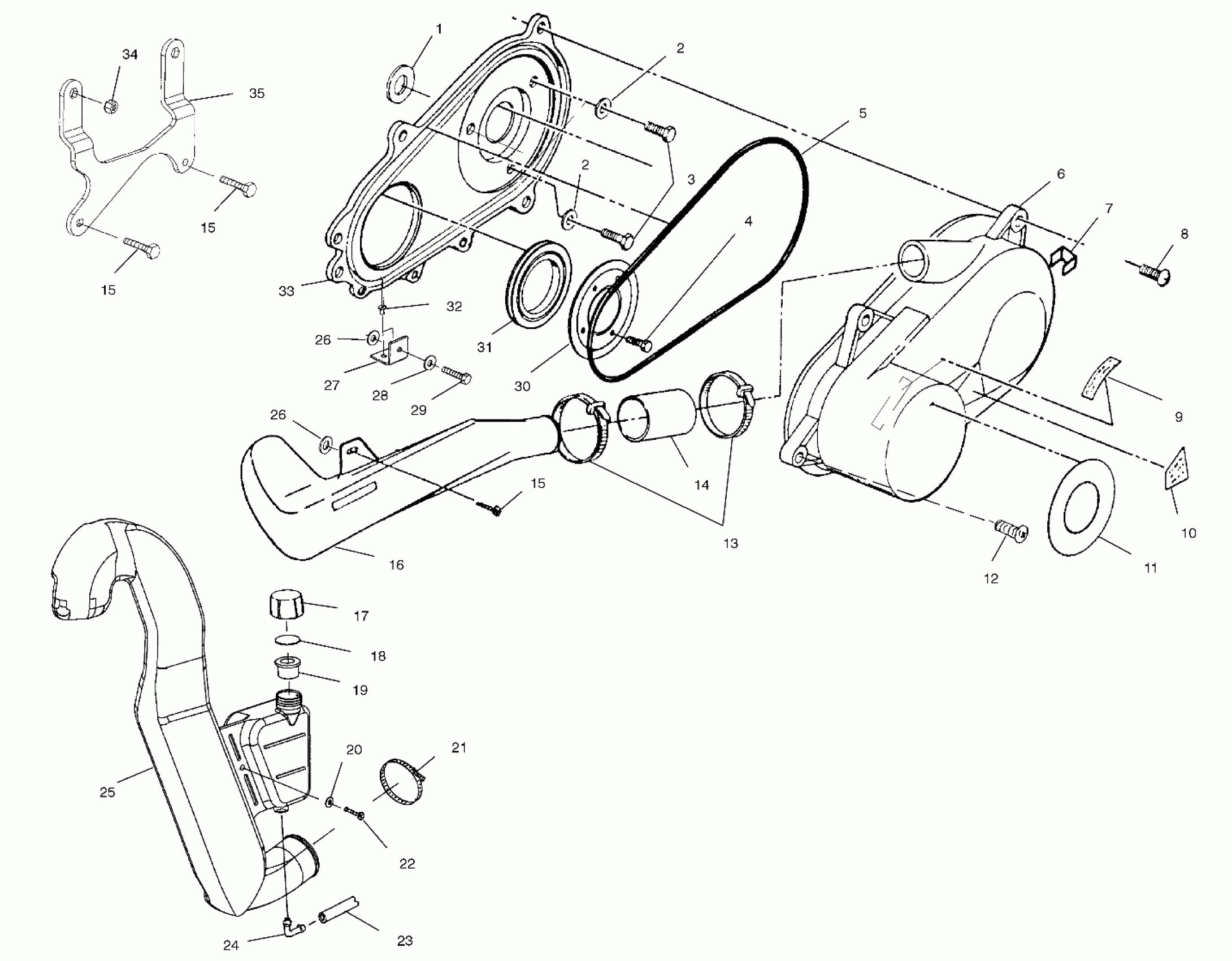

Polaris SCRAMBLER 2X4 - A00BA38CA CLUTCH COVER - A00BA38CA (4954835483C003) Diagram

#

Description
Price

1

SEAL,CLUTCH CVR,INNER

5411553

$23.99

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

3

SCREW (10)

7517542

$6.23

4

Screw and Washer (See Crankcase and Cylinder Pg. C14, Ref. 48)

-------

Unavailable

5

SEAL,CLUTCHCOVER

5521301

$30.88

6

COVER-CLUTCH,FRONT,ST-801HS

5433542

$179.99

7

CLIP,CLUTCH COVER(10)

7670051

$2.99

8

SCREW(10)

7512093

$1.49

9

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

10

DECAL,ENG/CLUTCH MOD. Substituted by 7078689

7077377

Unavailable

11

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

12

SCREW(10)

7512094

$1.59

13

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

BOOT,CLUTCH INTAKE

5410421

$11.19

15

BOLT(10)

7512232

$1.49

15

BOLT(10)

7512232

$1.49

15

BOLT(10)

7512232

$1.49

16

DUCT,AIR OUT,CLUTCH

5432615

Unavailable

17

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

18

GASKET-OVERFLOW CAP

5810279

$2.41

19

PLUG,CAP Substituted by 5433774

5431895

Unavailable

20

WASHER(10)

7555783

$3.99

21

CLAMP, NARROW BAND(10)

7080511

$4.79

22

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

23

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

24

FITTING,90 DEGREE

7052065

$7.19

25

DUCT,CLUTCH INLET,HYBRID

5433342

Unavailable

26

WASHER,NYLON

7555932

$2.39

26

WASHER,NYLON

7555932

$2.39

27

BRKT,CLUTCH COVER,BLK

5242693-067

Unavailable

28

WASHER(10)

7555935

$2.39

29

Screw

7512098

$1.59

30

BRKT,RETAINER,SEAL

5222446-067

Unavailable

31

Seal, Cover Case

5410575

Unavailable

32

RIVET,INTERLOCK,B(50)

7661638

$1.49

33

COVER,CLUTCH INNER 400 (Incl. 8,12)

2201159

$141.65

34

NUTSERT,HEX

7547067

$6.23

35

BRKT,CLUTCH,LOW,BLK

5242208-067

Unavailable
