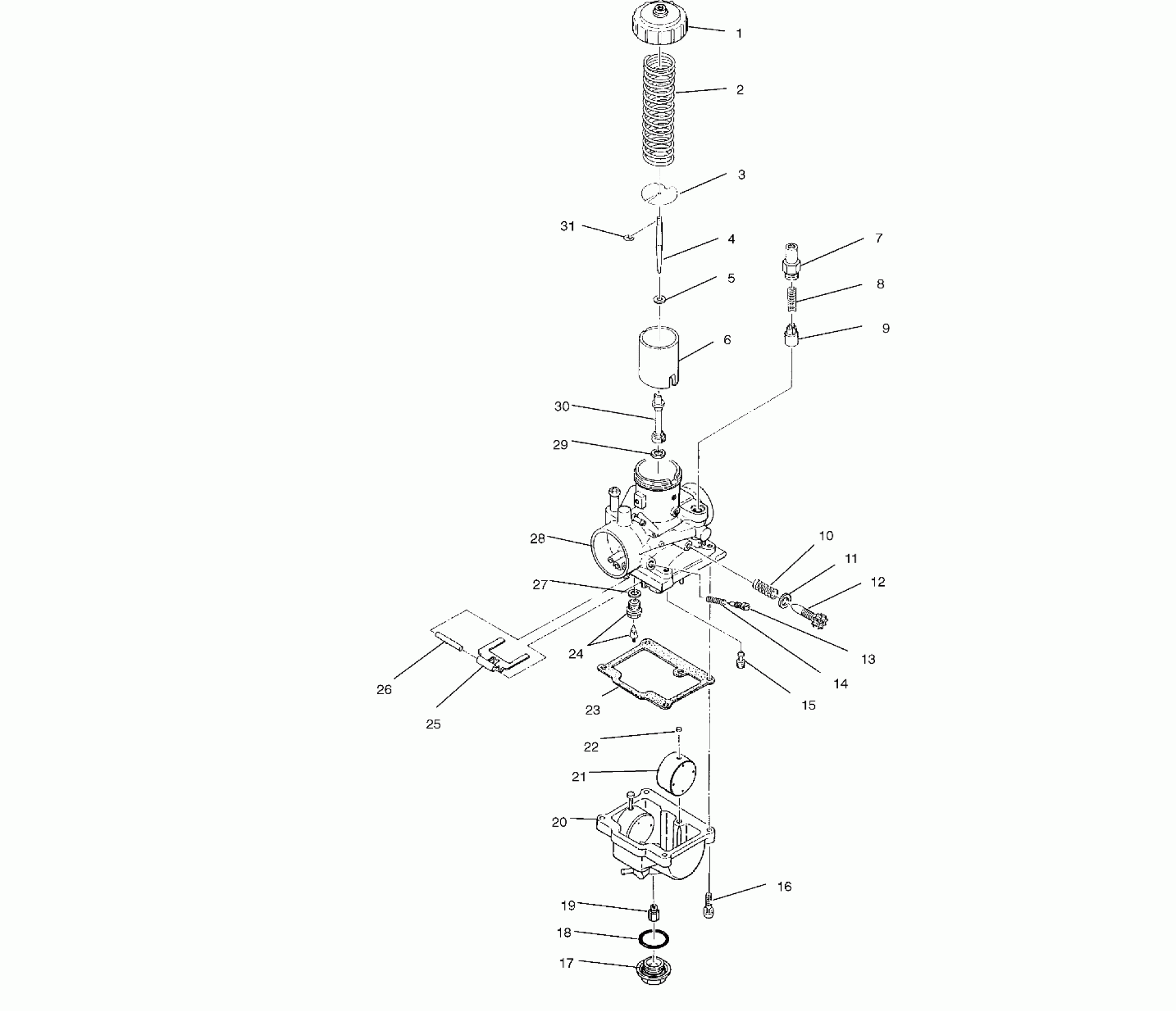

Polaris SCRAMBLER 2X4 - A00BA38CA CARBURETOR - A00BA38CA (4954835483D002) Diagram

#

Description
Price

1

TOP ASM

3130184

$32.37

2

Spring, Throttle

3130496

$28.32

3

PLATE

3130027

$9.70

4

JET NEEDLE (6CEY6-3)

3130476

$24.27

5

Washer

3130355

$7.19

6

VALVE,THROTTLE,(1.5) (1.5)

3130494

Unavailable

7

HOLDER,GUIDE

3130199

$28.32

8

SPRING,PLUNGER

3130006

$8.89

9

PLUNGER ASM, STARTER

3130328

$32.37

10

SPRING,THROT.ADJ.

3130436

Unavailable

11

Washer

3130447

Unavailable

12

SCREW,THROTTLE STOP

3130009

$19.99

13

SCREW,AIR

3130011

$19.99

14

SPRING,AIR ADJUST

3130012

$8.89

15

JET,PILOT,#35(10) (#35)

3130066

$8.89

16

SCREW & WASHER(10)

3130025

$3.19

17

Screw, Guide

3130432

$27.99

18

O RING

3130239

Unavailable

19

JET,MAIN,HX.HD#230(10) (#230)

3130126

$7.27

20

BOWL, FLOAT (350)

3130443

Unavailable

21

FLOAT ASM.

3130430

$43.56

22

CAP,(10)

3130237

$4.03

23

PACKING,FLOAT CHAMBER

3130020

$16.17

24

NEEDLE VALVE ASM.(2.5) (2.5)

3130495

$65.63

25

ARM,FLOAT

3130018

$24.27

26

PIN, FLOAT

3130361

$8.89

27

WASHER(10)

3130047

$4.84

28

CARBURETOR (Incl. 1-31)

3130709

Unavailable

29

RING,MAIN JET

3130596

Unavailable

30

NEEDLE JET ASM.

3130429

Unavailable

31

E RING(10) Substituted by 3130508

3130003

Unavailable
