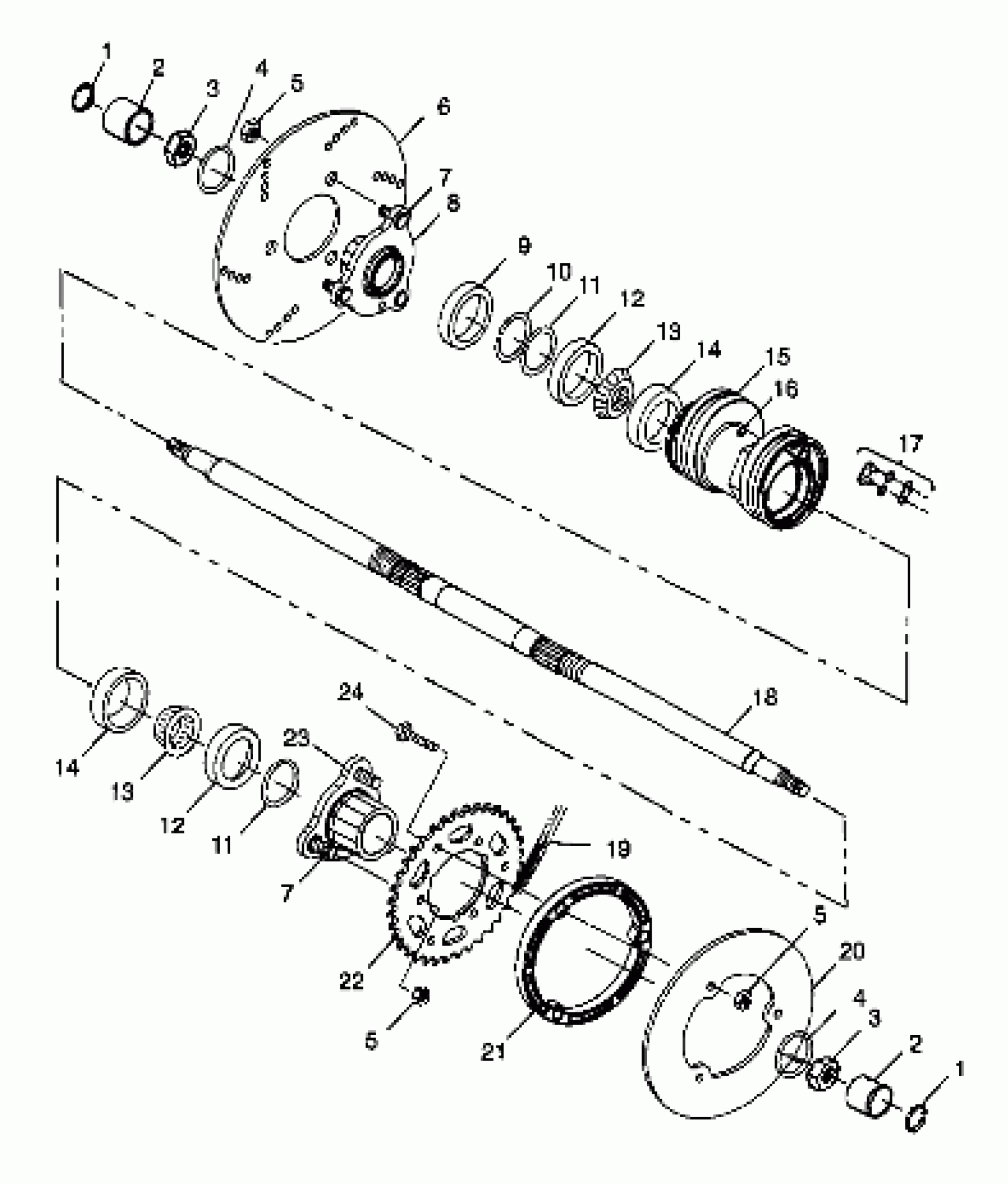

Polaris SCRAMBER 500 - W98BC50A REAR HOUSING - W98BC50A (4944994499c005) Diagram

#

Description
Price

1

RING,RETAINING

7710472

$5.56

1

RING,RETAINING

7710472

$5.56

2

EXTRUSION,RETAINER,NUT

5510313

$54.99

2

EXTRUSION,RETAINER,NUT

5510313

$54.99

3

NUT,JAM

7547031

$27.78

3

NUT,JAM

7547031

$27.78

4

SEAL,FOAM

5411555

$13.75

4

SEAL,FOAM

5411555

$13.75

5

NUT-LOCK(10)

7542439

$1.19

5

NUT-LOCK(10)

7542439

$1.19

5

NUT-LOCK(10)

7542439

$1.19

6

DISC,BRAKE,VENTED

5211849

Unavailable

7

STUD(10)

7515513

$1.19

7

STUD(10)

7515513

$1.19

8

HUB ASM,BRK.DISC,LOCKING (Incl. 7)

1520259

Unavailable

9

SPACER,AXLE

5010462

$27.78

10

RING, SNAP(10)

7710405

$4.76

11

O RING

5410889

Unavailable

11

O RING

5410889

Unavailable

12

SEAL,LIP

3610070

$16.17

12

SEAL,LIP

3610070

$16.17

13

BEARING,CONE,TAPERED

3554518

$39.68

13

BEARING,CONE,TAPERED

3554518

$39.68

14

BEARING,CUP,TAPERED

3554517

$15.87

14

BEARING,CUP,TAPERED

3554517

$15.87

15

HOUSING,R.AXLE,(MACH) Substituted by 5132098

5131701

$126.57

16

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

17

LINK,CONNECT,520 ORD

3225027

$32.37

18

AXLE,REAR,HYBRID

5020944

$699.99

19

CHAIN,76P,520 ORD,O-RING

3221111-076

$129.51

20

GUARD,38T SPKT,BLK.ALUM.

5211585-067

Unavailable

21

SPACER-SPROCKET GUARD

5630586

Unavailable

22

SPKT,36T,R.AXLE,(ATV)

3222109

$113.99

23

HUB ASM,SPKT,LOCKING (Incl. 7)

1520258

$109.27

24

BOLT(10)

7515540

$4.76
