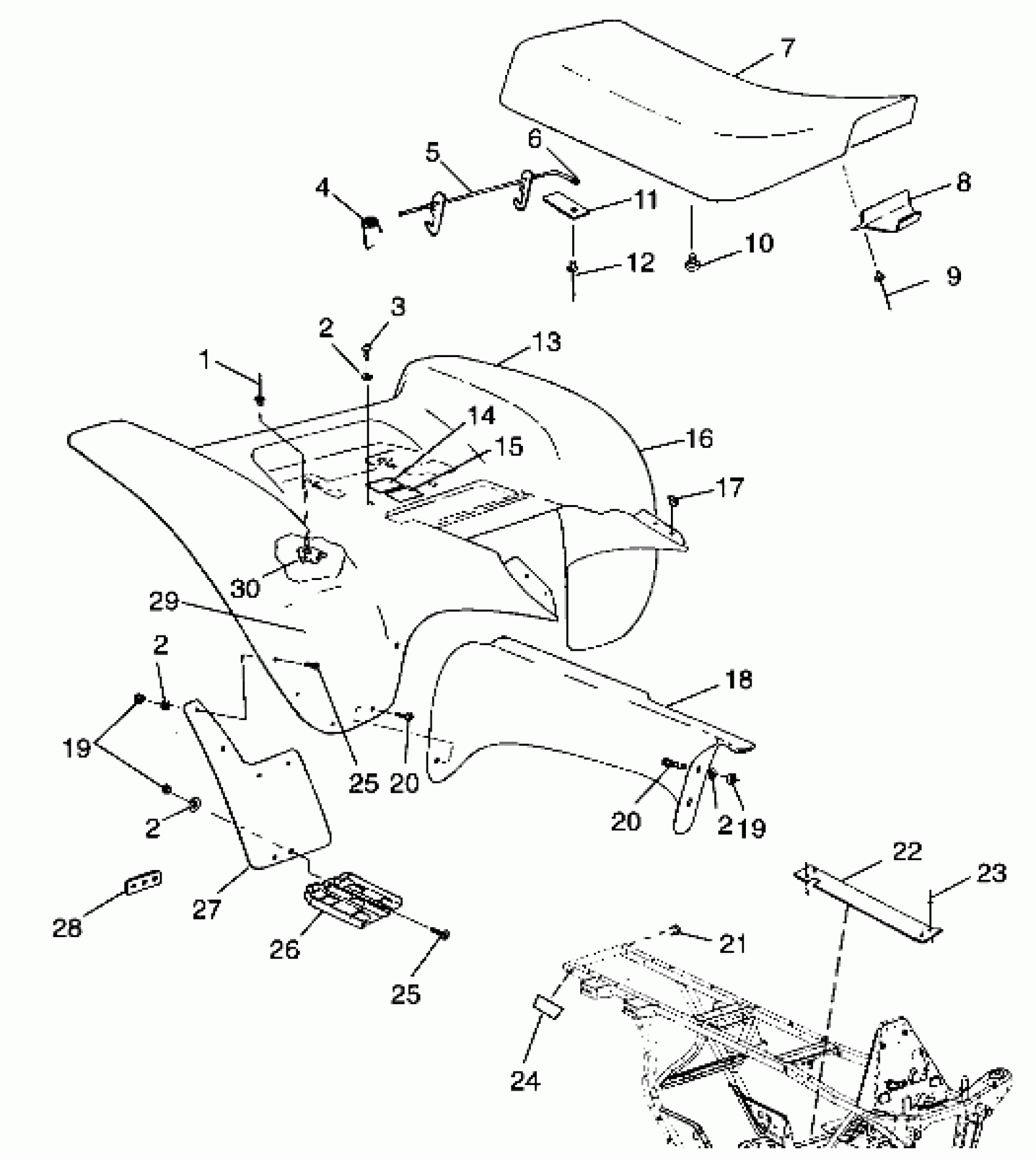

Polaris SCRAMBER 500 - W98BC50A REAR CAB - W98BC50A (4944994499a006) Diagram

#

Description
Price

1

RIVET(50)

7621472

$1.49

2

WASHER, FLAT(10)

7555859

$1.49

2

WASHER, FLAT(10)

7555859

$1.49

2

WASHER, FLAT(10)

7555859

$1.49

2

WASHER, FLAT(10)

7555859

$1.49

3

BOLT(10)

7512232

$1.49

4

SPRING,LATCH,LIGHT

7041607

Unavailable

5

LATCH, SEATBACK

1040412

Unavailable

6

CAP,SEATLATCH,GEN 3

5411392

Unavailable

7

COVER,SEAT,BLK.

2681769-070

Unavailable

7

SEAT ASM,BLACK,(ATV) Substituted by 2682453-070

2682361-070

$524.99

8

TONGUE,SEAT

5431986

$9.59

9

RIVET(50)

7621479

$1.99

10

Bumper, Rubber

5410414

$3.19

11

BRACKET,LEVER RETAINER

5211033

$29.25

12

BLIND RIVET(50)

7621403

$1.49

13

Foil, Rear Cab, Small

5810991

Unavailable

14

DECAL,CARB.INFO.

7073761

Unavailable

15

DECAL,FILT.ELEMENT,4-S

7077446

Unavailable

16

CAB,REAR,GEN III,PUR.WAVE Substituted by 5434014-214

5432820-214

$396.65

17

NUT, SPEED(10)

7670057

$1.49

18

SHIELD,MUFFLER,GEN 3,BLACK Substituted by 2632275

5433105-070

Unavailable

18

FOIL-FOAM,MUFF.SHIELD

5811676

Unavailable

19

NUT-LOCK(10)

7542122

$1.49

19

NUT-LOCK(10)

7542122

$1.49

20

Screw

7517264

$3.99

20

Screw

7517264

$3.99

21

PLUG,ENDCAP,RIBBED

5432831

$5.59

22

GUARD-CLUTCH, BLK

5241403-067

Unavailable

23

RIVET,INTERLOCK,B(50)

7661638

$1.49

24

REFLECTOR ASM,RED

2670133

$5.75

25

BOLT, BLACK(10)

7512282

$1.49

25

BOLT, BLACK(10)

7512282

$1.49

26

Footpad (See Footnote) (See Front Cab Pg. A5, Ref. 19)

-------

Unavailable

27

MUDFLAP,LH,R.HYBRID Substituted by 5812134

5850147

Unavailable

27

MUDFLAP,RH,R.HYBRID

5850148

Unavailable

28

BRKT, LH MUD FLAP

5211131-067

Unavailable

29

Foil, Rear Cab

5810957

Unavailable

30

BRKT,R.HOLDDOWN

5220880

Unavailable
