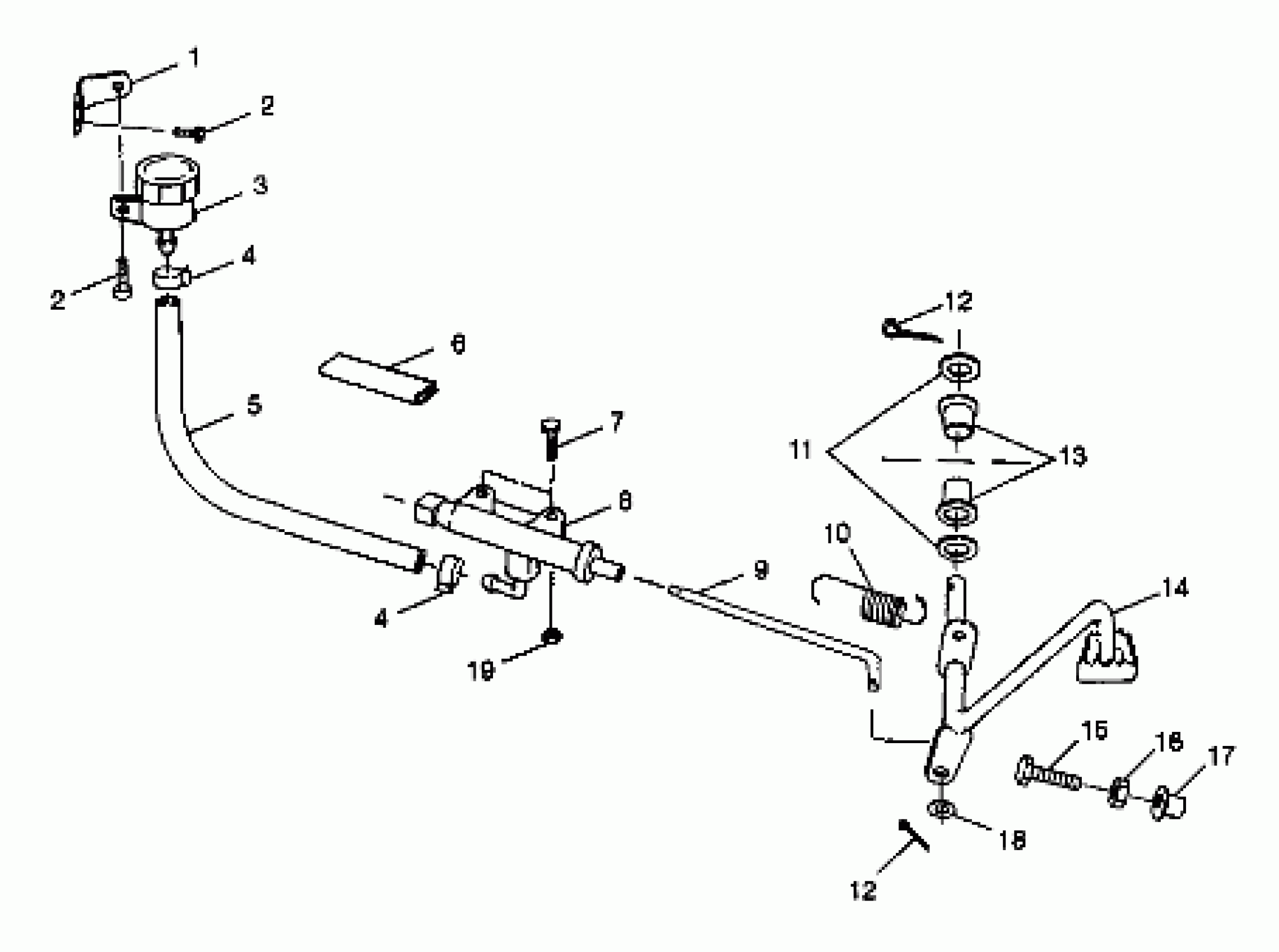

Polaris SCRAMBER 500 - W98BC50A REAR BRAKE MASTER CYLINDER - W98BC50A (4944994499c003) Diagram

#

Description
Price

1

BRKT,RESERVOIR,BLK

5242614-067

$5.11

2

SCREW(10)

7512208

$3.99

2

SCREW(10)

7512208

$3.99

3

RESERVOIR ASM,R.BRAKE

1930854

$35.99

4

HOSE CLAMP, RED

7080003

$1.49

4

HOSE CLAMP, RED

7080003

$1.49

5

HOSE,RESERVOIR,HYBRID

1930889

Unavailable

6

EDGE TRIM - BLACK Substituted by 5521131

8360012

Unavailable

7

BOLT(10)

7512247

$2.39

8

MASTER CYL.ASM,FOOTBRAKE

1930899

Unavailable

9

ROD,BRAKE,HYBRID

5242789

Unavailable

10

SPRING,EXTENSION

7041720

Unavailable

11

WASHER(10)

7555919

$4.99

12

COTTER PIN(10)

7661401

$1.49

12

COTTER PIN(10)

7661401

$1.49

13

BUSHING-PEDAL PIVOT

5431107

$8.79

14

FOOTBRAKE,HYBRID,BLK.

1910275-067

Unavailable

15

BOLT(10)

7512103

$3.19

16

NUT HEX(10)

7542105

$3.99

17

NUTSERT,HEX(10)

7547069

$3.99

18

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

19

NUT-LOCK(10)

7542122

$1.49
