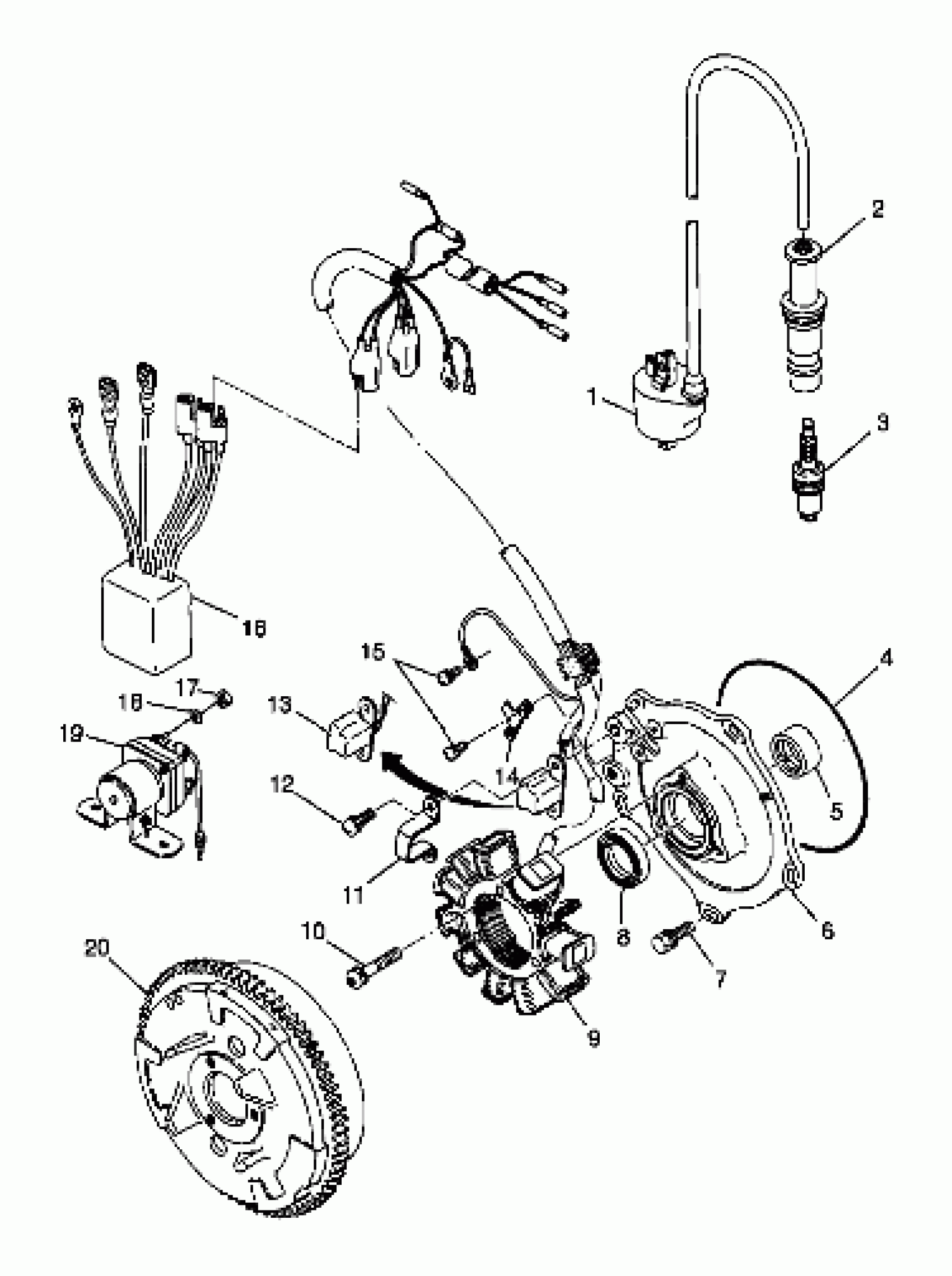

Polaris SCRAMBER 500 - W98BC50A MAGNETO - W98BC50A (4944994499d012) Diagram

#

Description
Price

1

COIL ASM,IGNITION (Incl. 1,2)

3084690

Unavailable

1

COIL,IGNITION

3084979

Unavailable

2

CAP, SPARKPLUG *

3084980

$59.99

3

SPARKPLUG, BKR6E(10) Substituted by 3070172

3084997

Unavailable

4

O-RING

3084978

$35.99

5

BEARING, METAL

3084972

Unavailable

6

PLATE ASM. Substituted by 3086820 (Incl.5,6,8-15)

3085559

Unavailable

6

PLATE

3085560

Unavailable

7

BOLT&WASHER ASM.

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

STATOR Substituted by 3086821 (Incl. 13)

3085561

Unavailable

10

SCREW&WASHER ASM.

3085563

Unavailable

11

Band, Pulse

3085554

Unavailable

12

SCREW&WASHER ASM.

3084976

Unavailable

13

COIL,PULSER

3085360

Unavailable

14

Clamp

3084977

Unavailable

15

SCREW&WASHER ASM(10)

3081256

$3.19

16

CDI SYSTEM *

3085639

Unavailable

17

Nut

3083073

$2.39

18

WASHER SPRING(10)

3080077

$2.39

19

SWITCH,MAGNETIC *

3085521

$60.70

20

Flywheel, w/Ring Gear

3085558

Unavailable
