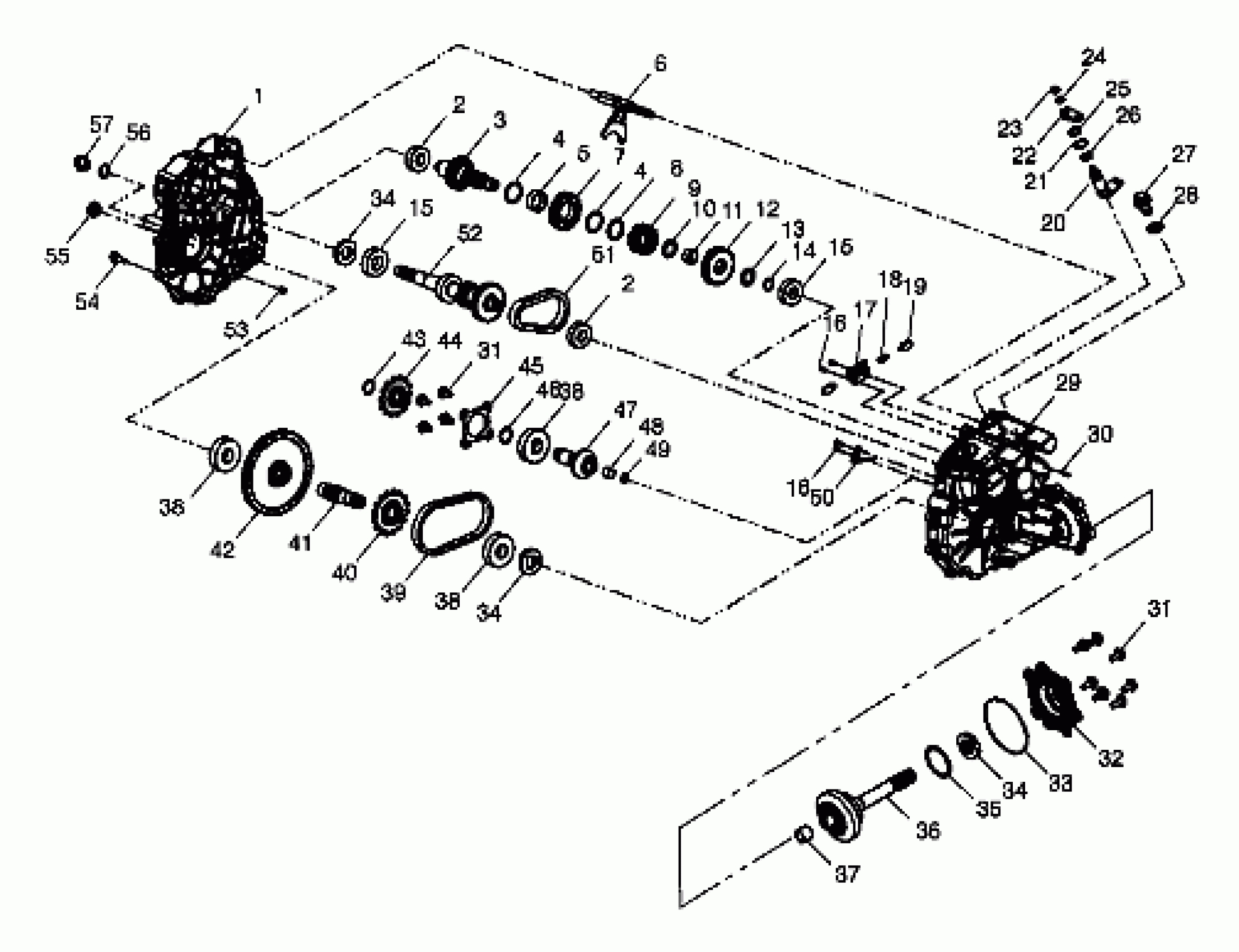

Polaris SCRAMBER 500 - W98BC50A GEARCASE - W98BC50A (4944994499c011) Diagram

#

Description
Price

-

GEARCASE ASM,H/R,HYBRID (Incl. 1-57)

1341232

Unavailable

1

GEARCASE,LH

3233528

$354.99

2

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

2

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

3

SHAFT,REVERSE 31T

3233557

$159.99

4

WASHER

3233012

Unavailable

4

WASHER

3233012

Unavailable

5

BEARING, NEEDLE

3233014

$43.99

6

FORK,SHIFT,HI/REV

3233530

Unavailable

7

SPROCKET,24T,12-POINT

3233532

Unavailable

8

RING,RETAINING

3233029

$5.59

9

DOG,ENGAGE,12PT,HI/REV

3233533

Unavailable

10

Washer

3233010

Unavailable

11

BUSHING,GARLOCK

3233534

Unavailable

12

GEAR,30T,12-POINT

3233535

Unavailable

13

Washer

3233176

$9.59

14

RING,RETAINING

3233177

$6.39

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

16

SCREW Substituted by 3233747

3233033

Unavailable

16

SCREW Substituted by 3233747

3233033

Unavailable

17

BRACKET,INTERLOCK

3233309

$20.63

18

SPRING,SHIFT.INTERLOCK

3233550

Unavailable

19

PIN,INTERLOCK

3233308

Unavailable

20

SHAFT,SHIFT,HI/REV.

3233559

$72.84

21

Washer

3233040

$9.59

22

Bellcrank

3233547

$43.99

23

Nut

3233055

Unavailable

24

Washer

3233054

$6.46

25

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

26

O-Ring

3233548

$27.99

27

DIPSTICK,(PLUG) Substituted by 3233711

3233325

Unavailable

28

Washer

3233324

$8.99

29

GEARCASE,RH

3233551

Unavailable

30

Vent

3233037

Unavailable

31

Screw

3233539

$15.49

31

Screw

3233539

$15.49

32

COVER,SNORKEL

3233556

$31.11

33

O-Ring

3233555

$6.06

34

Seal

3233248

$30.88

34

Seal

3233248

$30.88

34

Seal

3233248

$30.88

35

SHIM

3233554

$30.79

36

GEAR,SNORKEL

3233553

Unavailable

37

BUSHING-GARLOCK

3233552

$23.99

38

BEARING

3233020

$47.99

38

BEARING

3233020

$47.99

38

BEARING

3233020

$47.99

39

CHAIN,ROLLER

3233546

$67.99

40

SPROCKET,16/26T

3233545

$55.99

41

SHAFT,OUTPUT

3233544

$174.99

42

GEAR,96T,HCR.

3233543

$251.19

43

RING,RETAINING

3233537

$6.99

44

SPROCKET,14/22T

3233538

Unavailable

45

COVER,CTR.DRIVE BRG.

3233263

Unavailable

46

RING,RETAINING

3233306

$4.79

47

SHAFT,PINION,13T

3233540

$159.99

48

BUSHING,GARLOCK

3233541

$23.99

49

WASHER,THRUST

3233542

$11.32

50

DEFLECTOR,OIL

3233043

$13.19

51

CHAIN,SILENT,34P

3233036

Unavailable

52

SHAFT,INPUT,HI/REV.HCR.EXT.

3233536

$220.49

53

PIPE,KNOCK

3233529

$7.99

54

Screw

3233252

$5.27

55

BUSHING,PIVOT

3233527

$35.19

56

Washer

3233035

Unavailable

57

Plug

3233448

$23.99
