Description

Price

1

BOLT(10)

7512325

$2.39

2

DISC,BRAKE,NOTCHED

5211869

Unavailable

3

SEAL, FR. HUB

3610019

$35.99

4

Plate, Armature

5211148

$23.99

5

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281 (Splined Drive Shaft)

1520214

$354.99

6

BRG,TAPER.ROLL.CONE

3554506

$31.99

6

BRG,TAPER.ROLL.CONE

3554506

$31.99

7

BRG,TAPER,ROLL CUP

3554507

$31.99

7

BRG,TAPER,ROLL CUP

3554507

$31.99

8

STUD(10)

7515523

$3.19

9

HUB ASM,SHRT(3-LOBE)W/BRG RACE (Incl. 3,7,8)

1520243

Unavailable

10

Cage, Roll

3250028

$218.56

11

ROLLS

3250010

$35.99

12

SPRING,GARTER

3250032

$17.59

13

SPACER Substituted by 1321814

3250031

$24.99

14

Cam

3250030

$198.48

15

PLUG,PIPE

7052045

$12.79

16

TIRE,23X7-10,TITAN (23x7-10)

5411264

Unavailable

17

WASHER

7556004

$7.19

18

COTTER PIN(10)

7661401

$1.49

19

O RING

5410470

$2.41

20

CAP,HUB,3-LOBE,AWD

5432611

$14.39

21

SCREW(10)

7512027

$1.49

22

NUT, SLOTTED(10)

7542810

$3.19

23

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

24

RIM,FRONT,SILVER

1520207-117

Unavailable

25

VALVE-RIM

1525017

$5.59

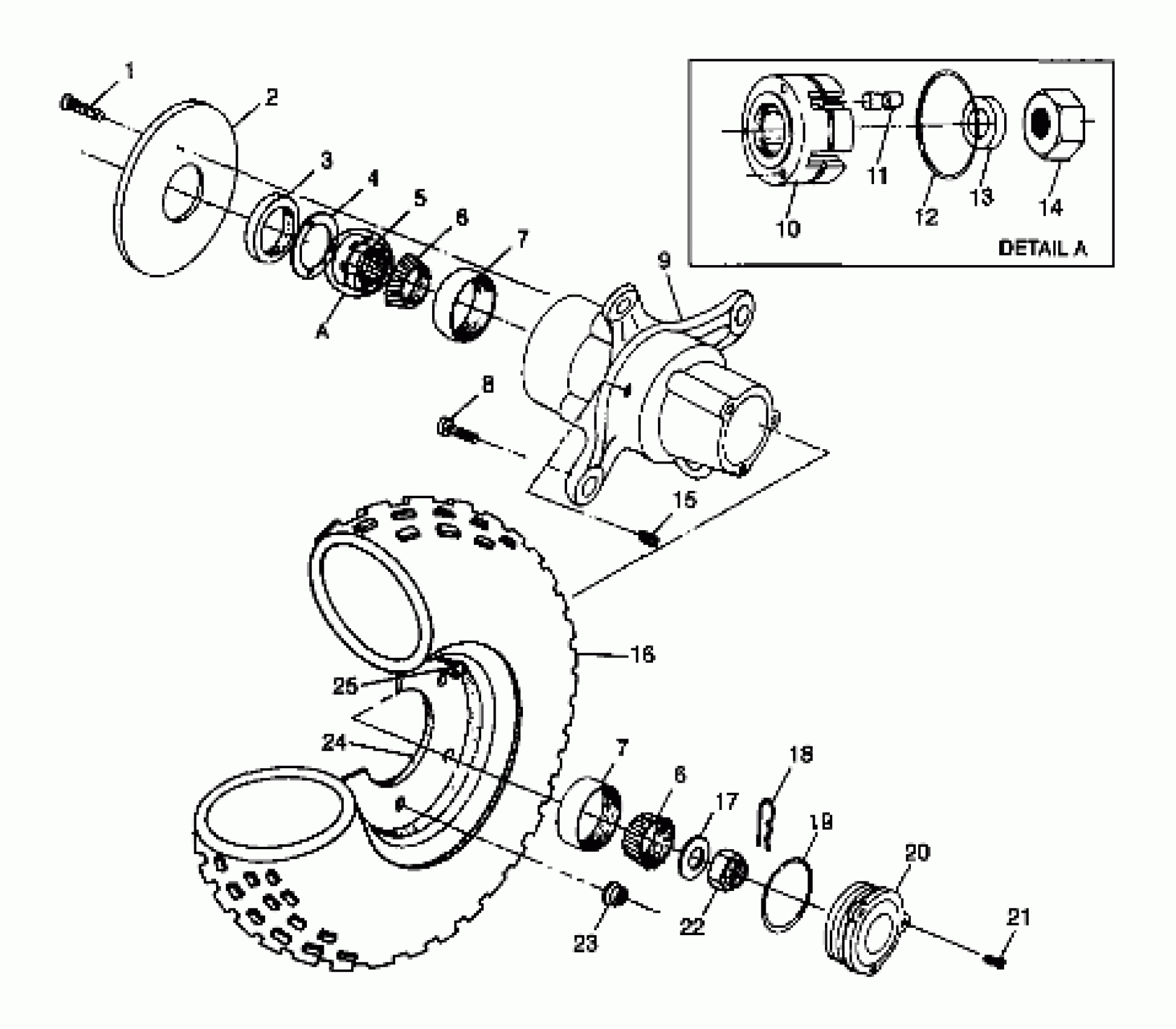

Polaris SCRAMBER 500 - W98BC50A FRONT WHEEL - W98BC50A (4944994499b006) Diagram

BOLT(10)

DISC,BRAKE,NOTCHED

SEAL, FR. HUB

Plate, Armature

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281 (Splined Drive Shaft)

BRG,TAPER.ROLL.CONE

BRG,TAPER.ROLL.CONE

BRG,TAPER,ROLL CUP

BRG,TAPER,ROLL CUP

STUD(10)

HUB ASM,SHRT(3-LOBE)W/BRG RACE (Incl. 3,7,8)

Cage, Roll

ROLLS

SPRING,GARTER

SPACER Substituted by 1321814

Cam

PLUG,PIPE

TIRE,23X7-10,TITAN (23x7-10)

WASHER

COTTER PIN(10)

O RING

CAP,HUB,3-LOBE,AWD

SCREW(10)

NUT, SLOTTED(10)

NUT-HXFL-3/8-24 B ZTB P-A

RIM,FRONT,SILVER

VALVE-RIM
