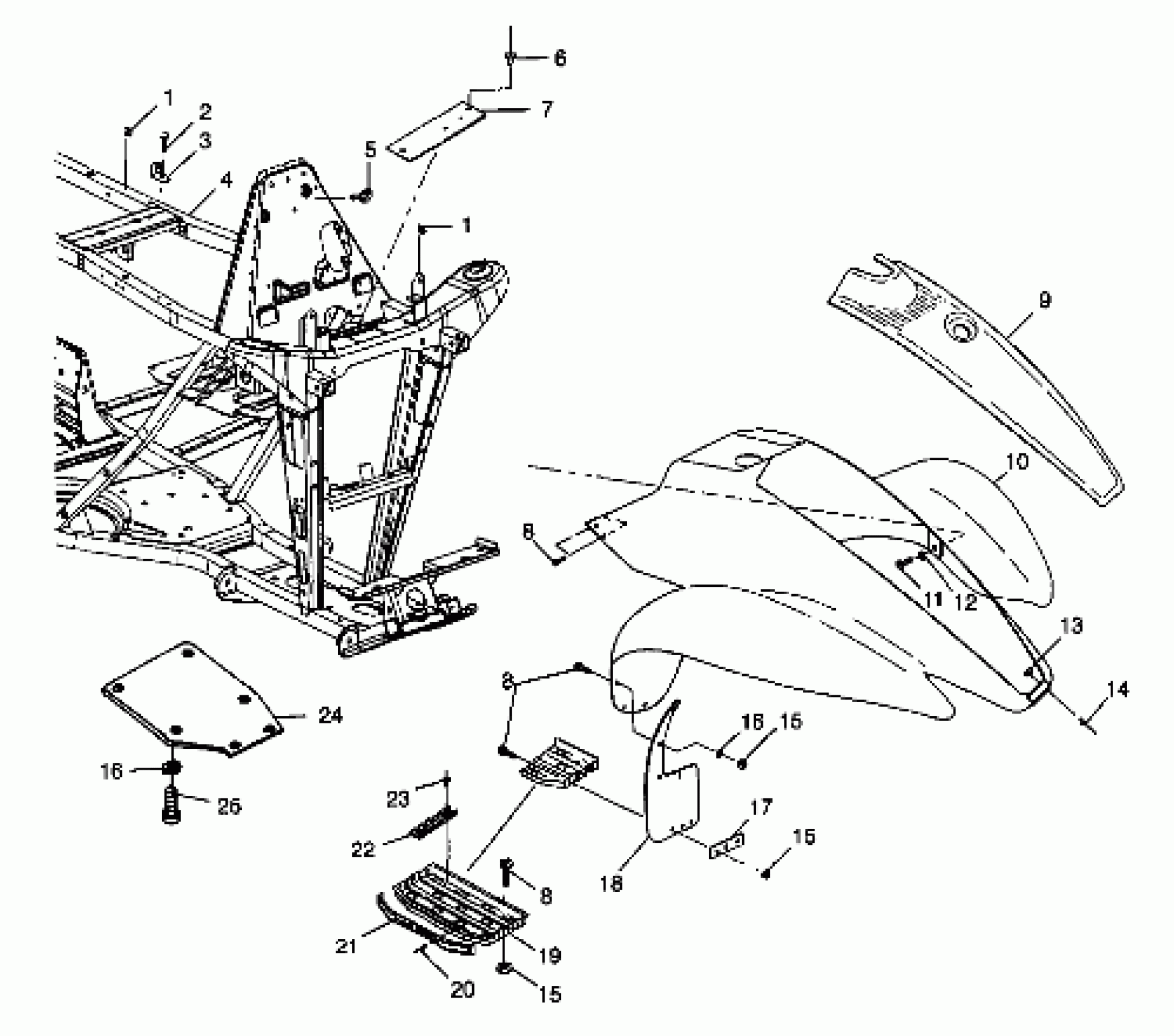

Polaris SCRAMBER 500 - W98BC50A FRONT CAB - W98BC50A (4944994499a005) Diagram

#

Description
Price

1

NUT, SPEED(10)

7670060

$3.97

1

NUT, SPEED(10)

7670060

$3.97

2

BOLT(10)

7512232

$1.19

3

BRKT,CAB MOUNT,GEN III,BLK.

5224718-067

$4.92

4

FRAME,MAIN,SCR 500,BLK

1040614-067

Unavailable

5

CLAMP,WIRE ROUTING(10)

7080409

$2.38

6

RIVET,3/16X.402(50)

7621432

$1.19

7

STRAP,MTG,FUELPUMP

5211547-067

Unavailable

8

BOLT, BLACK(10)

7512282

Unavailable

8

BOLT, BLACK(10)

7512282

Unavailable

8

BOLT, BLACK(10)

7512282

Unavailable

9

COVER,FR(SCRBLR500)BLK

5432553-070

Unavailable

10

CAB ASM,FR,PUR.WAVE (w/Warning Decals)

2631925-214

Unavailable

11

SCREW(10)

7522026

$4.76

12

WASHER(10) Substituted by 7558301

7555776

$1.19

13

WASHER, FLAT(10)

7558201

$5.79

14

RIVET [No Longer Available]

7621471

Unavailable

15

NUT-LOCK(10)

7542122

$1.19

15

NUT-LOCK(10)

7542122

$1.19

15

NUT-LOCK(10)

7542122

$1.19

16

WASHER, FLAT(10)

7555859

$1.19

16

WASHER, FLAT(10)

7555859

$1.19

17

BRKT, LH MUD FLAP (3 Hole)

5211131-067

Unavailable

18

MUDFLAP,RH,FR.HYBRID

5850150

Unavailable

18

MUDFLAP,LH,FR.HYBRID Substituted by 5811771

5850149

$49.99

19

FOOTPAD,LH,ALUM,HYBRID,BLK.

1040691-067

$69.84

20

RIVET,(50)

7661825

$0.63

21

Trim, Footrest

5431484

Unavailable

22

BRKT,HEEL CLEAT,BLK

5242525-067

$16.35

23

RIVET(50)

7621472

$1.49

24

GUARD,ROCK

5432763

$109.99

25

SCREW(10)

7515179

$2.38
