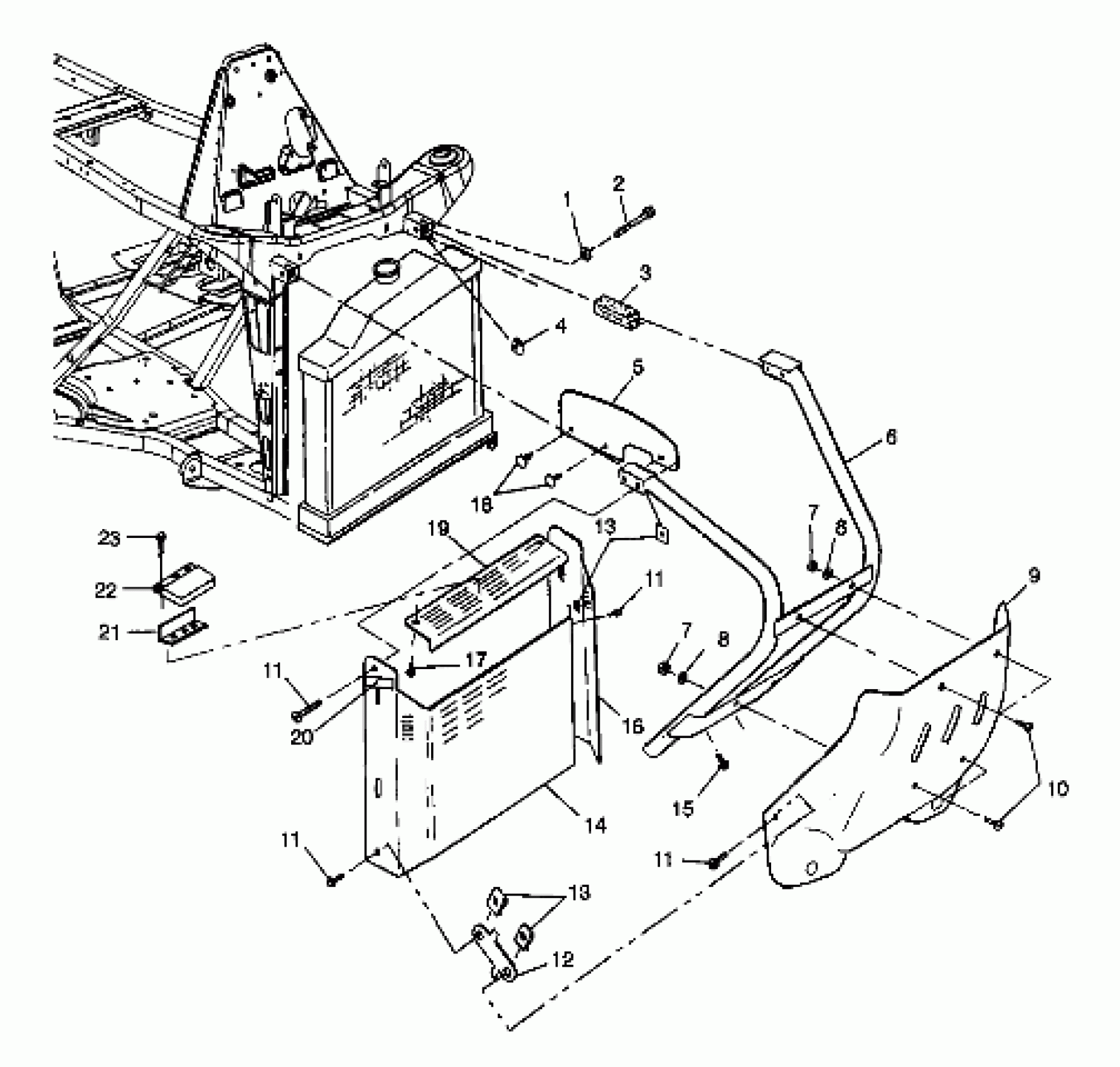

Polaris SCRAMBER 500 - W98BC50A FRONT BUMPER and SHIELDS - W98BC50A (4944994499a007) Diagram

#

Description
Price

1

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

2

BOLT(10)

7512329

$3.99

3

PLUG,FRAME,FOAM

5811675

Unavailable

4

NUT

7547071

$5.59

5

SHIELD,LH,DEFLECTOR

5850140

Unavailable

5

SHIELD,RH,DEFLECTOR

5850141

$9.91

6

BUMPER,FRONT,BLK

1040725-067

Unavailable

7

NUT-LOCK(10)

7542122

$1.49

7

NUT-LOCK(10)

7542122

$1.49

8

WASHER, FLAT(10)

7555859

$1.49

8

WASHER, FLAT(10)

7555859

$1.49

9

PLATE,SKID,BUMPER,BLK

5432378-070

$92.39

10

Screw

7517264

$3.99

11

SCREW

7517561

$1.59

11

SCREW

7517561

$1.59

11

SCREW

7517561

$1.59

11

SCREW

7517561

$1.59

12

BRKT,RADIATOR SHIELD,BLK

5242694-067

Unavailable

13

NUT,U-TYPE(10)

7547085

$3.03

13

NUT,U-TYPE(10)

7547085

$3.03

14

SHIELD,RH,RAD.SIDE,BLK. Substituted by 5245343-067

5242997-067

Unavailable

15

SCREW(10)

7515399

$1.49

16

SHIELD,LH,RAD.SIDE,BLK. Substituted by 5245342-067

5242996-067

Unavailable

17

SCREW(10)

7512252

Unavailable

18

CLIP-PLASTIC DART, NYLON

7670088

$1.59

19

SHIELD,UPPER RADIATOR,BLK Substituted by 5245344-067

5242683-067

Unavailable

20

REFLECTOR ASM,AMBER

2670134

$9.70

21

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

22

RECTIFIER,FULL WAVE

4060173

Unavailable

23

HEATSINK RECT.

5131036

Unavailable
