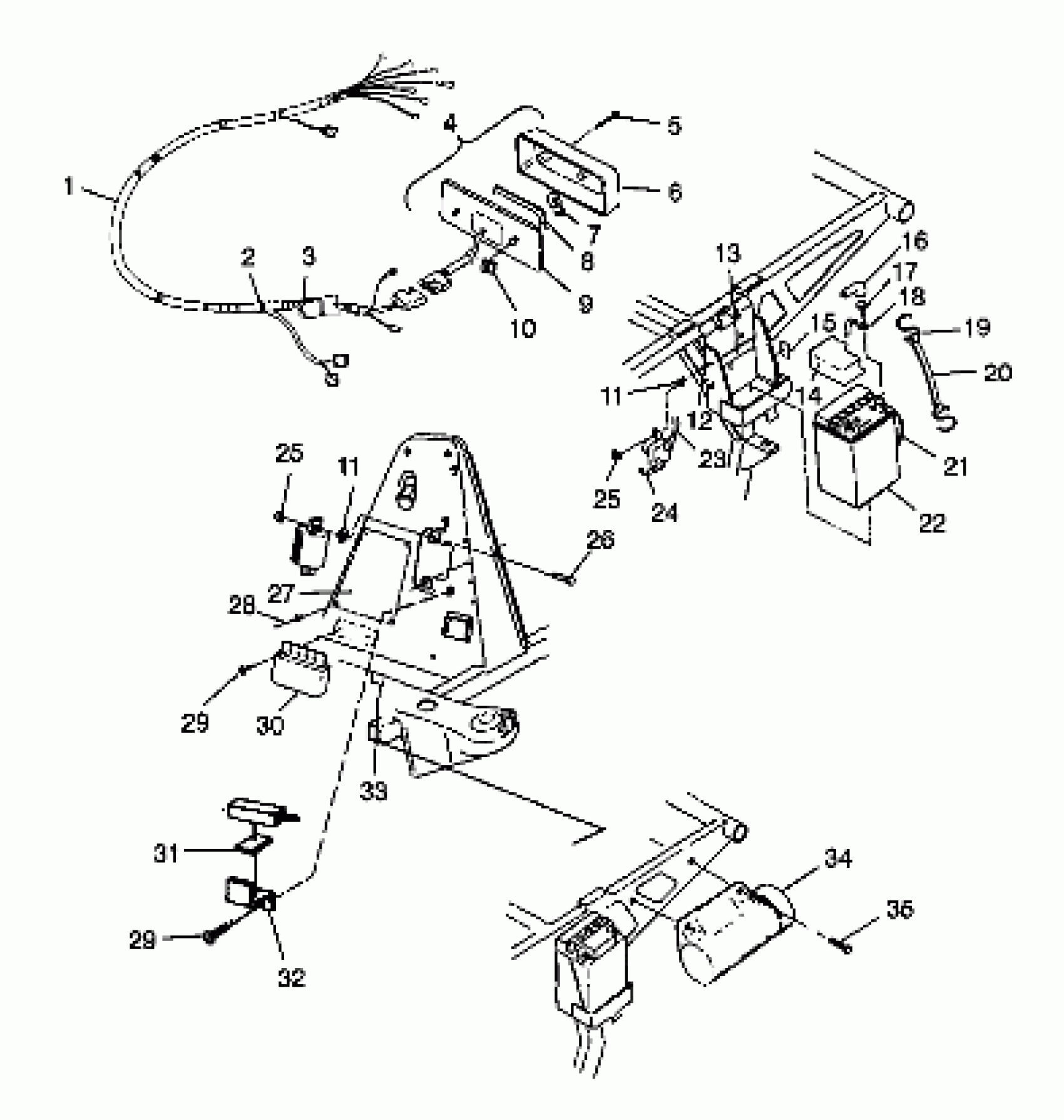

Polaris SCRAMBER 500 - W98BC50A ELECTRICAL/TAILLIGHT - W98BC50A (4944994499c008) Diagram

#

Description
Price

1

HARNESS-MAIN WIRE

2460544

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

CKT.BREAKER,20 AMP.

2434012

Unavailable

4

LIGHT,TAIL/BRAKE (Incl. 5-9)

2432038

$84.98

5

SCREW,TAIL LIGHT

7512088

$1.64

6

LENS,STOP&T/L.

4032085

$36.41

7

BULB,TAILLIGHT

4030043

$6.46

8

GASKET,T/L&STOP/L

4032086

Unavailable

9

BACKING,(STOP&TAIL)

4032087

Unavailable

10

CLIP, RETAINER(10)

7670093

Unavailable

11

WASHER(10)

7571602

$4.76

11

WASHER(10)

7571602

$4.76

12

SCREW(10)

7512027

$1.19

13

PAD-BATTERY

5810290

$7.27

14

COVER,BATTERY

5431769

$15.37

15

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

16

INSULATOR-CABLE

5410346

$7.73

17

BOLT,BATT,KIT(SHORT)

2200361

Unavailable

18

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

19

HOOK-BATT.H/D(10)

7010032

$1.59

20

STRAP,BATTERY HOLDDOWN

5410424

$4.84

21

TUBE,BATTERY VENT

5432077

$8.89

22

Battery

4140006

$99.99

23

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

24

CABLE,SOL/STARTER

4010093

$48.56

25

NUT(10)

7541925

$0.79

25

NUT(10)

7541925

$0.79

26

SCREW(10)

7512007

$3.97

27

BOARD, TERMINAL Substituted by 4040063

4040064

Unavailable

28

RIVET,(50)

7621336

$1.59

29

SCREW,(10)

7512024

$4.76

29

SCREW,(10)

7512024

$4.76

30

LIMITER,RPM,LR-83,HUB GROUND

4060205

$81.46

31

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

32

BRACKET-CDI

5241416

$5.71

33

EDGE TRIM - BLACK Substituted by 5521131

8360012

$44.51

34

TOOLBOX ASM. Substituted by 2632221

2620087

Unavailable

34

LID COVER,TOOLBOX Substituted by 2620087

5431973

Unavailable

34

GASKET,TOOLBOX LID

5811079

Unavailable

35

BOLT(10)

7512232

$1.19
