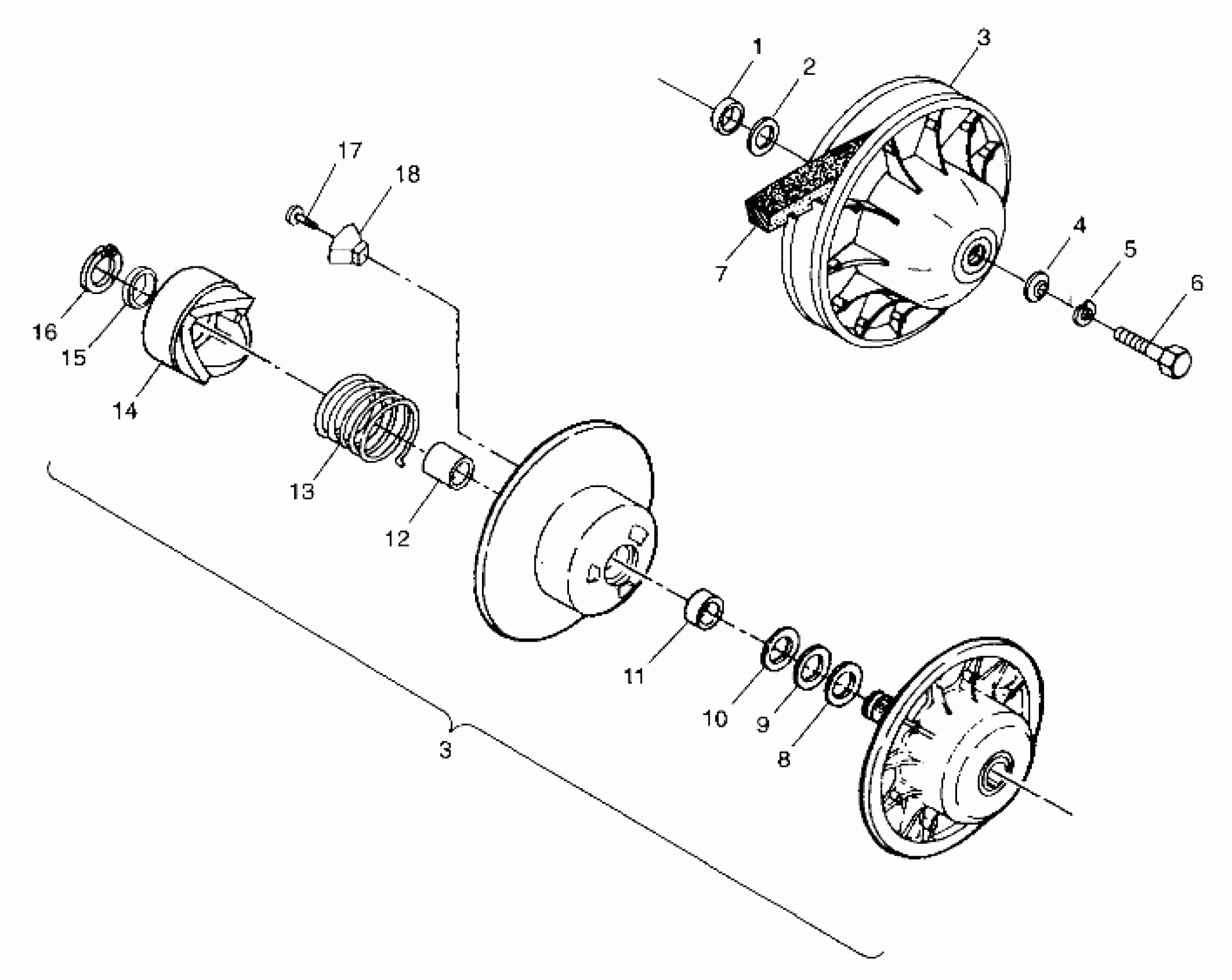

Polaris SCRAMBER 500 - W98BC50A DRIVEN CLUTCH - W98BC50A (4944994499b014) Diagram

#

Description
Price

1

SPACER,DRIVEN,ATV

5010409

Unavailable

2

BUSHING(10)

7556401

Unavailable

3

CLUTCH,DRVN,SILVER,40DEG (Incl. 8-18)

1321798

Unavailable

3

CLUTCH,DRVN,SILVER,40DEG (Incl. 8-18)

1321798

Unavailable

4

WASHER, DOMED(10)

5220646

$2.39

5

LOCK WASHER(10)

7552901

$1.49

6

BOLT(10)

7515382

$2.39

7

BELT-DRIVE(5) Substituted by 3211077

3211048

Unavailable

8

WASHER(10) (.020 Spacer)

7555898

Unavailable

9

WASHER(10) (.025 Spacer)

7556076

Unavailable

10

WASHER(10)

7556804

Unavailable

11

BUSHING, DRIVEN

3576504

$23.99

12

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

13

SPRING,CLUTCH,SVR.

7041499

$56.65

14

RAMP,STA.MACH,HVY RET

5131446

$87.99

15

SPACER(10)

5210752

$1.59

16

RING,RET.

7710448

$3.19

17

BOLT(10)

7511854

$1.49

18

BUTTON,RAMP

5430766

Unavailable
