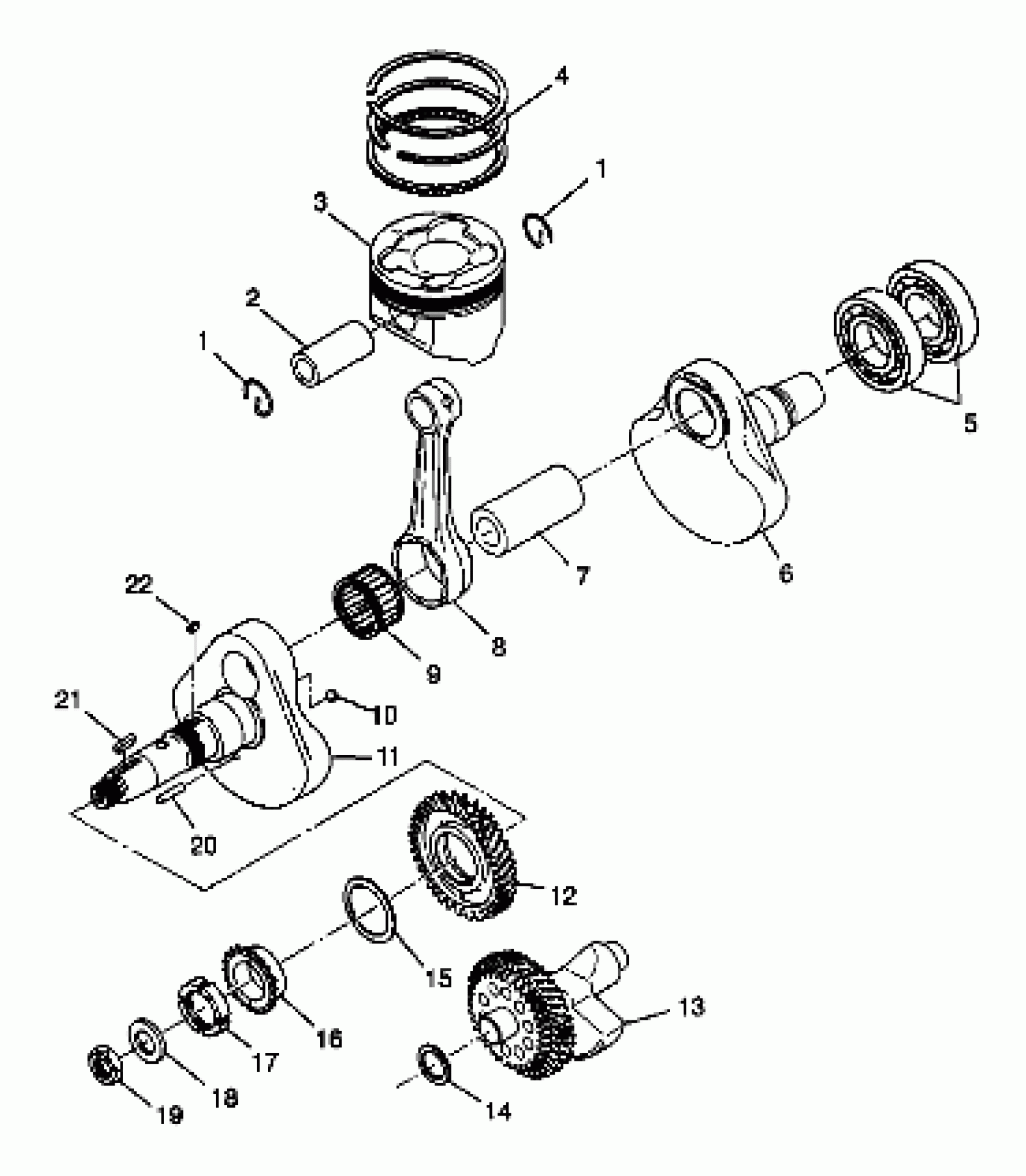

Polaris SCRAMBER 500 - W98BC50A CRANKSHAFT and PISTON - W98BC50A (4944994499d004) Diagram

#

Description
Price

1

CLIP(10)

3085534

Unavailable

1

CLIP(10)

3085534

Unavailable

2

BEARING, BALL

3080676

$39.99

3

PISTON SET(STD) (Std) (Incl. 1)

3085866

Unavailable

3

PISTON,SET(.25 O/S) (.010"/0.25mm O/S) (Incl. 1)

3085867

Unavailable

3

PISTON,SET(.50 0/S) (.020"/0.50mm O/S) (Incl. 1)

3085868

Unavailable

4

RING SET,(STD) * (Std)

3085379

Unavailable

4

RING SET,(.25MM/.010 OS) (.010"/0.25mm O/S)

3085380

Unavailable

4

RING SET,(.50MM/.020 OS) (.020"/0.50mm O/S)

3085381

Unavailable

5

BEARING,BALL

3085815

$43.99

6

DESC NOT_AVAILABLE

3085863

Unavailable

7

Pin, Crank

3085341

Unavailable

8

DESC NOT_AVAILABLE

3085864

Unavailable

9

BEARING,LARGE END Substituted by 3085343

3085400

$78.56

10

BALL, STEEL

3085024

$5.59

11

CRANKSHAFT (Incl. 6-12,20)

3085861

Unavailable

11

Crankshaft 1

3085945

Unavailable

12

BALANCER,GEAR,1 *

3085852

Unavailable

13

SHAFT,BALANCER Substituted by 3086837

3085814

Unavailable

14

SPACER (1.2)

3084897

$6.39

14

SPACER (0.8)

3084895

$6.39

14

SPACER (1.0)

3084896

$6.39

15

SPACER (1.2)

3084894

$19.99

15

SPACER (0.6)

3240088

$10.39

15

SPACER (1.0)

3084893

$19.99

15

SPACER (0.8)

3084892

$12.79

16

SPROCKET 1

3084882

Unavailable

17

NUT,SLIT

3085528

$35.99

18

WASHER Substituted by 3086767

3083904

Unavailable

19

LOCKNUT

3083905

Unavailable

20

Pin, Dowel

3085346

Unavailable

21

KEY

3081447

Unavailable

22

KEY, WOODRUFF,(10)

3240168

$19.99
