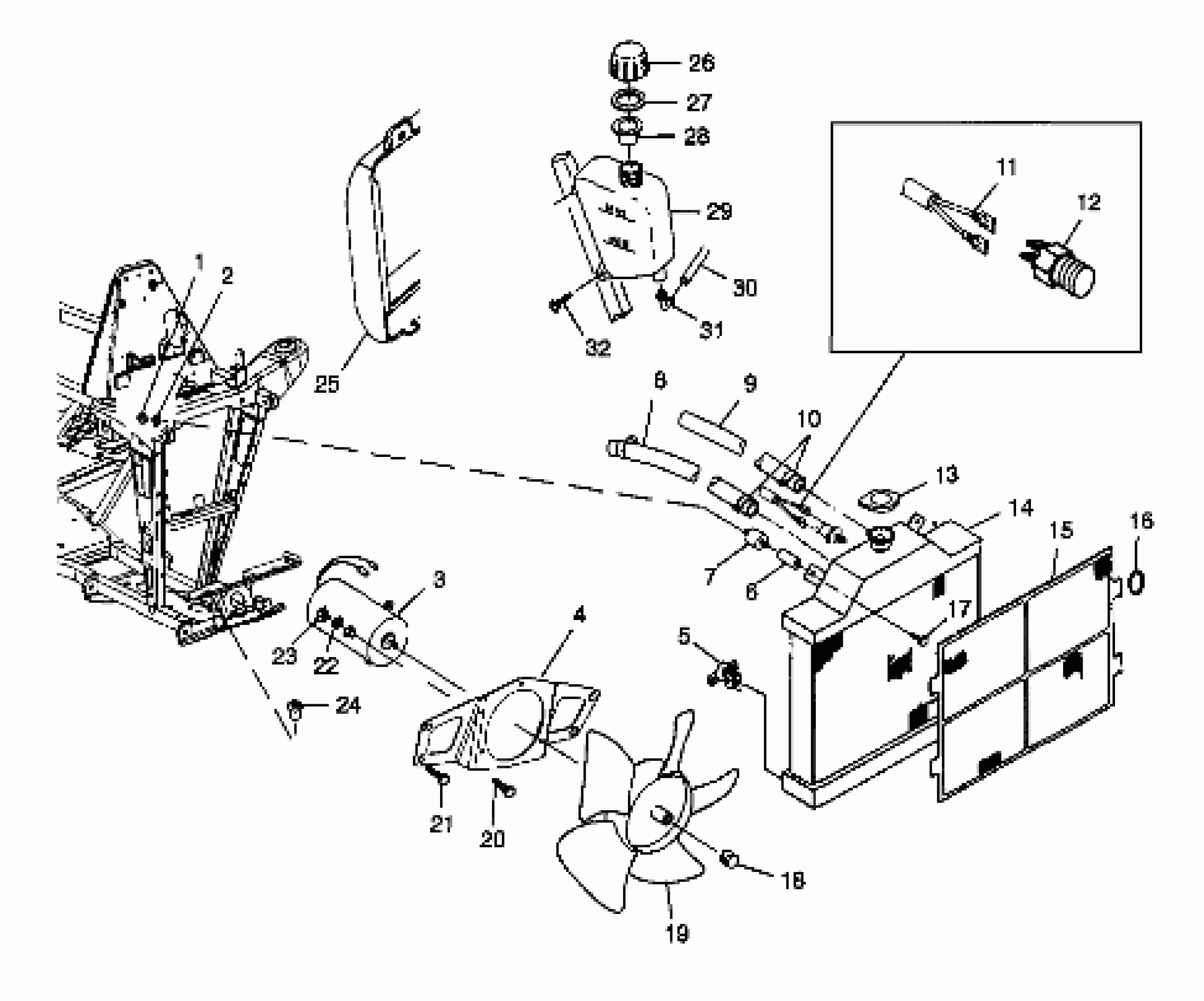

Polaris SCRAMBER 500 - W98BC50A COOLING SYSTEM - W98BC50A (4944994499a009) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.49

2

WASHER(10)

7558301

$1.49

3

MOTOR,FAN,D-SHAFT,STD

2410121

$259.99

4

BRKT.COOL.FAN,BLK

5241355-067

Unavailable

5

VALVE,DRAIN COCK

7052181

Unavailable

6

SPACER,RADIATOR MNT

5020937

Unavailable

7

Mount, Rubber

3110032

$7.99

8

HOSE, WATER Substituted by 8450050-305

8450050-63

Unavailable

9

HOSE,CHAFE-PROTECTED

5411108

Unavailable

10

CLAMP,HOSE,(10)

7080614

$7.19

11

HARNESS,FAN/THERM.SWITCH

2460515

Unavailable

12

SWITCH-THERMAL,4 STROKE,500CC

4010202

$71.99

13

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

14

RADIATOR,"U"FLOW

1240015

Unavailable

15

COVER,RADIATOR,W/MESH

5431610

Unavailable

16

O RING

5410607

$5.99

17

SCREW(10)

7515133

$3.99

18

CLAMP-FAN BLADE [No Longer Available]

7080680

Unavailable

19

BLADE,FAN,NYLON,8"

5242550

Unavailable

20

SCREW

7517221

$1.83

21

BOLT(10)

7512232

$1.49

22

WASHER, FLAT(10)

7558201

$5.79

23

Nut

7547004

$4.79

24

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

25

SHROUD,FAN,(ATV)

5432593

Unavailable

26

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

27

GASKET-OVERFLOW CAP

5810279

$2.41

28

PLUG,CAP Substituted by 5433774

5431895

Unavailable

29

Tank, Surge

5431673

Unavailable

30

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

31

FITTING,90 DEGREE

7052065

$7.19

32

SCREW(10)

7512084

$1.49
