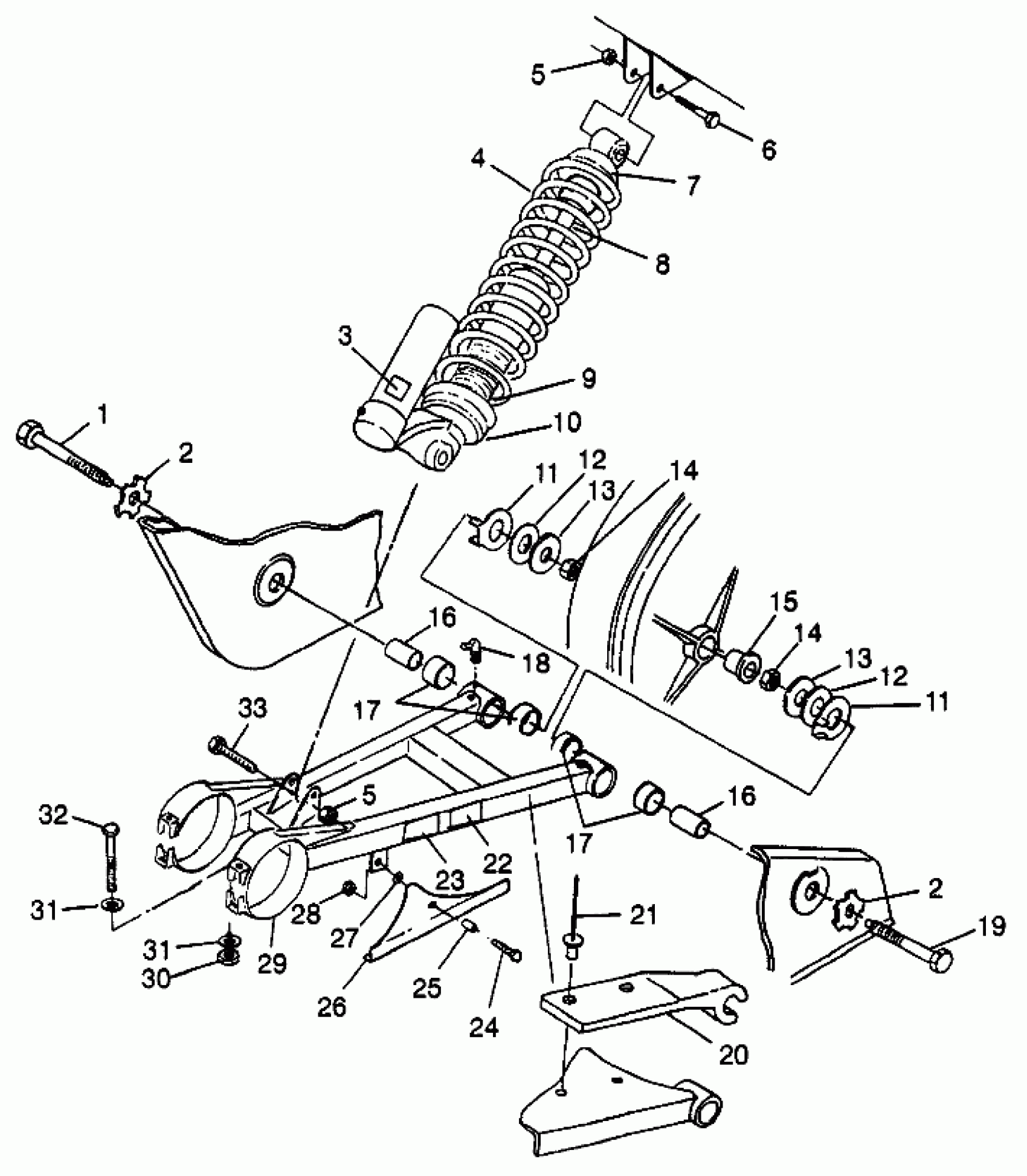

Polaris SCRAMBER 400L - W97BC38C SWING ARM/SHOCK MOUNTING Scrambler 400L W97BC38C (4939893989B014) Diagram

#

Description
Price

1

BOLT, SHOULDER (Short)

7512701

$23.81

2

PLATE,BOLT LOCK

5220958

$36.41

2

PLATE,BOLT LOCK

5220958

$36.41

3

DECAL,WARN.(FOX ATV SHOCK)

7075343

Unavailable

4

SPRING,COMP,BLK.

7041389-067

Unavailable

5

NUT-LOCK(10)

7542439

$1.19

5

NUT-LOCK(10)

7542439

$1.19

6

BOLT(10)

7515415

$1.19

7

RETAINER, SHOCK

5222118

$10.32

8

SHOCK,GAS,RESERVOIR

7041383

Unavailable

9

RETAINER,SPRING,BODY,THREADED

1500063

Unavailable

10

RING,SPRING PRELOAD ADJ.

5431734

$56.65

11

BUSHING

5240952

Unavailable

11

BUSHING

5240952

Unavailable

12

BUSHING Substituted by 5433414

5431977

$19.84

12

BUSHING Substituted by 5433414

5431977

$19.84

13

WASHER(10)

7555911

$4.76

13

WASHER(10)

7555911

$4.76

14

NUT, LOCK(10) (Thin)

7542602

Unavailable

14

NUT, LOCK(10) (Thin)

7542602

Unavailable

15

Bushing, Pivot (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

16

BUSHING,SWING ARM

5020793

$8.73

16

BUSHING,SWING ARM

5020793

$8.73

17

BUSHING,SWING ARM Substituted by 5433417

5431972

$8.73

17

BUSHING,SWING ARM Substituted by 5433417

5431972

$8.73

18

FITTING, LUBE. (45

7080438

$10.32

19

BOLT, SHOULDER (Long)

7512702

Unavailable

20

GUIDE, CHAIN

5431310

$32.37

21

RIVET(50)

7621433

$1.19

22

DECAL,LUBRICATION

7074214

Unavailable

23

DECAL,CHAIN FREE PLAY

7074752

Unavailable

24

SCREW-FLANGED(10)

7515304

$5.56

25

Bushing

5332828

$9.70

26

GUARD, CHAIN

5430776

$36.41

27

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

28

NUT LOCK(10)

7542321

$1.19

29

ARM ASM,SWING

1580088

Unavailable

30

NUT, LOCK,(10)

7542503

$10.32

31

WASHER(10)

7555883

$3.97

31

WASHER(10)

7555883

$3.97

32

BOLT(10)

7512576

$7.94

33

BOLT(10)

7515438

$4.76
