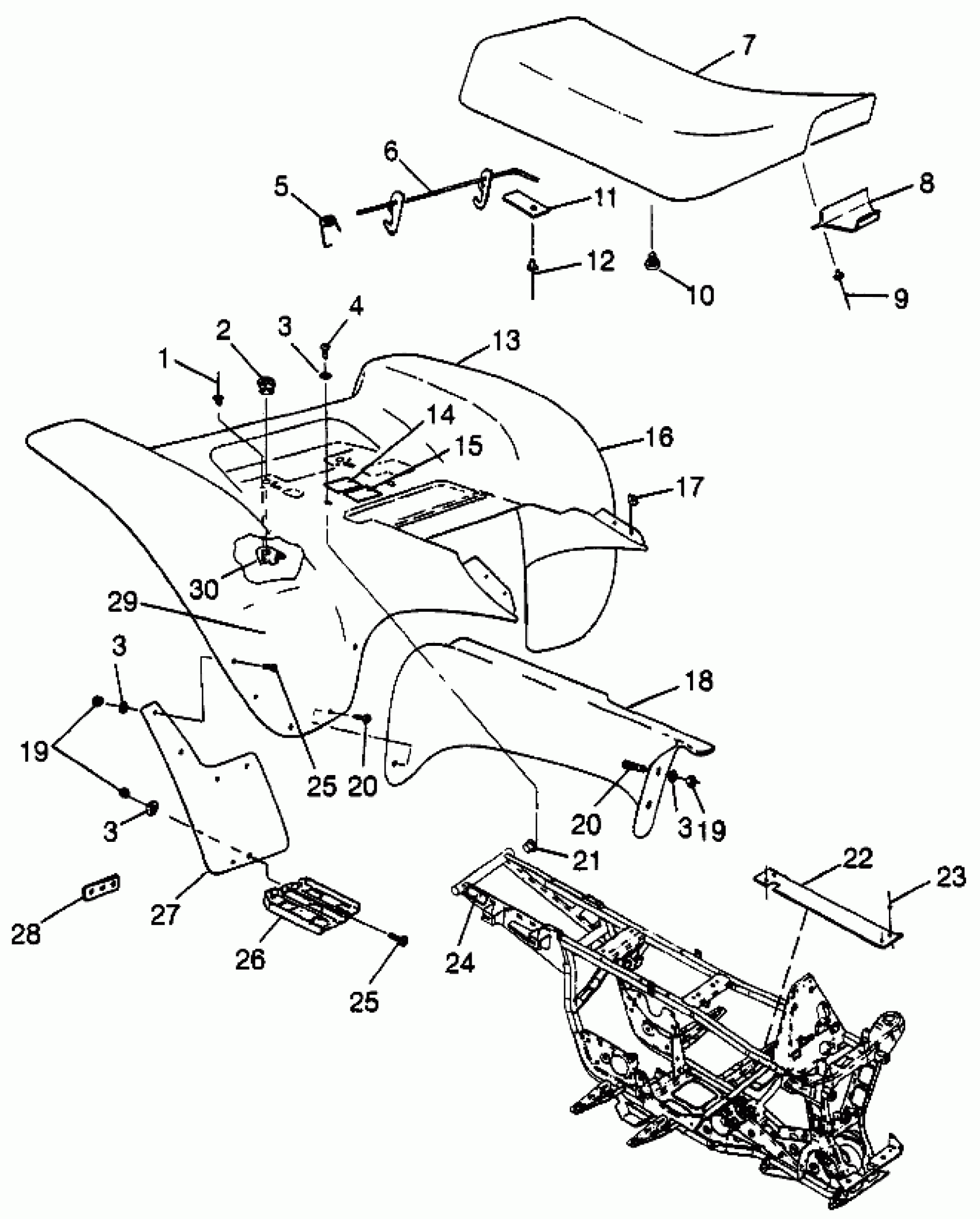

Polaris SCRAMBER 400L - W97BC38C REAR CAB Scrambler 400L W97BC38C (4939893989A006) Diagram

#

Description
Price

1

RIVET,3/16X.402(50)

7621432

$1.19

2

Grommet

5411042

$6.35

3

WASHER, FLAT(10)

7555859

$1.19

3

WASHER, FLAT(10)

7555859

$1.19

3

WASHER, FLAT(10)

7555859

$1.19

3

WASHER, FLAT(10)

7555859

$1.19

4

BOLT(10)

7512232

$1.19

5

SPRING,LATCH,LIGHT

7041607

Unavailable

6

LATCH, SEATBACK

1040412

Unavailable

7

COVER,SEAT,BLK.

2681769-070

Unavailable

7

SEAT ASM,BLK Substituted by 2682361-070

2682320-070

Unavailable

8

TONGUE,SEAT

5431986

$10.51

9

RIVET(50)

7621479

$1.98

10

Bumper, Rubber

5410414

$3.17

11

BRACKET,LEVER RETAINER

5211033

$34.99

12

BLIND RIVET(50)

7621403

$1.19

13

Foil, Rear Cab, Small

5810991

Unavailable

14

DECAL,CARB.INFO.

7073761

Unavailable

15

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

16

CAB,REAR,WHI,GEN III

5432606-133

Unavailable

17

NUT, SPEED(10)

7670057

$1.19

18

FOIL,FOAM

5811113

Unavailable

18

SHIELD,MUFFLER,BLK. Substituted by 2632274

5431869-070

Unavailable

19

NUT-LOCK(10)

7542122

$1.19

19

NUT-LOCK(10)

7542122

$1.19

20

Screw

7517264

$3.97

20

Screw

7517264

$3.97

21

PLUG,ENDCAP(10)

5432047

$4.92

22

GUARD,OUT.CLUTCH,BLK.

5224614-067

Unavailable

23

RIVET,INTERLOCK,B(50)

7661638

$1.19

24

REFLECTOR ASM,RED

2670133

$5.71

25

BOLT, BLACK(10)

7512282

Unavailable

25

BOLT, BLACK(10)

7512282

Unavailable

26

Footpad (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

27

MUDFLAP,LH,REAR

5850122

$13.89

27

MUDFLAP,RH,REAR

5850123

Unavailable

28

BRKT, LH MUD FLAP

5211131-067

Unavailable

29

Foil, Rear Cab

5810957

Unavailable

30

BRKT,R.HOLDDOWN

5220880

Unavailable
