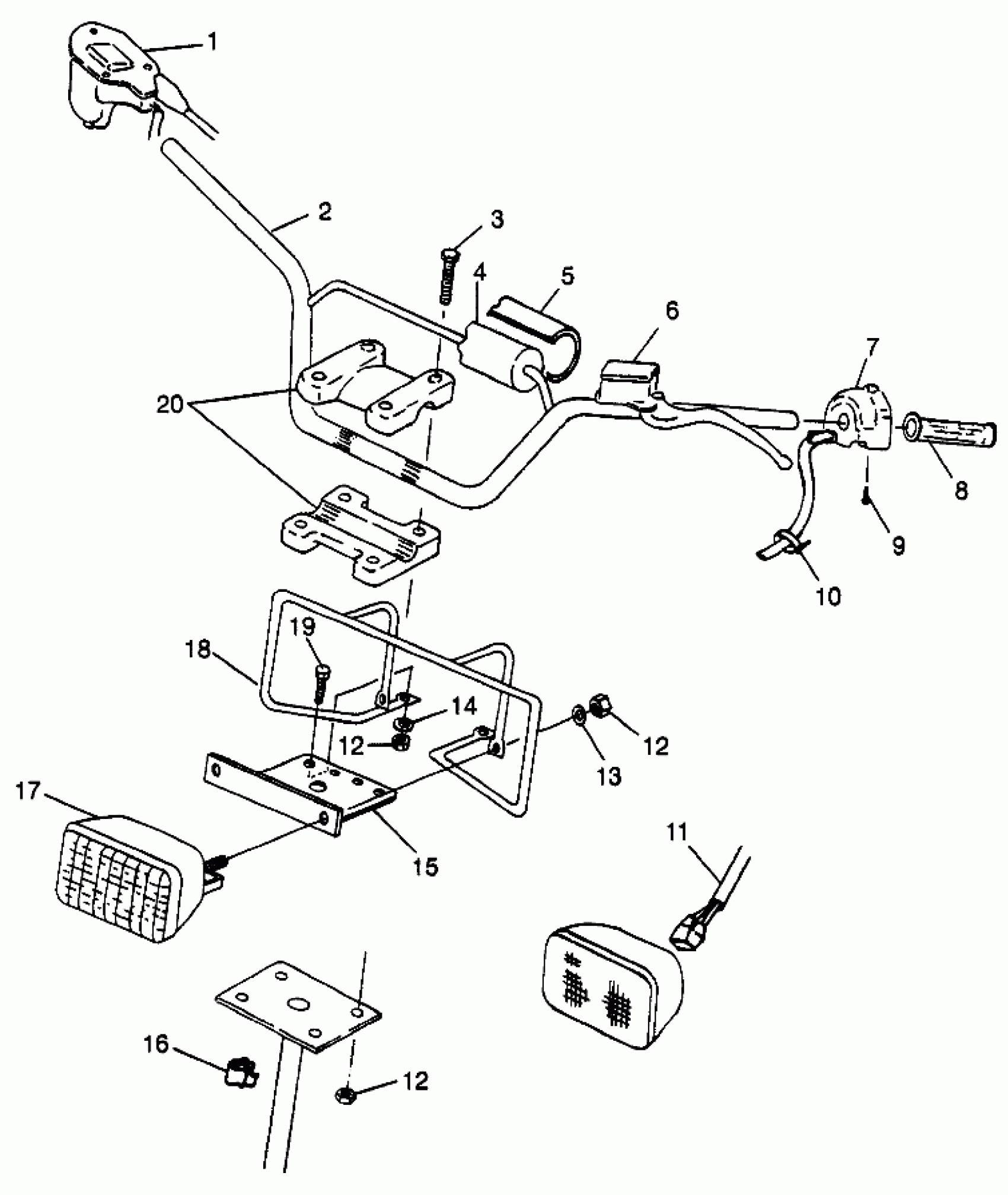

Polaris SCRAMBER 400L - W97BC38C HANDLEBAR/HEADLIGHT Scrambler 400L W97BC38C (4939893989B008) Diagram

Asm., Throttle Control (See Pg. A27, Ref. 5)

-------

Unavailable

HANDLEBAR,BLK. Substituted by 1820594-067

1823173-067

Unavailable

SCREW(10)

7515188

$2.39

Pad, Handlebar

5521181

Unavailable

COVER ASM,H'BAR PAD

2690141

$28.03

Asm., Master Cylinder (See Pg. A28, Ref. 1)

-------

Unavailable

SWITCH,HI/LOW/OFF,LH,H'BAR

4110193

$184.99

GRIP, HANDLEBAR

5431030

$24.27

SCREW

2010055

Unavailable

CLAMP, POLY

7080303

Unavailable

HARNESS,H/L,HI/LO

2460612

Unavailable

NUT(10)

7542124

Unavailable

NUT(10)

7542124

Unavailable

NUT(10)

7542124

Unavailable

WASHER(10) Substituted by 7558402

7555770

Unavailable

WASHER(10) Substituted by 7558301

7555776

Unavailable

BRKT,H/L,BLK

5241973-067

Unavailable

CLIP(10)

7080278

$2.63

BULB,H/L,30/30 W.

4030061

Unavailable

H/L ASM,35/35W,BOTT.MT.

2431016

Unavailable

GUARD,H/L,BLK.

1040579-067

Unavailable

KIT,H'BAR BLOCK (Incl. 3, 12, 20)

2200774

Unavailable

BOLT(10)

7512269

Unavailable

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable
