Description

Price

-

GEARCASE ASM. (Incl. 1-46)

1341167

Unavailable

1

BOLT,(10)

7512265

$3.99

2

WASHER(10)

7555827

$3.99

3

DAMPENER,CARBURETOR

5432082

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

5

STUD

3233025

Unavailable

6

Seal

3233248

$30.88

6

Seal

3233248

$30.88

6

Seal

3233248

$30.88

7

PIPE, KNOCK

3233021

Unavailable

8

FORK,SHIFT,HR

3233231

Unavailable

9

PLUG

3233178

Unavailable

10

SHAFT,SHIFT,WELD/ASM.

3233232

Unavailable

11

O-RING

3233179

Unavailable

12

WASHER

3233119

$7.79

13

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

14

BELLCRANK, HI/REV

3233155

Unavailable

15

Washer

3233054

$6.46

16

Nut

3233055

Unavailable

17

PIN

3233031

$32.11

17

PIN

3233031

$32.11

18

BRACKET

3233030

$21.43

19

SPRING

3233233

Unavailable

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

21

WASHER

3233007

Unavailable

22

DOG,FWD.ENGAGEMENT

3233237

Unavailable

23

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

24

Washer

3233105

$7.19

25

SPKT,19T,FWD.

3233236

Unavailable

26

SCREW Substituted by 3233747

3233033

Unavailable

27

BEARING, NEEDLE

3233103

$31.99

28

GEAR,REVERSE

3233235

Unavailable

29

SHAFT, INPUT

3233181

$214.29

30

DOG,REV.ENGAGEMENT

3233234

Unavailable

31

WASHER

3233099

Unavailable

32

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

33

Screw

3233026

$6.46

34

GEARCASE, LH.

3233095

$298.99

35

BUSHING,SPEEDO.DRIVE

5020741

$9.03

36

BEARING

3233020

$47.99

36

BEARING

3233020

$47.99

37

VALVE,SHOCK

1500032

$4.95

38

GEAR, 65T

3233109

Unavailable

39

SPROCKET, 51T

3233121

Unavailable

40

CHAIN,SILENT,60P (11W)

3233111

$79.19

41

SHAFT, OUTPUT

3233190

Unavailable

42

GEARCASE,RH

3233238

Unavailable

43

Washer

3233035

Unavailable

44

Plug

3233448

$23.99

45

Vent

3233037

Unavailable

46

DIPSTICK Substituted by 3233478

3233115

$24.27

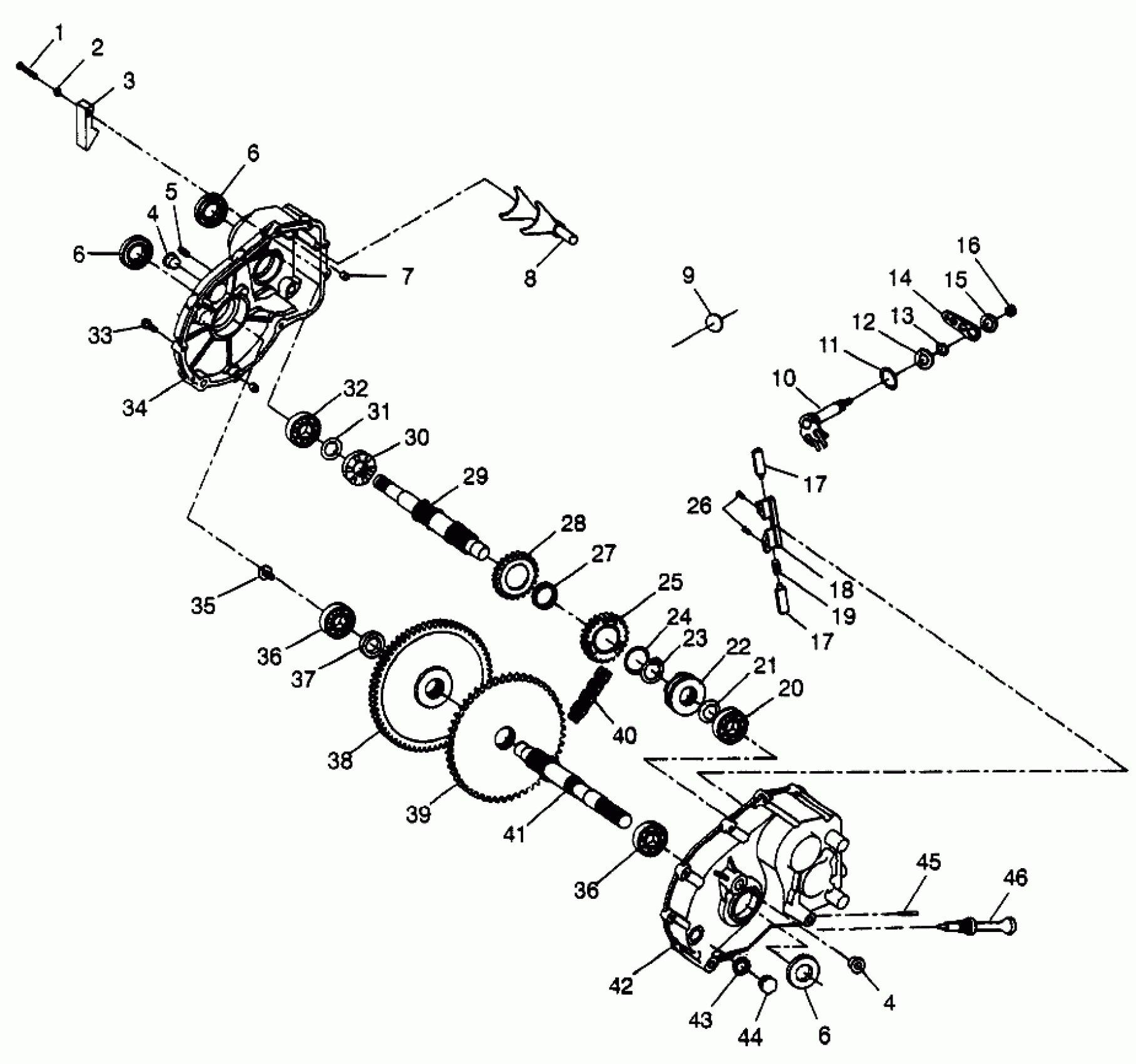

Polaris SCRAMBER 400L - W97BC38C GEARCASE Scrambler 400L W97BC38C (4939893989C009) Diagram

GEARCASE ASM. (Incl. 1-46)

BOLT,(10)

WASHER(10)

DAMPENER,CARBURETOR

BUSHING,PIVOT

BUSHING,PIVOT

STUD

Seal

Seal

Seal

PIPE, KNOCK

FORK,SHIFT,HR

PLUG

SHAFT,SHIFT,WELD/ASM.

O-RING

WASHER

RING,RETAINING BASIC,EXTERNAL 0.75

BELLCRANK, HI/REV

Washer

Nut

PIN

PIN

BRACKET

SPRING

BEARING-BALL,6307 C3,35X80X21

WASHER

DOG,FWD.ENGAGEMENT

RING,RETAINING BASIC,EXTERNAL 0.984

Washer

SPKT,19T,FWD.

SCREW Substituted by 3233747

BEARING, NEEDLE

GEAR,REVERSE

SHAFT, INPUT

DOG,REV.ENGAGEMENT

WASHER

BEARING, BALL, 6205 C3 25X52X15

Screw

GEARCASE, LH.

BUSHING,SPEEDO.DRIVE

BEARING

BEARING

VALVE,SHOCK

GEAR, 65T

SPROCKET, 51T

CHAIN,SILENT,60P (11W)

SHAFT, OUTPUT

GEARCASE,RH

Washer

Plug

Vent

DIPSTICK Substituted by 3233478
