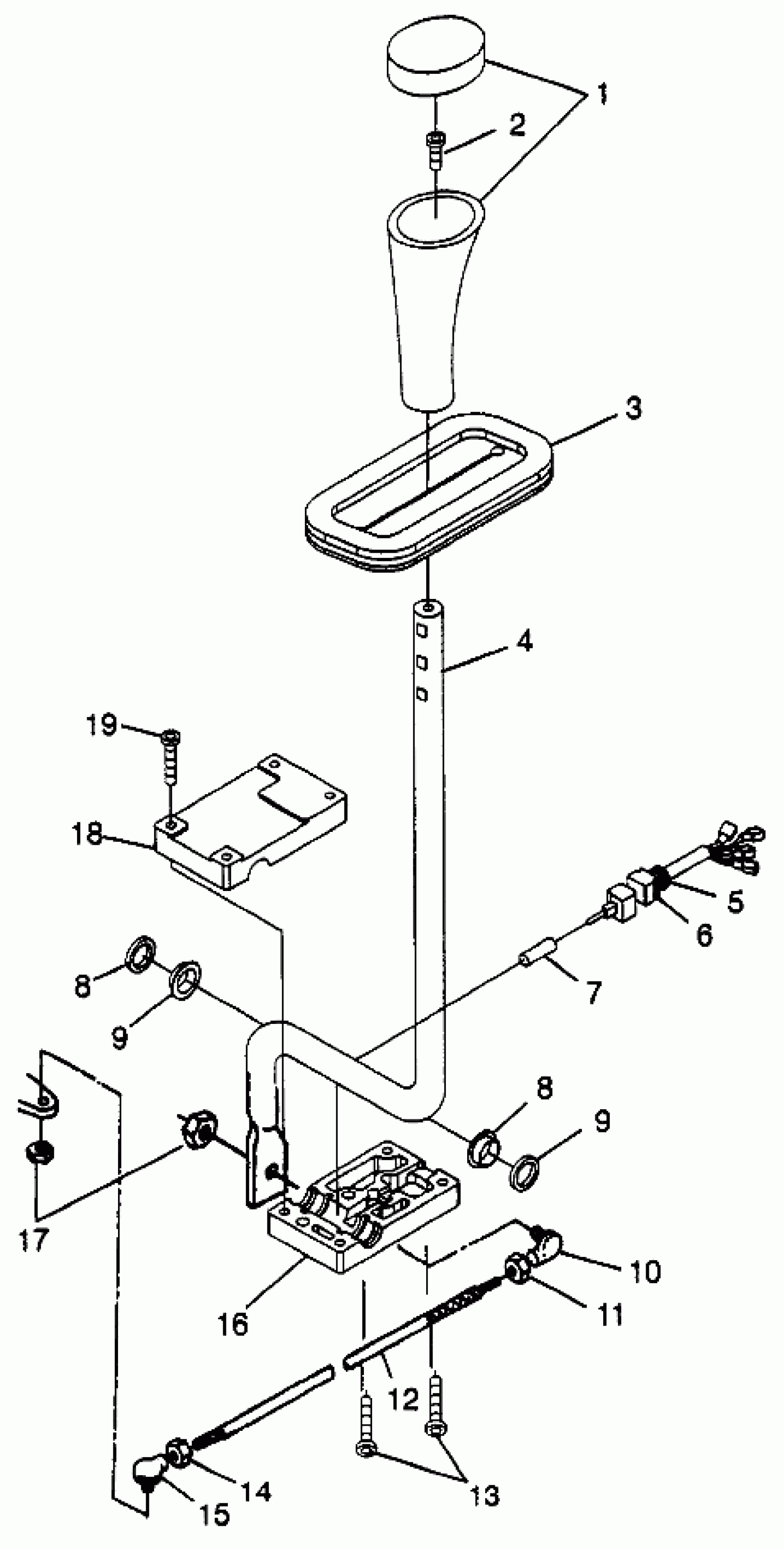

Polaris SCRAMBER 400L - W97BC38C GEAR SELECTOR Scrambler 400L W97BC38C (4939893989C008) Diagram

#

Description
Price

-

SELECTOR ASM,GEAR (Incl. 1-9, 16, 18, 19)

1341144

$126.98

1

KNOB ASM,HI/REV.

3233198

$35.19

2

SCREW,(10)

7512024

$4.79

3

GROMMET,HR SHIFTER

5411008

Unavailable

4

ROD,HR SHIFTER

3233166

Unavailable

5

STRAP, WIRE

3233090

$2.86

6

SWITCH,HR SHIFTER Substituted by 3233210

3233167

Unavailable

7

SWITCH,SENSOR

3233168

Unavailable

8

BEARING

3233169

Unavailable

8

BEARING

3233169

Unavailable

9

O-RING,SHAFT [No Longer Available]

1610030

Unavailable

9

O-RING,SHAFT [No Longer Available]

1610030

Unavailable

10

ROD END,LH,6MM.

7061013

$65.99

11

NUT(10)

7546702

$1.49

12

ROD,SHIFT LINKAGE

5020802

Unavailable

13

SCREW(10)

7515133

$3.99

14

NUT(10)

7546701

$3.99

15

ROD END,RH,6MM.

7061014

$65.99

16

PLATE,BASE,HR SHIFTER

3233170

Unavailable

17

NUT(10) Substituted by 7546703

7546707

Unavailable

18

PLATE,TOP,HR SHIFTER

3233171

Unavailable

19

SCREW Substituted by 3233494

3233064

$1.83
