Partiron

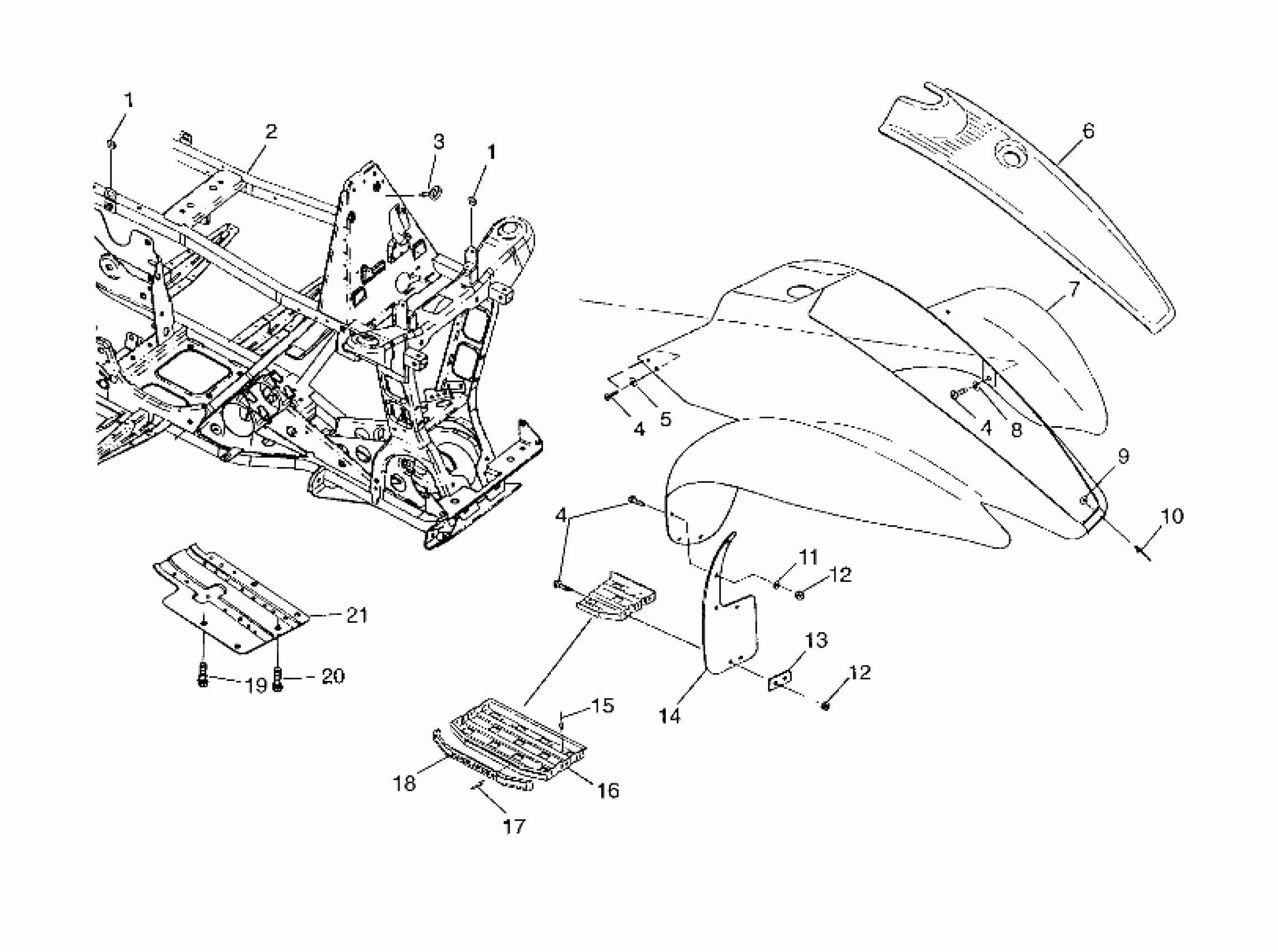

Polaris SCRAMBER 400L - W97BC38C FRONT CAB Scrambler 400L W97BC38C (4939893989A005) Diagram

#

Description
Price

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

2

FRAME,MAIN,(SCRMBLR)

1040573-067

$797.14

3

CLAMP,WIRE ROUTING(10)

7080409

$2.39

4

BOLT, BLACK(10)

7512282

$1.49

4

BOLT, BLACK(10)

7512282

$1.49

5

WASHER,FLAT

7556037

Unavailable

6

COVER,FR,BLK.

5431875-070

Unavailable

7

CAB ASM,FR.,WHITE Substituted by 2631925-133 (White) (w/Warning Decals)

2631666-133

Unavailable

8

WASHER(10) Substituted by 7558301

7555776

Unavailable

9

WASHER, FLAT(10)

7558201

$5.79

10

RIVET [No Longer Available]

7621471

Unavailable

11

WASHER, FLAT(10)

7555859

$1.49

12

NUT-LOCK(10)

7542122

$1.49

12

NUT-LOCK(10)

7542122

$1.49

13

BRKT, LH MUD FLAP (3 Hole)

5211131-067

Unavailable

13

BRKT,RH MUD FLAP (2 Hole)

5211020-067

Unavailable

14

MUDFLAP,LH,FRONT

5850113

$18.59

14

MUDFLAP,RH,FRONT

5850114

$13.99

15

RIVET,INTERLOCK,B(50)

7661638

$1.49

16

FOOTPAD,LH,BLK.

1040410-067

Unavailable

16

FOOTPAD,RH,BLK.

1040411-067

Unavailable

17

RIVET,(50)

7661825

$1.49

18

Trim, Footrest

5431484

Unavailable

19

BOLT(10)

7512232

$1.49

20

SCREW(10)

7512252

Unavailable

21

GUARD,ROCK,BLK

5242016-067

Unavailable
