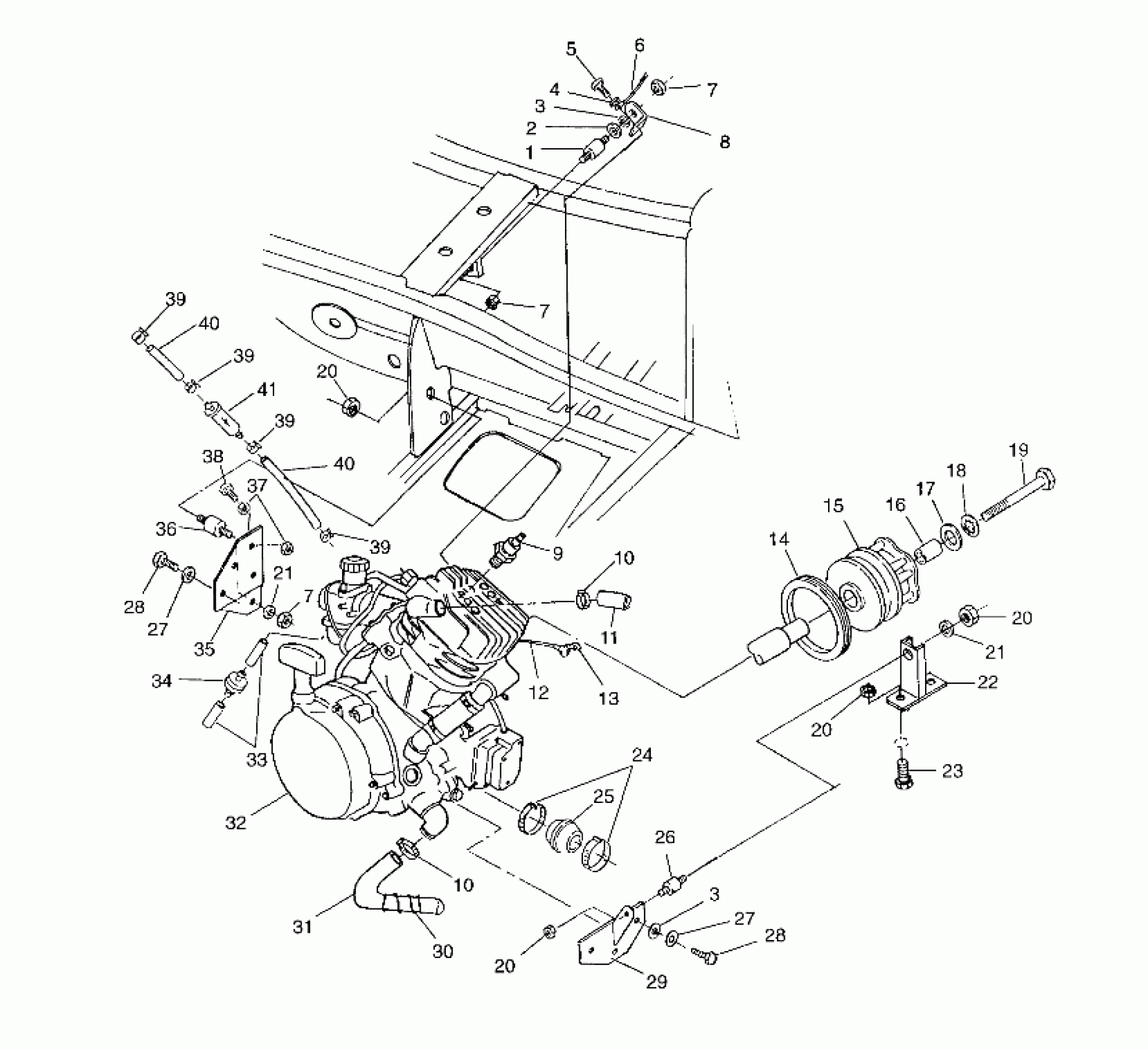

Polaris SCRAMBER 400L - W97BC38C ENGINE MOUNTING Scrambler 400L W97BC38C (4939893989A009) Diagram

#

Description
Price

1

MT.,RUBBER,ENG.

3110038

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

WASHER(10)

7555823

$3.99

3

WASHER(10)

7555823

$3.99

4

LOCK WASHER(10)

7552901

$1.49

5

BOLT(10)

7512232

$1.49

6

CABLE,GND-ENGINE

4010132

Unavailable

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

8

MOUNT,ENG,TOP

5241801-067

Unavailable

9

SPARKPLUG (10)

3070156

$3.99

10

CLAMP,HOSE,(10)

7080614

$7.19

10

CLAMP,HOSE,(10)

7080614

$7.19

11

HOSE,ENG,UPPER

5410570

$44.51

12

CABLE,SOL/START,DBLBOOT

4010129

Unavailable

13

INSULATOR-CABLE

5410346

$6.39

14

Seal, Cover Case (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

15

Asm., Drive Clutch, Basic ATV-06 (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

16

BUSHING-.437 X.770 X.50

5430261

$7.19

17

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

18

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

19

BOLT(10)

7512566

$30.79

20

NUT LOCK(10)

7542403

$3.99

20

NUT LOCK(10)

7542403

$3.99

20

NUT LOCK(10)

7542403

$3.99

20

NUT LOCK(10)

7542403

$3.99

21

WASHER(10)

7555806

$1.49

21

WASHER(10)

7555806

$1.49

22

MOUNT,ENG,LOW,BLK

1040532-067

Unavailable

23

BOLT(10)

7512457

$3.99

24

CLAMP, NARROW BAND(10)

7080511

$4.79

25

BOOT,CLUTCH INTAKE(400)

5410883

$7.99

26

MOUNT,MOTOR

3110026

Unavailable

27

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

27

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

28

SCREW(10)

7512490

$3.99

28

SCREW(10)

7512490

$3.99

29

MOUNT,ENGINE

1040231-067

Unavailable

30

SPRING,HOSE RETAINER

7041079

$4.95

31

HOSE,LOWER ENGINE

5411173

$91.99

32

ENG.(S.B.)EC38PLE-05 [No Longer Available] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization re

3085234

Unavailable

33

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

34

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

35

MOUNT, REAR MOTOR, BLK.

5240542-067

Unavailable

36

MOUNT,RUBBER,ENG.

3110042

Unavailable

37

NUT, JAM(10)

7542432

$3.99

38

MT,TORQUE STOP,RUBBER

3110048

$7.43

39

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

39

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

39

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

39

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

40

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

40

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

41

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65
