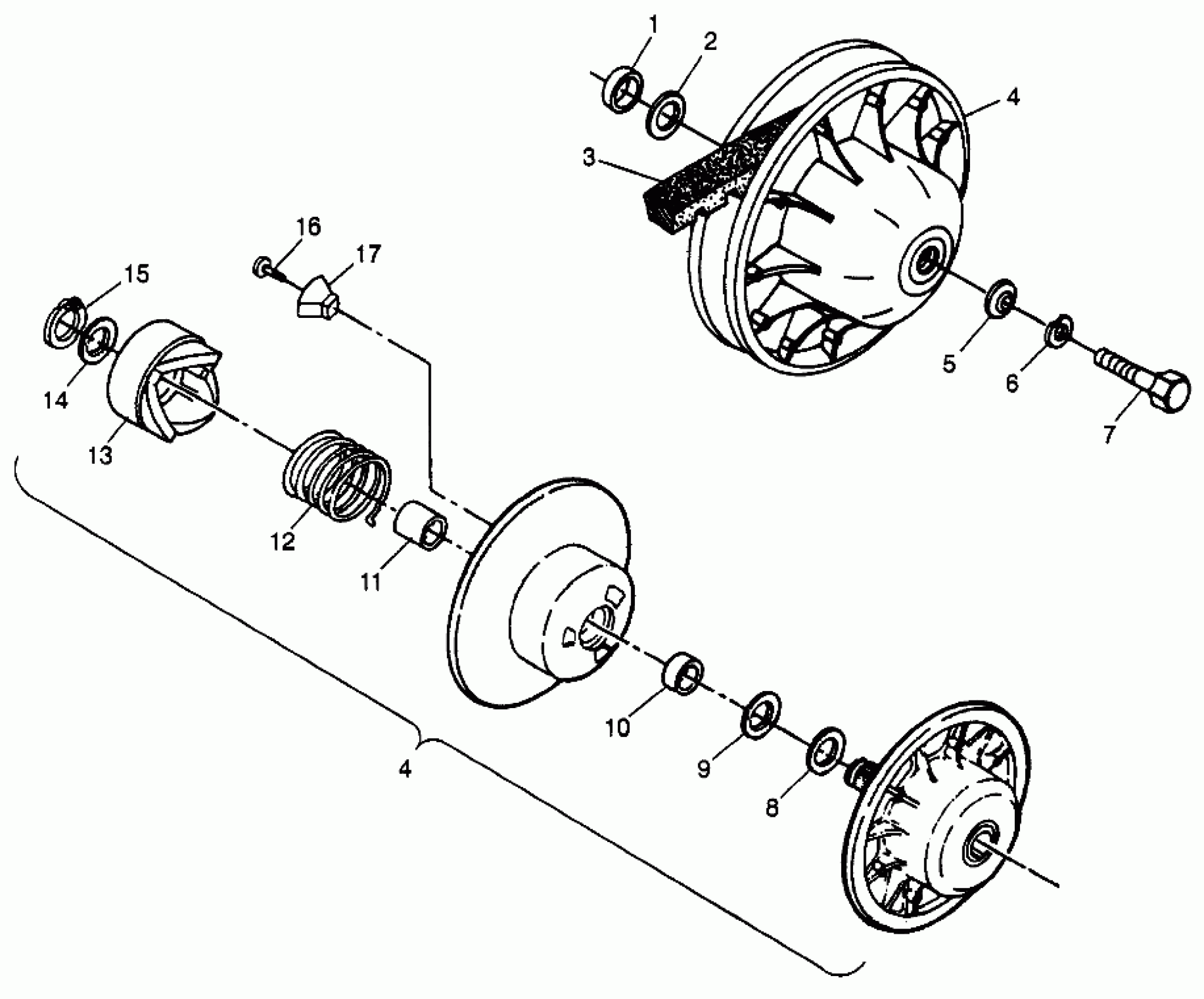

Polaris SCRAMBER 400L - W97BC38C DRIVEN CLUTCH Scrambler 400L W97BC38C (4939893989C002) Diagram

#

Description
Price

1

SPACER,DRIVEN CLUTCH

5010379

Unavailable

2

BUSHING(10) (3 Max)

7556401

Unavailable

3

BELT-DRIVE(5) Substituted by 3211077

3211048

Unavailable

4

CLUTCH,DRIVEN,HVY RET (Incl. 8-11, 13-17)

1322180

$614.99

4

CLUTCH,DRIVEN,HVY RET (Incl. 8-11, 13-17)

1322180

$614.99

5

WASHER, DOMED(10)

5220646

$2.39

6

LOCK WASHER(10)

7552901

$1.49

7

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

8

WASHER(10)

7555898

Unavailable

9

WASHER(10)

7556804

Unavailable

10

BUSHING, DRIVEN

3576504

$23.99

11

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

12

SPRING,CLUTCH,(RED)

7041198

$52.60

13

RAMP,STA.MACH,HVY RET

5131446

$87.99

14

SPACER(10)

5210752

$1.59

15

RING,RET.

7710448

$3.19

16

BOLT(10)

7511854

$1.49

17

BUTTON,RAMP

5430766

Unavailable
