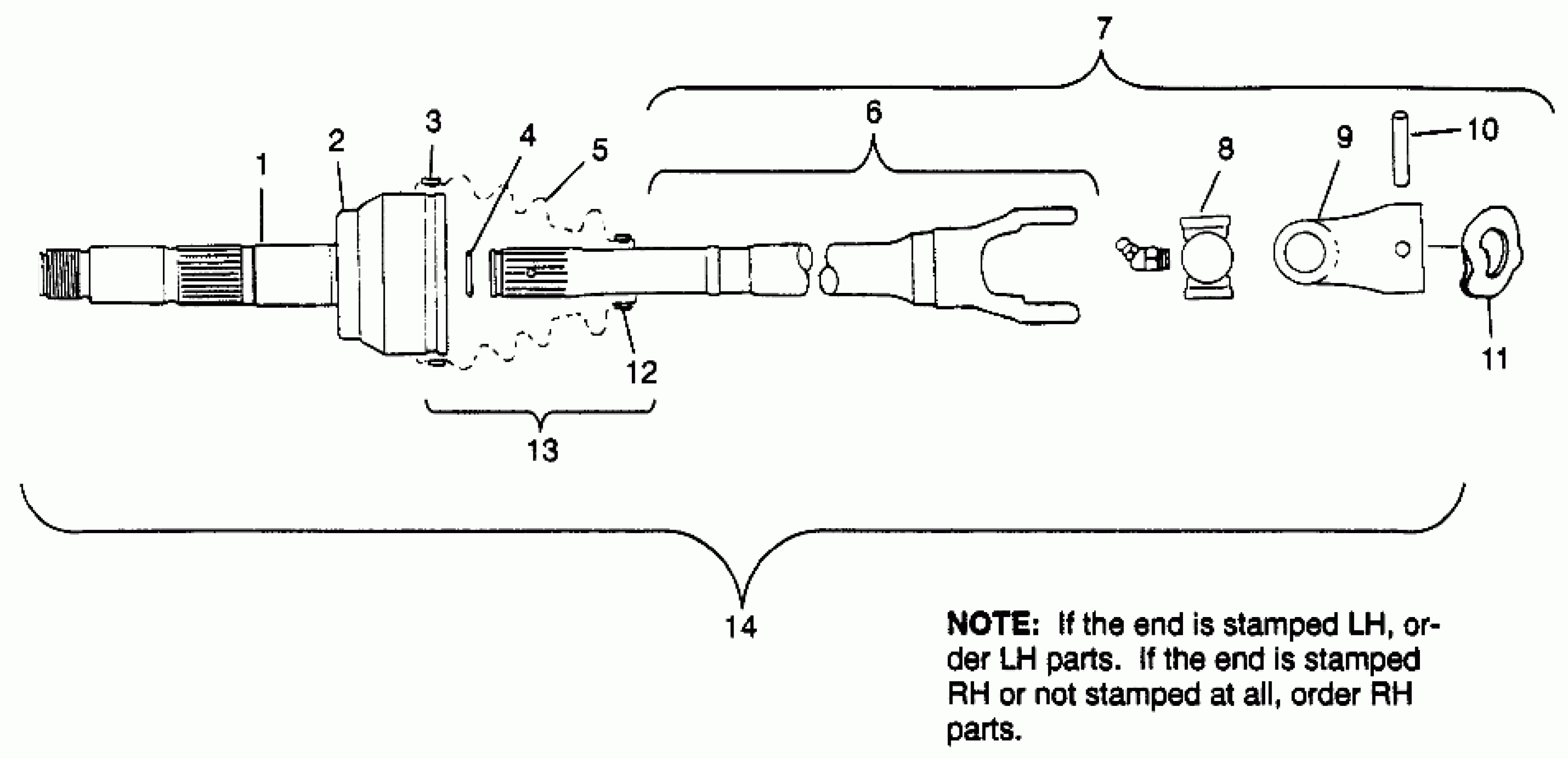

Polaris SCRAMBER 400L - W97BC38C CV JOINT - BTB PARTS Scrambler 400L W97BC38C (4939893989B003) Diagram

HSG.ASM,CV,RH,W/SLEEVE Substituted by 1380119

1380099

Unavailable

HSG.ASM,CV,LH,W/SLEEVE Substituted by 1380119

1380098

Unavailable

Sleeve, Seal

5222299

$32.37

CLAMP, LARGE(10)

3260115

$9.99

CIRCLIP,DRIVESHAFT,BTB

7670091

Unavailable

Boot, CV Joint

5411106

Unavailable

SHAFT,LONG (Incl. 4)

1380094

$251.74

CARDON WELD,LONG (Incl. 4, 6, 8, 9)

1380092

$251.74

KIT,CROSS&BEARING

2200771

Unavailable

Yoke, Splined

3260130

Unavailable

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.97

WASHER-WAVE(10)

7571605

$6.35

CLAMP, BAND

7080627

Unavailable

KIT,BOOT,CV JOINT,BTB (Incl. 3, 5, 12)

2200773

Unavailable

SHAFT,LH,DRIVE,LONG Substituted by 2200961

1380085

$251.74

SHAFT,RH,DRIVE,LONG Substituted by 2200961

1380086

$251.74
