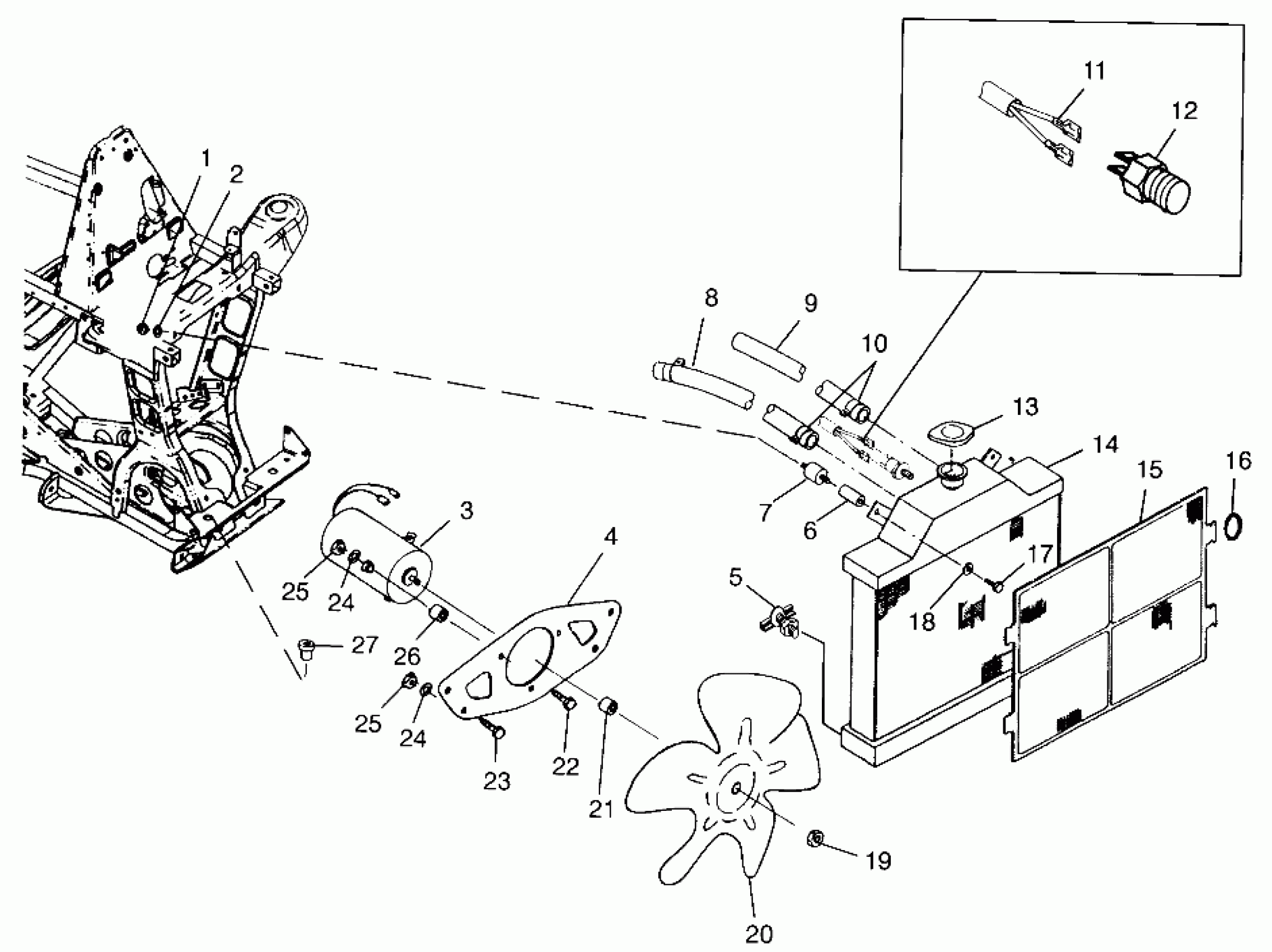

Polaris SCRAMBER 400L - W97BC38C COOLING SYSTEM Scrambler 400L W97BC38C (4939893989A010) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.19

2

WASHER(10)

7558301

$1.19

3

MOTOR,FAN,LIQ.COOLED

4170009

Unavailable

4

BRKT,FAN MOUNT,BLK

5241788-067

$7.38

5

VALVE,DRAIN COCK

7052181

Unavailable

6

Spacer, Mount

5020572

$8.73

7

Mount, Rubber

3110032

Unavailable

8

Hose, Upper Engine (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

9

Hose, Lower Engine (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

10

CLAMP,HOSE,(10)

7080614

$7.14

11

HARNESS,FAN/THERM.SWITCH

2460515

Unavailable

12

SWITCH,THERMAL,FAN,L/C

4110226

Unavailable

13

CAP, RADIATOR Substituted by 2511270

2511189

$24.27

14

RADIATOR,"U"FLOW

1240015

Unavailable

15

COVER,RADIATOR,W/MESH

5431610

Unavailable

16

O RING

5410607

Unavailable

17

WASHER(10)

7552605

$5.69

18

SCREW(10)

7512113

$3.97

19

NUT

7542154

Unavailable

20

BLADE, FAN

5240822

$57.14

21

SPACER

5333457

Unavailable

22

SCREW

7517221

$1.83

23

BOLT(10)

7512232

$1.19

24

WASHER, FLAT(10)

7558201

$5.79

24

WASHER, FLAT(10)

7558201

$5.79

25

Nut

7547004

$4.76

25

Nut

7547004

$4.76

26

SPACER,FAN BRKT.

5432294

$3.97

27

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56
