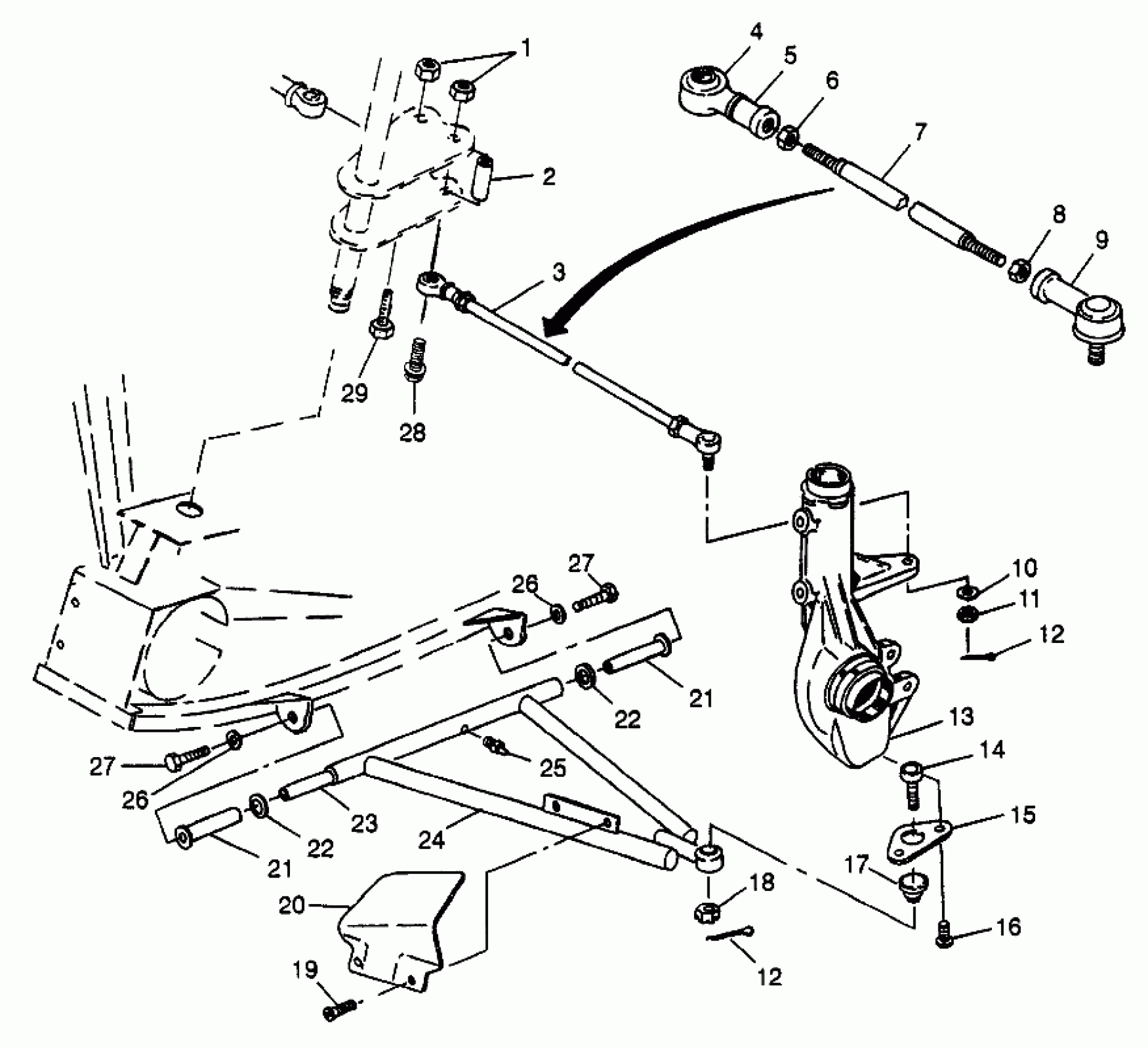

Polaris SCRAMBER 400L - W97BC38C A-ARM/STRUT MOUNTING Scrambler 400L W97BC38C (4939893989B010) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

Unavailable

2

BUSHING

5333367

$6.59

3

TIEROD ASM. Substituted by 1820567 (Incl. 4-9)

1822478

$165.94

4

SEAL,BOOT,ROD END,1/2 IN

5411291

$11.32

5

ROD END Substituted by 7061034

7061019

$60.70

6

NUT-JAM(10)

7542711

$2.38

7

ROD,TIE

5020926

$44.51

8

NUT,LH,JAM(10)

7547028

$2.38

9

ROD END,LH,W/FTG. Substituted by 7061033

7061018

$60.70

10

WASHER(10)

7555806

$0.79

11

NUT, CASTLE(10)

7546904

$4.76

12

PIN COTTER(10)

7661203

$1.19

12

PIN COTTER(10)

7661203

$1.19

13

Asm., Hubstrut (See Pg. A20, Ref. 16)

----

Unavailable

14

BALLJOINT,HI-ANGLE Substituted by 7080927

7080673

$28.32

15

BRACKET-BALL JOINT

5211121

$32.37

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

17

Boot, Rubber

5410548

$4.84

18

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

19

SCREW(10)

7512084

$1.19

20

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

20

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

$24.27

21

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

21

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

22

BUSHING,A-ARM SPACER(10)

5020677

$10.32

22

BUSHING,A-ARM SPACER(10)

5020677

$10.32

23

Shaft, A-Arm

5020681

$33.24

24

KIT,A-FRAME,LH Substituted by 2200627

2200531

$151.99

24

KIT,A-FRAME,RH Substituted by 2200628

2200532

$151.99

25

ZERK,FITTING,THREADED(10)

7080433

$1.19

26

WASHER(10)

7552603

$0.79

26

WASHER(10)

7552603

$0.79

27

BOLT(10) Substituted by 7512492

7515458

$1.19

27

BOLT(10) Substituted by 7512492

7515458

$1.19

28

SCREW(10)

7515554

Unavailable

29

BOLT(10)

7515415

$1.19
