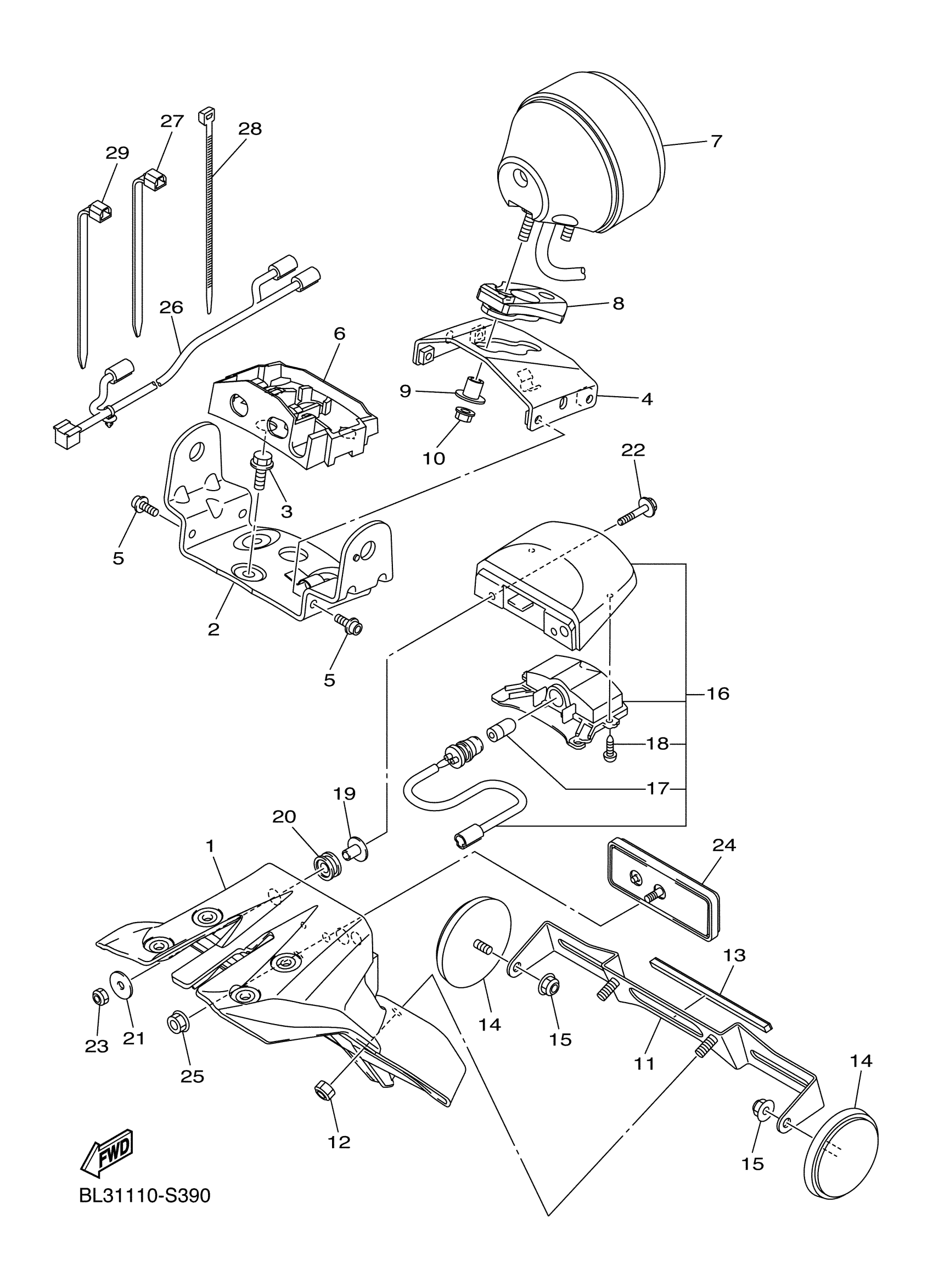

Yamaha SCR95HR (SR950) BL310 2017 TAILLIGHT Diagram

#

Description
Price

1

BRACKET, LICENSE

BL3-21685-00-00

Unavailable

2

STAY, FLASHER 1

BL3-83368-00-00

Unavailable

3

BOLT, FLANGE

95817-06014-00

Unavailable

4

STAY, FLASHER 2

BL3-83369-00-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD

90110-05076-00

$0.38

6

DAMPER, TAIL 1

BL3-84736-00-00

Unavailable

7

TAILLIGHT ASSY

BL3-84700-00-00

Unavailable

8

DAMPER, TAIL 1

1TP-84736-00-00

$7.99

9

COLLAR

90387-06161-00

$8.49

10

Nut

90179-06054-00

Unavailable

11

BRACKET, LICENSE

BL3-84751-00-00

Unavailable

12

NUT, SELF-LOCKING

95617-06100-00

$8.49

13

DAMPER 5

5RU-2837J-00-00

$2.34

14

REFLECTOR, REAR 1

449-85131-02-00

$30.99

15

NUT, S/L FLANGE

95607-05200-00

$9.49

16

LICENCE LIGHT UNIT ASSY

32C-84745-01-00

Unavailable

17

BULB

4SV-84347-00-00

Unavailable

18

SCREW, PAN TAP.2 SLIT

97707-40612-00

Unavailable

19

COLLAR

90387-05036-00

Unavailable

20

DAMPER

4WM-83513-00-00

Unavailable

21

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

22

SCREW, WITH WASHER

90159-05035-00

Unavailable

23

NUT, U

95617-05100-00

Unavailable

24

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

25

NUT, FLANGE

95702-05500-00

Unavailable

26

CORD, TAILLIGHT

BL3-84717-00-00

Unavailable

27

CLAMP(4FM)

90464-15195-00

Unavailable

28

BAND

3MA-82591-00-00

Unavailable

29

CLAMP

90464-13077-00

Unavailable
