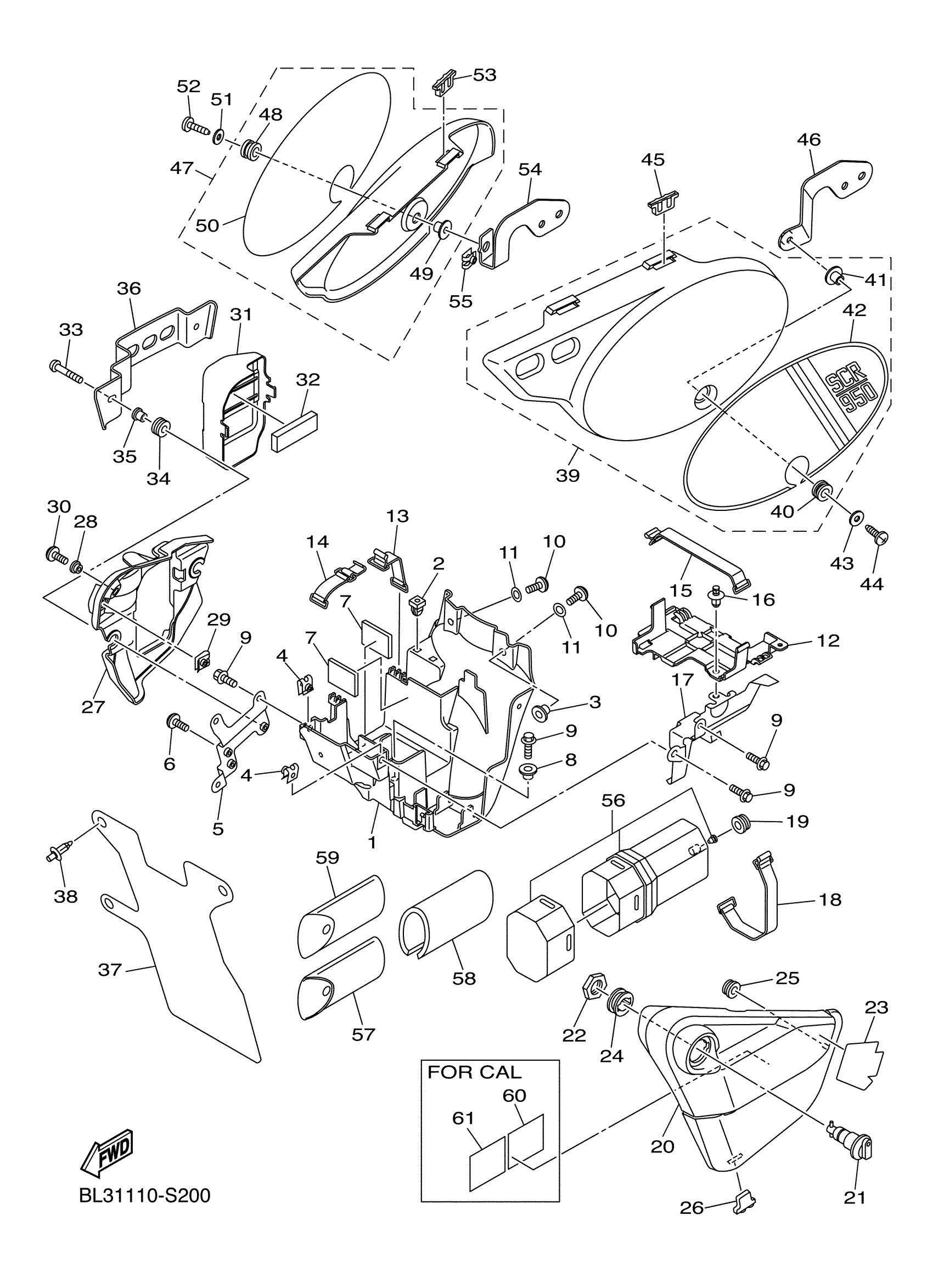

Yamaha SCR95HR (SR950) BL310 2017 SIDE COVER Diagram

#

Description
Price

1

BOX, BATTERY

1TP-2177G-00-00

Unavailable

2

GROMMET

90480-07003-00

Unavailable

3

COLLAR

90387-06239-00

Unavailable

4

NUT, SPRING

90183-060A6-00

$5.49

5

STAY, SIDE COVER 1

1TP-2172E-00-00

Unavailable

6

BOLT, BUTTON HEAD

92017-06012-00

$7.49

7

DAMPER

5S7-2139X-00-00

Unavailable

8

COLLAR

90387-06267-00

Unavailable

9

BOLT, FLANGE

95022-06014-00

$3.14

10

BOLT, BUTTON HEAD

92012-06014-00

$8.49

11

WASHER, PLATE(3SX)

90201-062P7-00

$5.60

12

BOX

1TP-2177A-01-00

Unavailable

13

BAND, BATTERY

3TJ-82131-00-00

$22.99

14

BAND, BATTERY

1TP-82131-00-00

Unavailable

15

BAND,BATTERY

7H3-82131-00-00

$17.49

16

RIVET(4PH)

90269-07077-00

Unavailable

17

HOLDER, TOOL

1TP-28170-00-00

Unavailable

18

BAND,BATTERY

7H3-82131-00-00

$17.49

19

GROMMET

90480-20001-00

Unavailable

20

COVER, SIDE 1

1TP-21711-00-00

Unavailable

21

SIDE COVER LOCK ASSY

55K-21708-00-00

Unavailable

22

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

23

SEAL 1

BL3-21732-00-00

Unavailable

24

GROMMET (1E6)

90480-24186-00

Unavailable

25

GROMMET

90480-13014-00

Unavailable

26

DAMPER, SIDE COVER

2N4-21717-00-00

Unavailable

27

COVER, SIDE 2

1TP-21721-00-00

Unavailable

28

COLLAR

90387-06173-00

Unavailable

29

NUT, SPRING

90183-060A6-00

$5.49

30

BOLT

90111-06038-00

Unavailable

31

COVER, BATTERY

1TP-2124E-00-00

Unavailable

32

DAMPER, LOCATING 1

4D3-24181-00-00

Unavailable

33

BOLT

90111-06030-00

Unavailable

34

GROMMET

90480-14003-00

Unavailable

35

COLLAR(4JW)

90387-0602X-00

Unavailable

36

PLATE

1TP-2176E-00-00

Unavailable

37

COVER

1TP-2172W-00-00

Unavailable

38

RIVET

90269-06008-00

Unavailable

39

SIDE COVER 3

BL3-W2173-00-00

Unavailable

40

GROMMET

90480-14003-00

Unavailable

41

COLLAR(36Y)

90387-067K8-00

Unavailable

42

GRAPHIC 1

BL3-2173E-01-00

Unavailable

43

WASHER, PLATE

90201-06055-00

Unavailable

44

SCREW, OVAL FILLISTER

90146-06021-00

Unavailable

45

DAMPER, SIDE COVER

2N4-21717-00-00

Unavailable

46

STAY, SIDE COVER 1

BL3-2172E-00-00

Unavailable

47

SIDE COVER 4

BL3-W2174-00-00

Unavailable

48

GROMMET

90480-14003-00

Unavailable

49

COLLAR(36Y)

90387-067K8-00

Unavailable

50

GRAPHIC 2

BL3-2173F-01-00

Unavailable

51

WASHER, PLATE

90201-06055-00

Unavailable

52

SCREW, OVAL FILLISTER

90146-06021-00

Unavailable

53

DAMPER, SIDE COVER

2N4-21717-00-00

Unavailable

54

STAY, SIDE COVER 2

BL3-2174E-00-00

Unavailable

55

NUT, SPRING

90183-060A6-00

$5.49

56

TOOL BOX COMP.

BL3-21107-00-00

Unavailable

57

TOOL KIT

B33-28100-01-00

Unavailable

58

DAMPER, PLATE

90520-08003-00

Unavailable

59

TOOL KIT

B33-28100-10-00

Unavailable

60

PLATE, ROUTING

34B-21684-00-00

Unavailable

61

PLATE, ROUTING 2

5RU-21686-00-00

Unavailable
