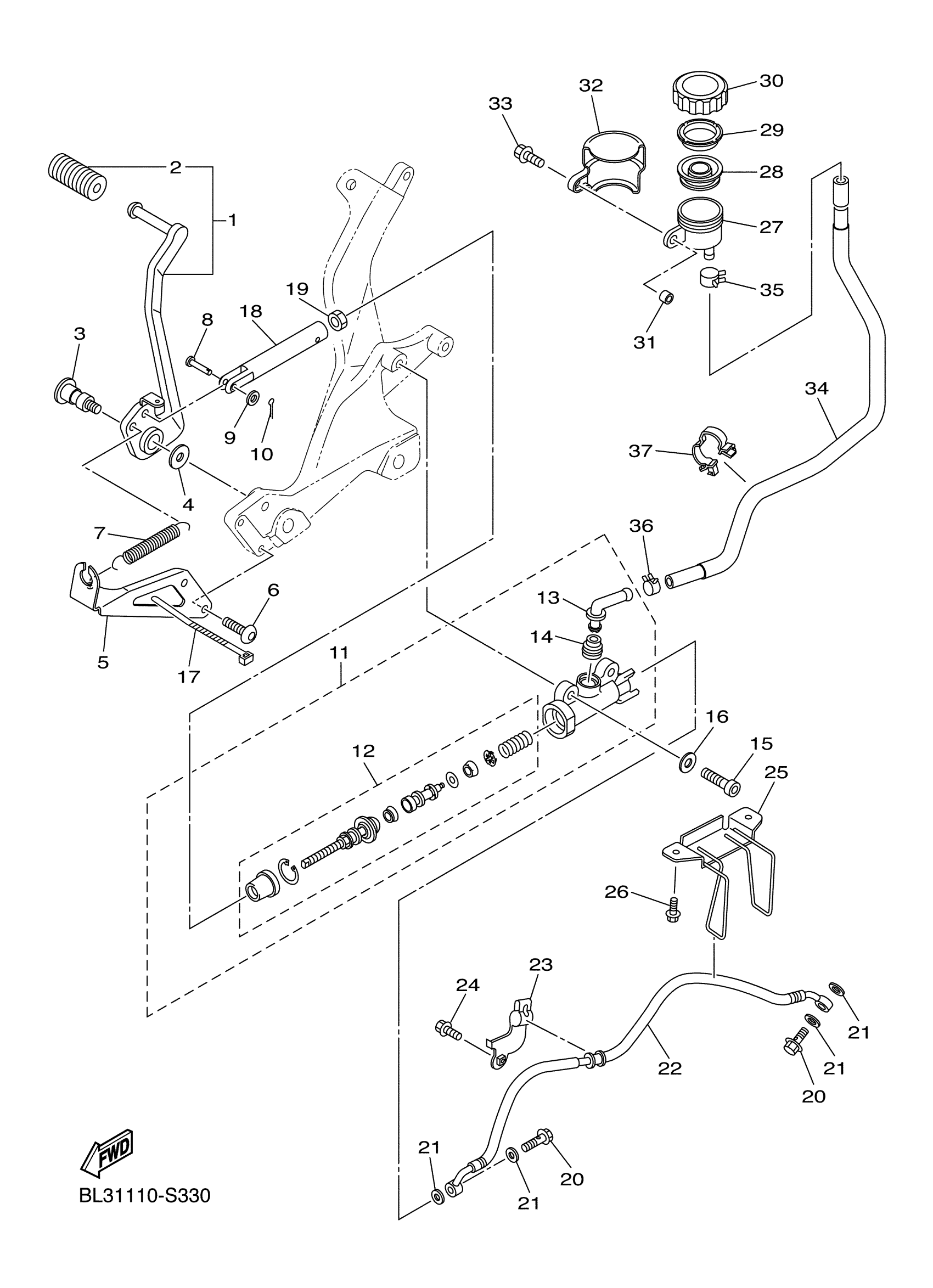

Yamaha SCR95HR (SR950) BL310 2017 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

BL3-27200-00-00

Unavailable

2

COVER, SHIFT PEDAL

5EB-18113-00-00

$7.99

3

BOLT

5XT-27434-10-00

$12.99

4

WASHER, PLATE (33N)

90201-094G1-00

$9.49

5

BRACKET 1

B33-27263-00-00

Unavailable

6

BOLT, BUTTON HEAD

92017-06010-00

$4.82

7

SPRING, TENSION

90506-16009-00

$5.60

8

PIN, CLEVIS (5X6)

91701-06018-00

$4.94

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

10

PIN, COTTER (648)

91490-20015-00

$2.20

11

RR. MASTER CYLINDE

B33-2583V-00-00

Unavailable

12

CYLINDER KIT, MASTER

1TP-25808-00-00

$58.99

13

JOINT

B33-2582A-00-00

Unavailable

14

O-RING

4BP-2585F-01-00

Unavailable

15

BOLT, SOCKET

91317-08025-00

$8.49

16

WASHER, PLATE (22K)

90201-082H0-00

Unavailable

17

BAND

1UA-82591-00-00

Unavailable

18

JOINT

B33-27222-00-00

Unavailable

19

NUT(6TA)

95337-08600-00

Unavailable

20

BOLT, UNION

90401-10020-00

Unavailable

21

GASKET

90430-10005-00

Unavailable

22

HOSE, BRAKE 4

1TP-2581J-01-00

Unavailable

23

HOLDER, BRAKE HOSE 5

1TP-2588F-00-00

Unavailable

24

BOLT, FLANGE

95022-06016-00

Unavailable

25

HOLDER, BRAKE HOSE

1TP-2587A-00-00

Unavailable

26

BOLT, FLANGE

95022-06016-00

Unavailable

27

TANK, RESERVOIR

31A-25894-10-00

Unavailable

28

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

29

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

30

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

31

COLLAR

90387-06072-00

Unavailable

32

COVER, RESERVOIR TANK

4NK-25888-00-00

Unavailable

33

BOLT, FLANGE

95817-06020-00

Unavailable

34

HOSE, RESERVOIR

B33-25895-00-00

Unavailable

35

CLIP (5K4)

90467-14057-00

Unavailable

36

CLIP (7K7)

90467-11044-00

Unavailable

37

CLAMP(4NX)

90464-23239-00

Unavailable
