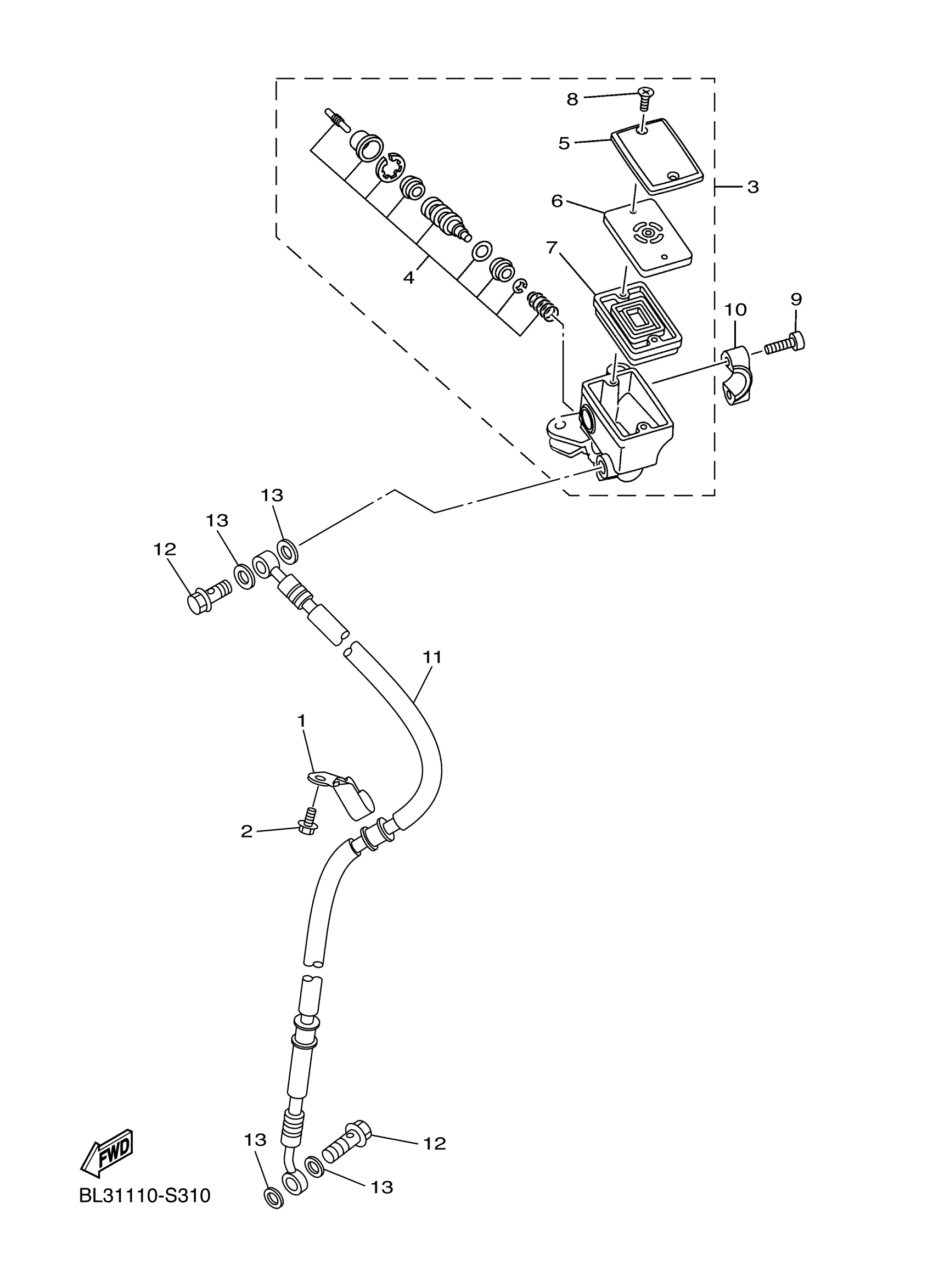

Yamaha SCR95HR (SR950) BL310 2017 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

HOLDER, BRAKE HOSE

1TP-25886-00-00

Unavailable

2

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

3

MASTER CYLINDER SU

B33-2580A-00-00

Unavailable

4

CYLINDER KIT, MAST

4B5-25807-00-00

Unavailable

5

CAP, RESERVOIR

5VS-25852-00-00

Unavailable

6

BUSH,DIAPHRAGM

5VS-25855-00-00

$16.49

7

GASKET, DIAPHRAGM

20S-25854-00-00

$28.99

8

SCREW

5VS-2589H-00-00

$4.11

9

BOLT

5VS-26332-00-00

$4.42

10

BRACKET, MASTER CYLINDER

5VS-25867-00-00

$36.99

11

HOSE, BRAKE 1

BL3-25872-00-00

Unavailable

12

BOLT, UNION

90401-10020-00

$9.49

13

GASKET

90430-10005-00

$9.49
