2017 Yamaha SR950 (SCR95HR) Front Fork Diagram

← All diagrams

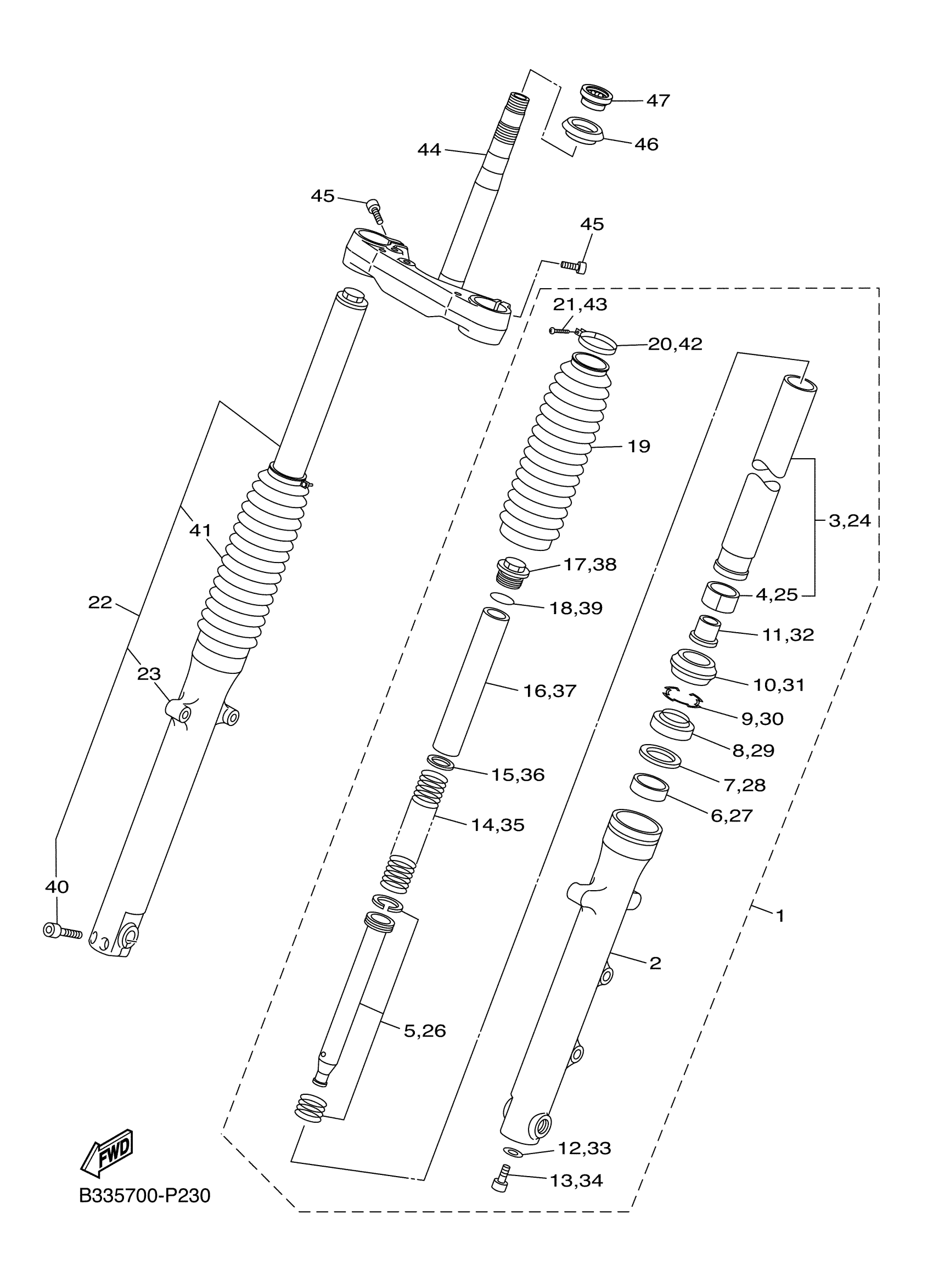

Find the part on the Front Fork diagram for your 2017 Yamaha SR950 (SCR95HR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha SR950 (SCR95HR) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

BL3-23102-00-00

—
Out of stock

2

TUBE, OUTER (L.H)

B33-23126-00-00

—
Out of stock

3

INNER TUBE COMP.1

BL3-23110-00-00

—
Out of stock

4

PISTON, FRONT FORK

5BN-23171-00-00

1

$19.48

In stock

5

CYLINDER COMP., FRONT FORK

BL3-23170-00-00

—
Out of stock

6

METAL, SLIDE 1

4FM-23125-40-00

1

$28.47

In stock

7

WASHER, OIL SEAL

36Y-23146-10-00

1

$22.06

In stock

8

OIL SEAL

4EB-23145-01-00

1

$24.25

In stock

9

CLIP, OIL SEAL

26H-23156-00-00

1

$6.62

In stock

10

SEAL, DUST

4EB-23144-00-00

1

$19.48

In stock

11

SPINDLE, TAPER

4YR-23173-00-00

—

$32.10

In stock

12

GASKET

509-23158-L0-00

1

$14.34

In stock

13

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1

$7.65

In stock

14

SPRING, FRONT FORK

B33-23141-00-00

—
Out of stock

15

WASHER, SPRING UPPER

4DW-23149-40-00

1

$6.43

In stock

16

SPACER

22B-23118-20-00

—
Out of stock

17

BOLT, CAP

1D0-23111-00-00

—

$43.83

In stock

18

O-RING

1TP-23188-01-00

—

$4.77

In stock

19

BOOT

B33-23191-00-00

—
Out of stock

20

BAND

43M-23192-L0-00

—
Out of stock

21

SCREW, PAN HEAD

98517-04016-00

—
Out of stock

22

FRONT FORK ASSY (R.H)

BL3-23103-00-00

—
Out of stock

23

TUBE, OUTER

B33-23136-00-00

—
Out of stock

24

INNER TUBE COMP.1

BL3-23110-00-00

—
Out of stock

25

PISTON, FRONT FORK

5BN-23171-00-00

1

$19.48

In stock

26

CYLINDER COMP., FRONT FORK

BL3-23170-00-00

—
Out of stock

27

METAL, SLIDE 1

4FM-23125-40-00

1

$28.47

In stock

28

WASHER, OIL SEAL

36Y-23146-10-00

1

$22.06

In stock

29

OIL SEAL

4EB-23145-01-00

1

$24.25

In stock

30

CLIP, OIL SEAL

26H-23156-00-00

1

$6.62

In stock

31

SEAL, DUST

4EB-23144-00-00

1

$19.48

In stock

32

SPINDLE, TAPER

4YR-23173-00-00

—

$32.10

In stock

33

GASKET

509-23158-L0-00

1

$14.34

In stock

34

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1

$7.65

In stock

35

SPRING, FRONT FORK

B33-23141-00-00

—
Out of stock

36

WASHER, SPRING UPPER

4DW-23149-40-00

1

$6.43

In stock

37

SPACER

22B-23118-20-00

—
Out of stock

38

BOLT, CAP

1D0-23111-00-00

—

$43.83

In stock

39

O-RING

1TP-23188-01-00

—

$4.77

In stock

40

BOLT, SOCKET

91314-08035-00

—
Out of stock

41

BOOT

B33-23191-00-00

—
Out of stock

42

BAND

43M-23192-L0-00

—
Out of stock

43

SCREW, PAN HEAD

98517-04016-00

—
Out of stock

44

UNDER BRACKET COMP.

1TP-23340-01-00

—

$673.99

In stock

45

BOLT,SOCKET

91314-10020-00

—

$6.68

In stock

46

SEAL, STEERING

3FV-23462-00-00

—

$21.37

In stock

47

BEARING(3FV)

93399-99932-00

—

$55.01

In stock

48

FORK SEAL KIT (TWO FORKS)

4EB-W003B-00-00

—

$33.25

In stock
