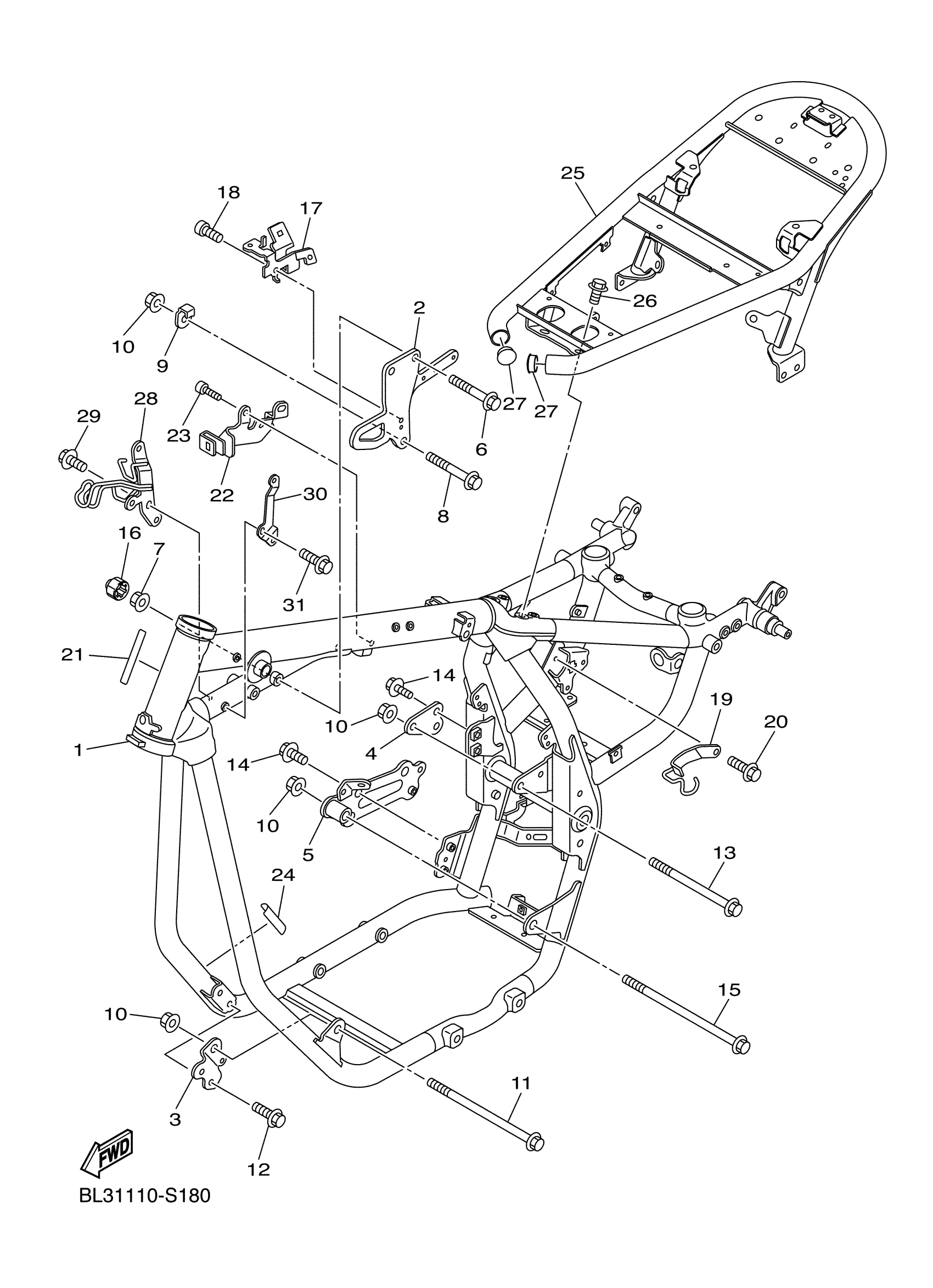

Yamaha SCR95HR (SR950) BL310 2017 FRAME Diagram

#

Description

Price

1

FRAME COMP.

BL3-21110-00-00

Unavailable

2

STAY, ENGINE 3

1TP-21317-00-00

Unavailable

3

STAY 3

1TP-2122C-00-00

Unavailable

4

STAY, ENGINE 5

1TP-21314-00-00

Unavailable

5

STAY, REAR

1TP-2116F-00-00

Unavailable

6

BOLT, FLANGE

90105-10434-00

Unavailable

7

NUT, SELF-LOCKING

90185-10008-00

$7.49

8

BOLT, FLANGE

90105-12090-00

Unavailable

9

PLATE

1TP-21183-00-00

Unavailable

10

NUT, SELF-LOCKING

90185-12002-00

$12.49

11

BOLT, FLANGE

90105-12088-00

Unavailable

12

BOLT, WASHER BASED

90105-10003-00

Unavailable

13

BOLT, FLANGE

90105-12091-00

Unavailable

14

BOLT, FLANGE

90105-10428-00

Unavailable

15

BOLT, FLANGE

90105-12086-00

$35.99

16

CAP

5YU-2143A-00-00

Unavailable

17

BRKT

1TP-2115C-00-00

Unavailable

18

BOLT

91317-06008-00

Unavailable

19

GUIDE, CABLE

1TP-21288-00-00

Unavailable

20

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

21

PROTECTOR

3D8-2117G-00-00

Unavailable

22

BRACKET, BATTERY BOX

1TP-21149-01-00

Unavailable

23

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

24

SEAL

5PX-21268-00-00

Unavailable

25

REAR FRAME COMP.

BL3-21190-00-00

Unavailable

26

BOLT, FLANGE

95812-10016-00

Unavailable

27

PLUG (7Y6)

90338-21145-00

Unavailable

28

HOLDER

1TP-26475-00-00

Unavailable

29

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

30

HOLDER, 2

BP6-26481-00-00

Unavailable

31

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable
