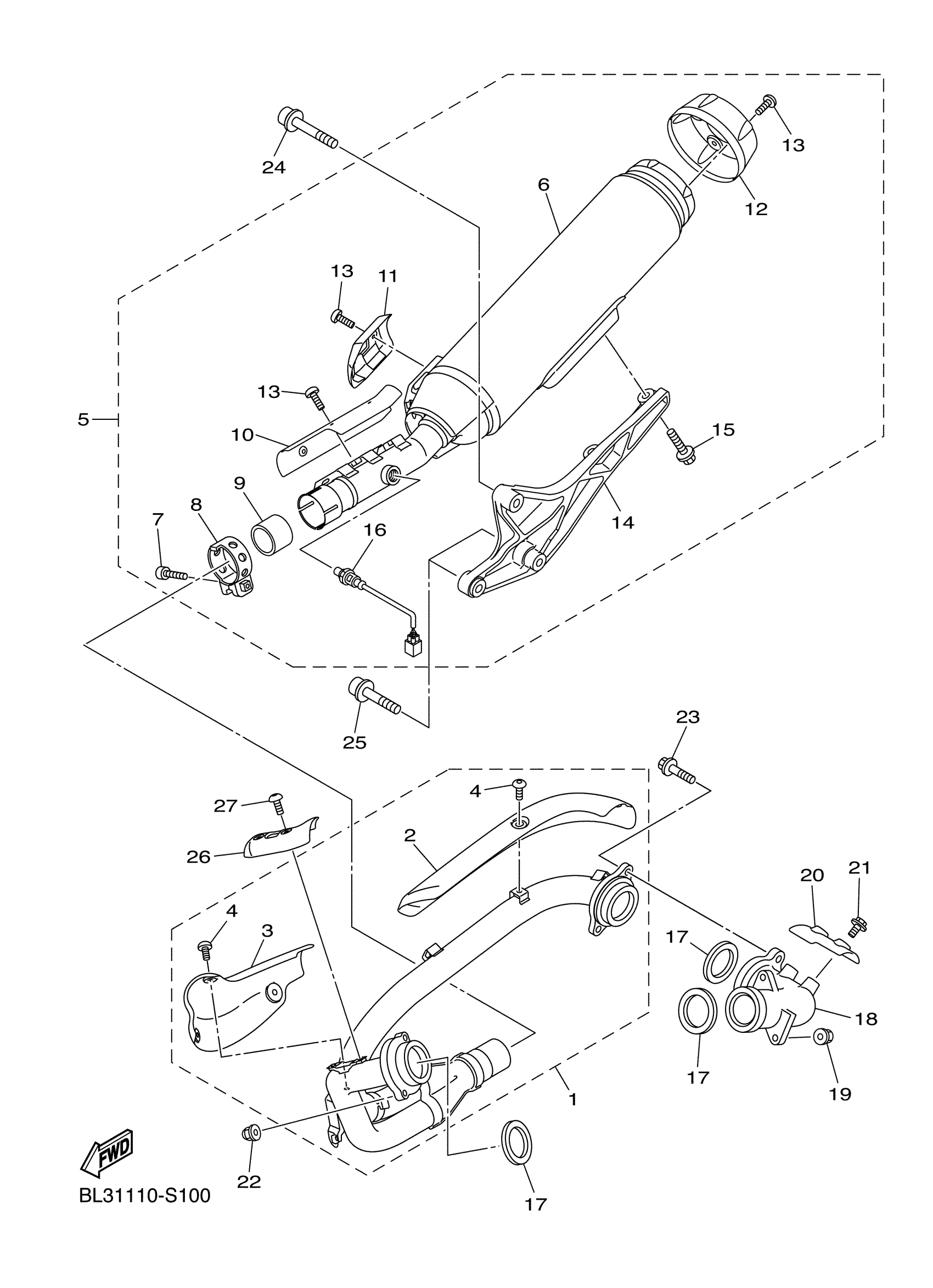

Yamaha SCR95HR (SR950) BL310 2017 EXHAUST Diagram
#
Description
Price
1
EXHAUST PIPE ASSY 1
1TP-14610-10-00
Unavailable
3
PLATE, PROTECTOR 3
1TP-1465U-00-00
Unavailable
5
MUFFLER ASSY 1
BL3-14710-01-00
Unavailable
6
MUFFLER 1
BL3-14711-01-00
Unavailable
8
BAND, MUFFLER
5S7-14715-00-00
Unavailable
10
PROTECTOR, MUFFLER 2
BL3-14728-00-00
Unavailable
11
PROTECTOR, MUFFLER 4
1TP-14748-00-00
Unavailable
12
CAP
1TP-14799-01-00
Unavailable
14
STAY, MUFFLER 2
BL3-14772-00-00
Unavailable
16
SENSOR
5D1-8592A-00-00
Unavailable
17
GASKET, EXHAUST PIPE
3EG-14613-00-00
Unavailable
18
JOINT, EXHAUST 1
1TP-14615-00-00
Unavailable
19
NUT, CROWN
90176-08012-00
Unavailable
20
PLATE, SILENCER 3
1TP-1468W-00-00
Unavailable
21
BOLT, FLANGE(7HT)
95880-06010-00
Unavailable
22
NUT, CROWN
90176-08006-00
Unavailable
23
BOLT, FLANGE
90105-08251-00
Unavailable
24
BOLT, HEXAGON SOCKET HEAD
90110-10042-00
Unavailable
25
BOLT, HEXAGON SOCKET HEAD
90110-10038-00
Unavailable
26
PLATE, PROTECTOR 1
1TP-1465R-01-00
Unavailable
