- SCOUT SIXTY ALL OPTIONS (R06) - N16MSA11/MSB11
ELECTRICAL, COMPONENTS - N16MSA11/MSB11 ALL OPTIONS (200025)

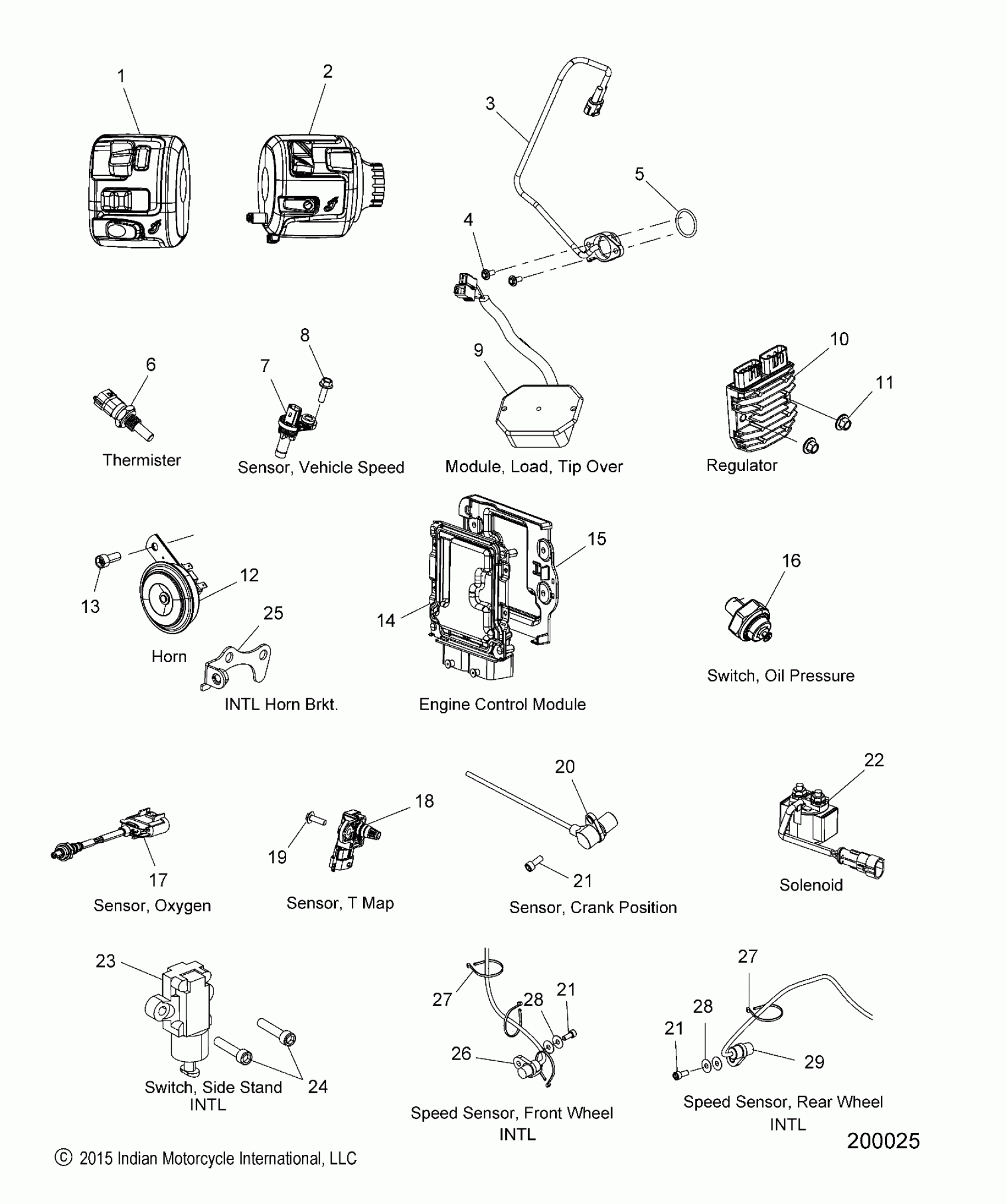

Polaris SCOUT SIXTY ALL OPTIONS (R06) - N16MSA11/MSB11 ELECTRICAL, COMPONENTS - N16MSA11/MSB11 ALL OPTIONS (200025) Diagram
#
Description
Price
1
CUBE, SWITCH, LH
4014449
Unavailable
2
CUBE, SWITCH,RH
4014450
Unavailable
3
SWITCH, GEAR INDICATOR, N/OD
4013956
Unavailable
4
SCREW
7518338
$4.79
5
O-RING
5412530
$1.59
6
SENSOR-THERMISTER
4010644
$87.13
7
SENSOR, VEHICLE SPEED
4011884
Unavailable
8
SCREW
7517750
Unavailable
9
MODULE, LOAD/TIP OVER
4015167
Unavailable
10
REGULATOR, 3PH
4012941
$227.99
11
Nut
7710495
$4.79
12
HORN, TRUMPET, LOW TONE
4015254
Unavailable
13
SCREW
7517410
Unavailable
14
ECM, NO START, ME17 [SVC]
4014125
$694.99
15
MOUNT, ECM
5451843
Unavailable
16
SWITCH, OIL PRESSURE
4012668
Unavailable
17
SENSOR, OXYGEN
4016021
$159.99
18
SENSOR-TMAP DSS3-TF
2411528
$93.08
19
SCREW
7517277
$3.19
20
SENSOR, CRANK POSITION
4015068
$107.99
21
SCREW
7517272
$7.19
21
SCREW
7517272
$7.19
21
SCREW
7517272
$7.19
22
SOLENOID
4012017
$75.99
23
SWITCH, SIDE STAND, PLUNGER [INTL. ONLY]
4014289
Unavailable
24
SCREW [INTL. ONLY]
7516610
$3.99
25
BRKT., HORN [INTL. ONLY]
5260588
Unavailable
26
SENSOR, WHEEL SPEED [INTL. ONLY]
4013251
Unavailable
27
CABLE-TIE,DIA12-50MM,WTHR-RES. [INTL. ONLY]
7080138
$2.41
27
CABLE-TIE,DIA12-50MM,WTHR-RES. [INTL. ONLY]
7080138
$2.41
28
SHIM, SENSOR, ABS [INTL. ONLY]
5255106
Unavailable
28
SHIM, SENSOR, ABS [INTL. ONLY]
5255106
Unavailable
29
SENSOR, WHEEL SPEED, REAR [INTL. ONLY]
4014216
Unavailable
