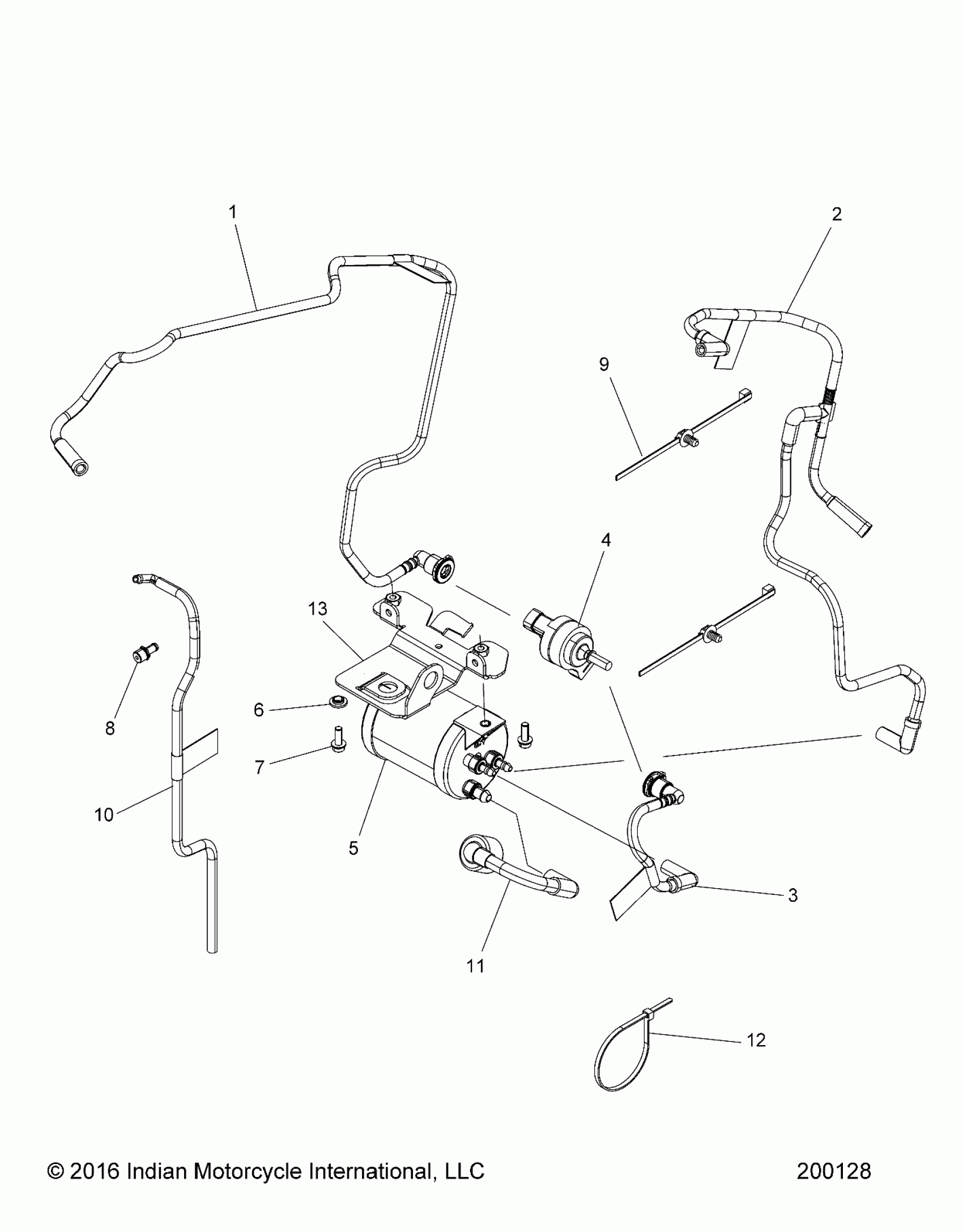

Polaris SCOUT SIXTY ALL OPTIONS (R05) - N17MSA11/MSB11/N172SA11 FUEL SYSTEM, EVAP SYSTEM, CALI/INTL - N17MSA11/MSB11 (200128) Diagram

#

Description
Price

1

LINE, PURGE TO TB

5451674

$62.92

2

LINE, VENT TO CANISTER

5450691

$77.44

3

LINE, CANISTER TO PURGE

5450692

$43.56

4

VALVE, CANISTER PURGE

4011303

$74.99

5

FILTER, ACTIVATED CHARCOAL

2521752

$142.84

6

BUSHING, CARBON CAN

5139063

$6.35

7

SCREW

7518803

$3.97

8

FITTING, EVAP LINE

5138799

$14.51

9

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

10

LINE-VENT TO GROUND

5453068

$40.46

11

TUBE-VENT, CANISTER

5453432

$43.56

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

ASM-BRKT, MNT, LWR

1022286

$44.99
