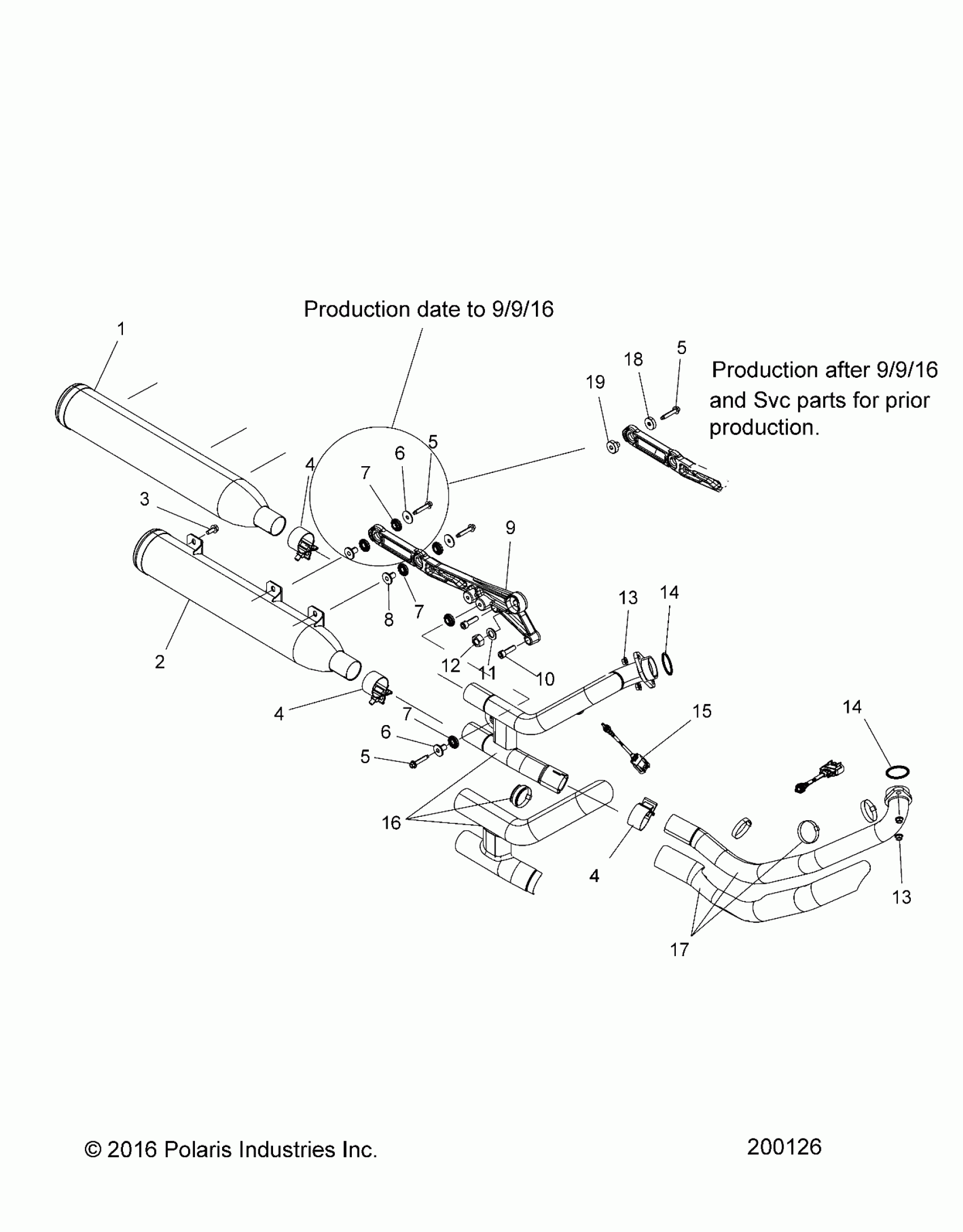

Polaris SCOUT SIXTY ALL OPTIONS (R05) - N17MSA11/MSB11/N172SA11 ENGINE, EXHAUST ASM. - N17MSA11/MSB11 ALL OPTIONS (49INDIANEXHAUST15SCOUT) Diagram

#

Description
Price

1

SCR-TXBH-M6X1.0X8 8.8

7519975

$3.17

1

ASM., MUFFLER, UPPER, CHROME

1262908-156

$509.99

1

ASM., MUFFLER, UPPER, DC INTL, CHROME [INTL]

1262996-156

$659.99

1

TIP-MUFFLER

5252841

Unavailable

2

SCR-TXBH-M6X1.0X8 8.8

7519975

$3.17

2

ASM., MUFFLER, LOWER, DC INTL, CHROME [INTL]

1262997-156

$659.99

2

ASM., MUFFLER, LOWER, CHROME

1262907-156

$509.99

2

TIP-MUFFLER

5252841

Unavailable

3

SCREW-M8x20 HXFL

7520031

Unavailable

4

CLAMP, EXHAUST, SS

7081179

$43.65

4

CLAMP, EXHAUST, SS

7081179

$43.65

4

CLAMP, EXHAUST, SS

7081179

$43.65

5

SCREW-M8x45 DOG PT

7520549

$3.97

5

SCREW-M8x45 DOG PT

7520549

$3.97

5

SCREW-M8x45 DOG PT

7520549

$3.97

6

WASHER

7556219

$6.35

6

WASHER

7556219

$6.35

7

ISOLATOR-EXHAUST

5415881

$6.46

7

ISOLATOR-EXHAUST

5415881

$6.46

7

ISOLATOR-EXHAUST

5415881

$6.46

8

BUSHING-FLANGE

5633598

Unavailable

9

MOUNT, EXHAUST

5633742-658

$145.22

10

SCREW-M10 SH

7519959

$1.59

11

WASHER

7556236

$7.14

12

NUT

7540001

$4.76

13

NUT

7547014

$7.84

13

NUT

7547014

$7.84

14

GASKET, EXHAUST SEALING

5246008

$19.84

14

GASKET, EXHAUST SEALING

5246008

$19.84

15

SENSOR-OXYGEN [SEE ELECTRICAL COMPONENTS PAGE]

----

Unavailable

16

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.17

16

ASM., HEADPIPE, EXHAUST, REAR, CHROME

1262867-156

$624.99

17

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.17

17

ASM., HEADPIPE, EXHAUST, FRONT, CHROME

1263183-156

$479.99

18

SPACER-EXHAUST

5141244

$5.70

19

SPACER-SHOULDER, EXHAUST

5141245

$7.60
