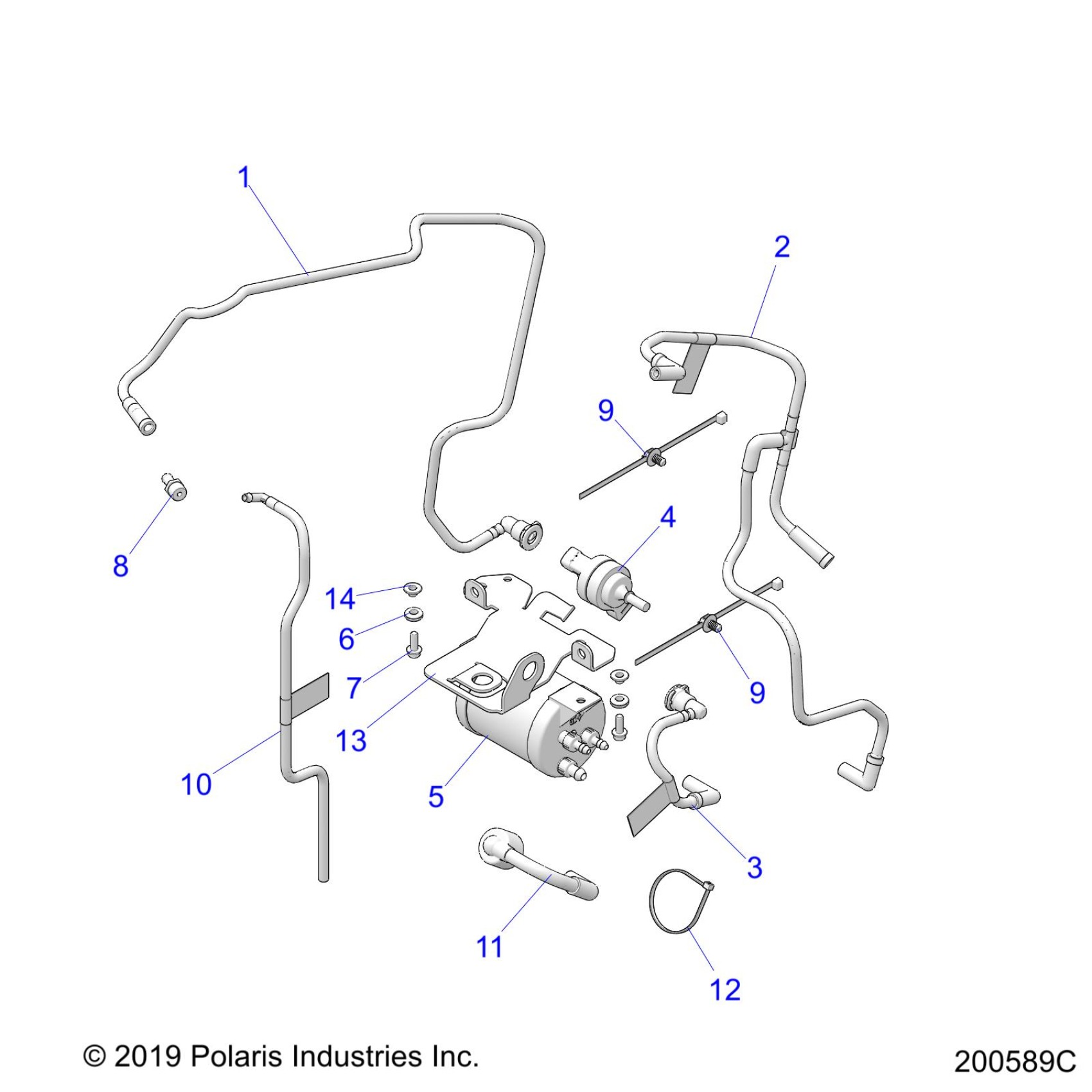

Polaris SCOUT SIXTY ALL OPTIONS (R03) - N21MSA11A3/A/B3/A/C3/A/E3/B11AA/BA/CA FUEL SYSTEM, EVAP SYSTEM, INTL - N21MSA11/MSB11 (200589C) Diagram

#

Description
Price

1

LINE, PURGE TO TB

5451674

$62.92

2

LINE, VENT TO CANISTER

5450691

$77.44

3

LINE, CANISTER TO PURGE

5450692

$43.56

4

VALVE, CANISTER PURGE

4011303

$74.99

5

CANISTER-CARBON

2522195

$93.08

6

GROMMET-SBR,9.5ODX7.1IDX5.2H

5417124

$6.35

7

SCREW

7518803

$3.97

8

FITTING, EVAP LINE

5138799

$14.51

9

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

9

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

10

LINE, VENT TO GROUND

5453067

$36.41

11

TUBE-VENT, CANISTER

5453432

$43.56

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

ASM-BRKT, MNT, LWR

1022286

$44.99

14

BSHG-FLG,6.40X7.14X5.16

5142977

$9.52
