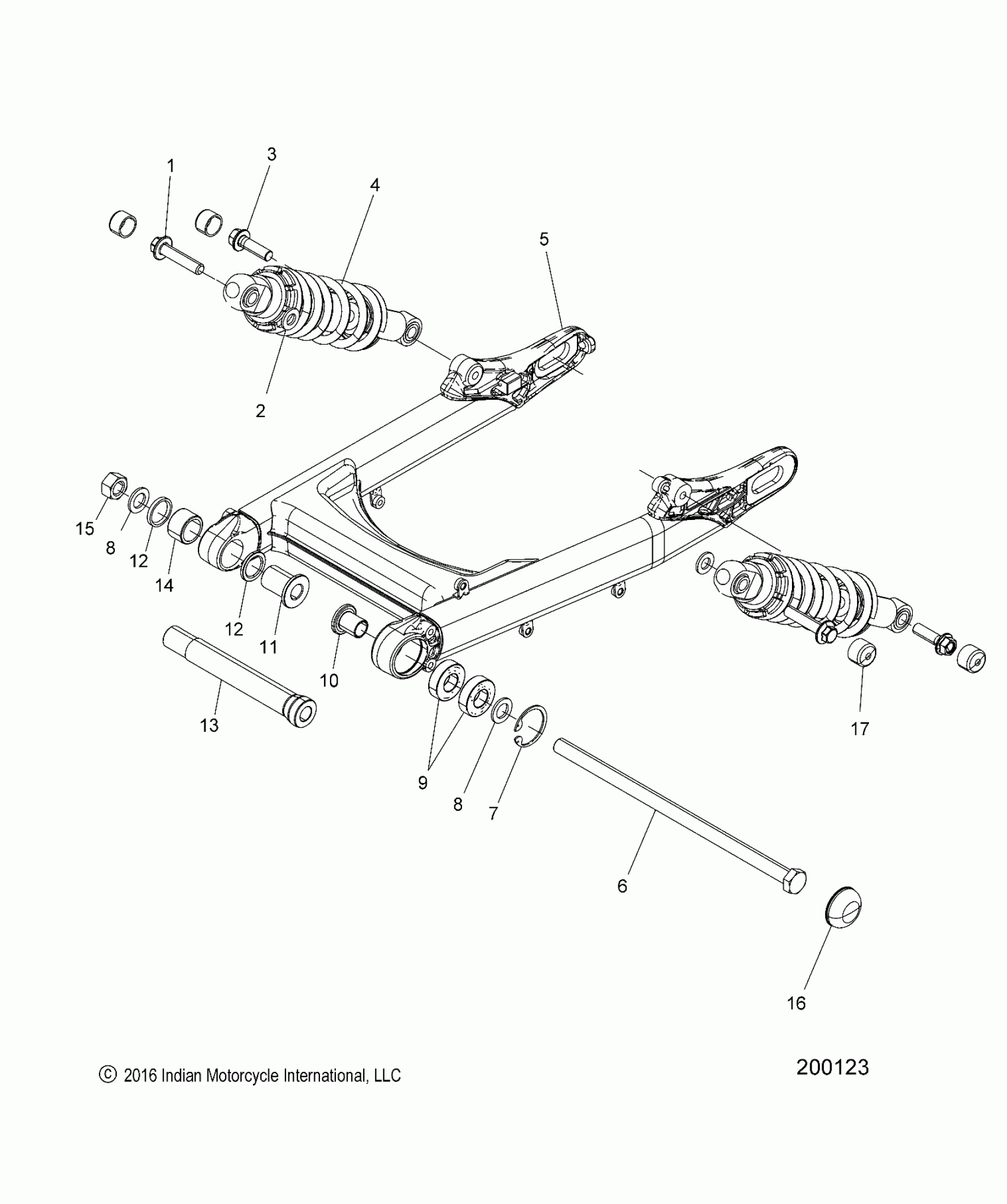

Polaris SCOUT SIXTY ALL OPTIONS (R01) - N182SA11EA/B/K/R/MSA11AB/R/BB/R/CB/R/EA/B/K/R/B11AA/K/BA/K/CA/K SUSPENSION, REAR ASM., SWING ARM AND SHOCKS - N18MSA11/MSB11 ALL OPTIONS (200123) Diagram

#

Description
Price

1

SCREW, HXFLG

7520166

$16.99

2

WASHER

7556287

$7.14

3

SCREW, HXFLG

7518878

Unavailable

4

COVER, SHOCK [INTL ONLY]

5415436

$24.27

4

ASM., SHOCK [INCL SPRING,RETAINER]

1543748-650

$358.24

4

ASM-DAMPER [SHOCK ONLY]

1543761

$304.98

4

SPRING-DUAL RATE, BLK

7044754-266

$145.22

4

RETAINER, SPRING

5263546

$55.56

5

ASM., SWINGARM [INCL. 7,9,12,14]

1824356

$369.99

5

ASM., SWINGARM [INCL. 7,9,12,14]

1824356

$369.99

6

SCREW, HH

7519929

$47.60

7

RING, RETAINING, INTERNAL

7670149

$7.14

8

WASHER

7556236

$7.14

9

BEARING, BALL

3514414

Unavailable

10

BUSHING, SWINGARM, BALL BRG.

5631478

Unavailable

11

BUSHING, SWINGARM

5141067

$20.22

12

SEAL

3610096

$11.90

12

SEAL

3610096

$11.90

13

PIVOT, SWINGARM

5140159

$36.41

14

BEARING, NEEDLE ROLLER

3514413

Unavailable

15

NUT

7540001

$4.76

16

CAP-SWINGARM

5415909

Unavailable

17

CAP-BOLT HEAD [INTL ONLY]

5415562

$8.73
