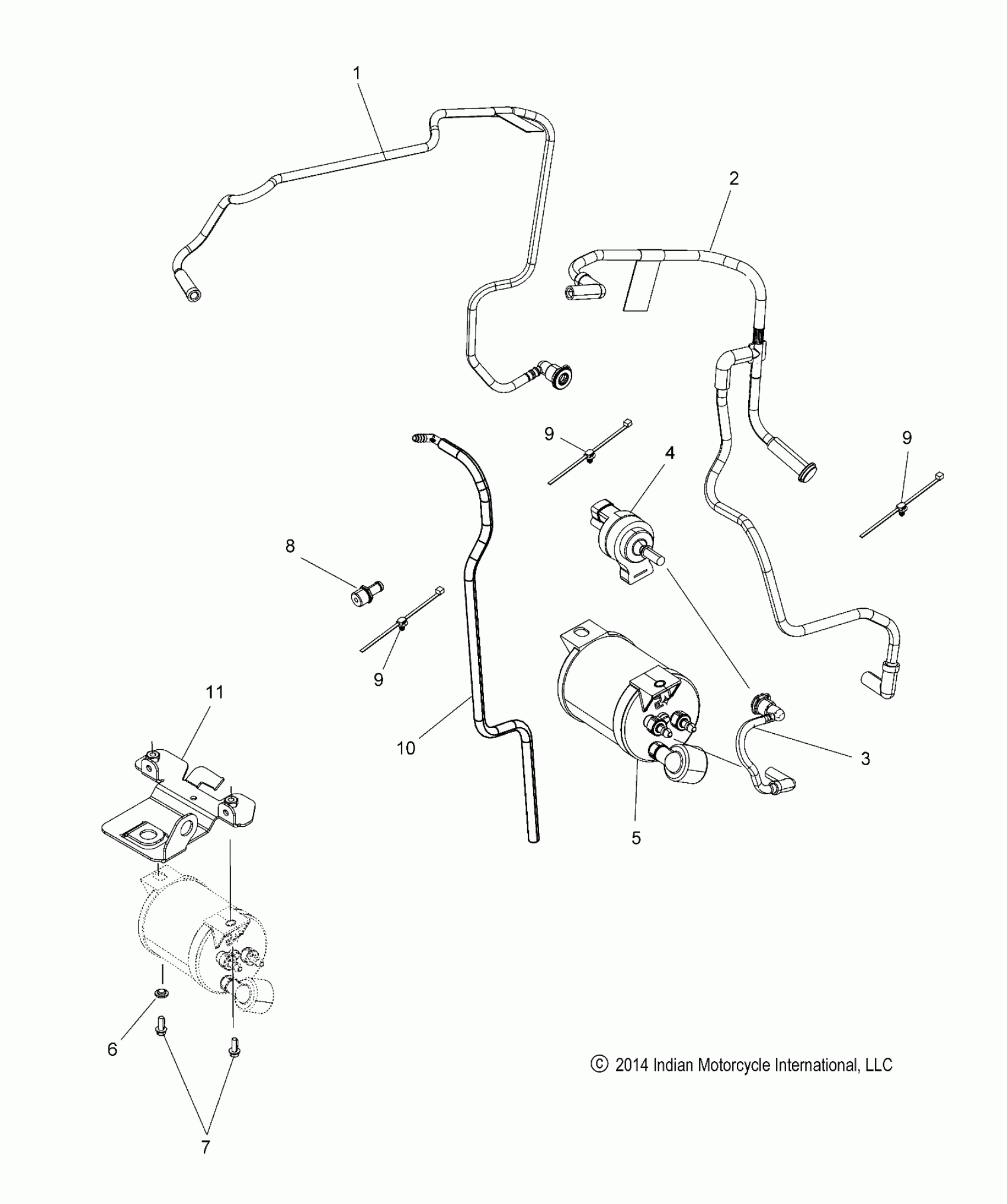

Polaris SCOUT - N15MSA00AA/AB/AC/AE FUEL SYSTEM, EVAP SYSTEM, CALIFORNIA ONLY - N15MSA00AA/AB/AC/AE (49INDIANEVAP15SCOUT) Diagram

#

Description
Price

1

LINE, PURGE TO TB

5451674

$62.92

2

LINE, VENT TO CANISTER

5450691

$77.44

3

LINE, CANISTER TO PURGE

5450692

$43.56

4

VALVE, CANISTER PURGE

4011303

$74.99

5

FILTER, ACTIVATED CHARCOAL

2521425

$142.84

6

BUSHING, CARBON CAN

5139063

$6.35

7

SCREW

7518803

$3.97

8

FITTING, EVAP LINE

5138799

$14.51

9

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

9

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

9

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

10

LINE, VENT TO GROUND

5450690

Unavailable

11

BRKT., MOUNT, LOWER

1021210

$40.46
